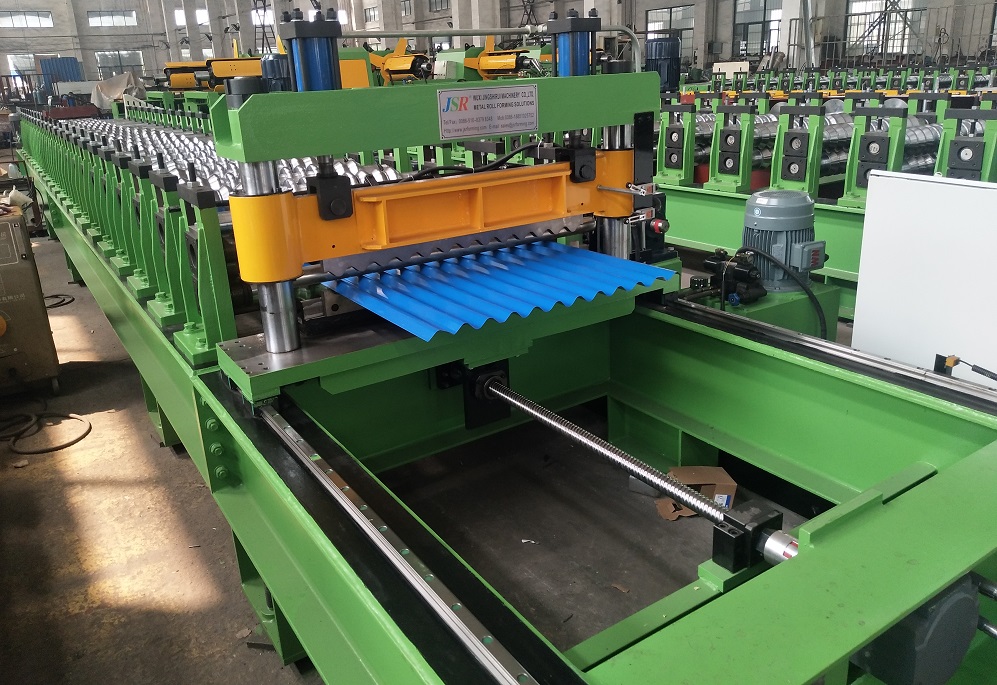

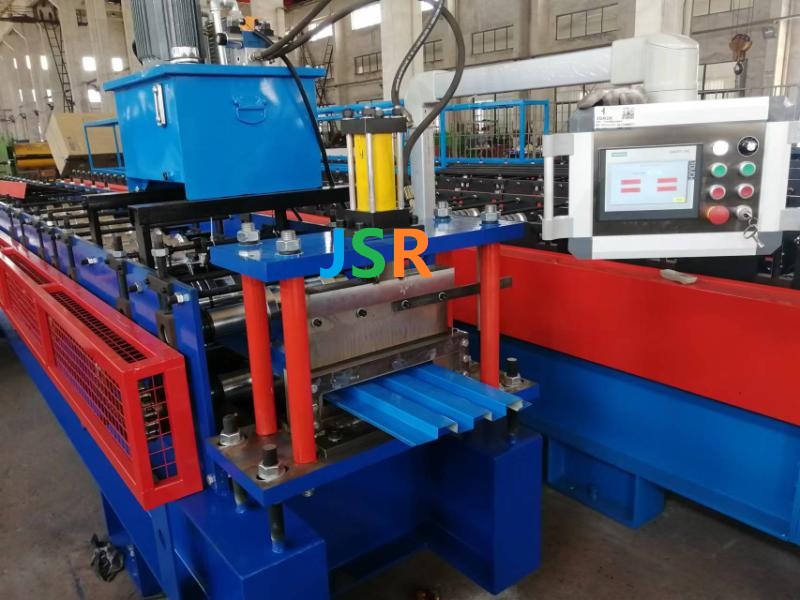

Corrugated Sheet Forming Machine With Guide Pillar

Facebook
Twitter
LinkedIn

Description

Corrugated Sheet Roll Forming Machine can make usual thickness 0.3-0.7mm, soft material, machine can also design for thin material 0.18-0.25mm or hard material. our corrugate machines are already in Australia, Philippines,Bengal, Malawi, Mexico,Honduras, Guatemala, Colombia……



Standard roll forming machines component(working speed about 15-20m/min): 7 ton manual decoiler, forming system with post cut, hydraulic station, PLC controller, run out table without power

YouTube player

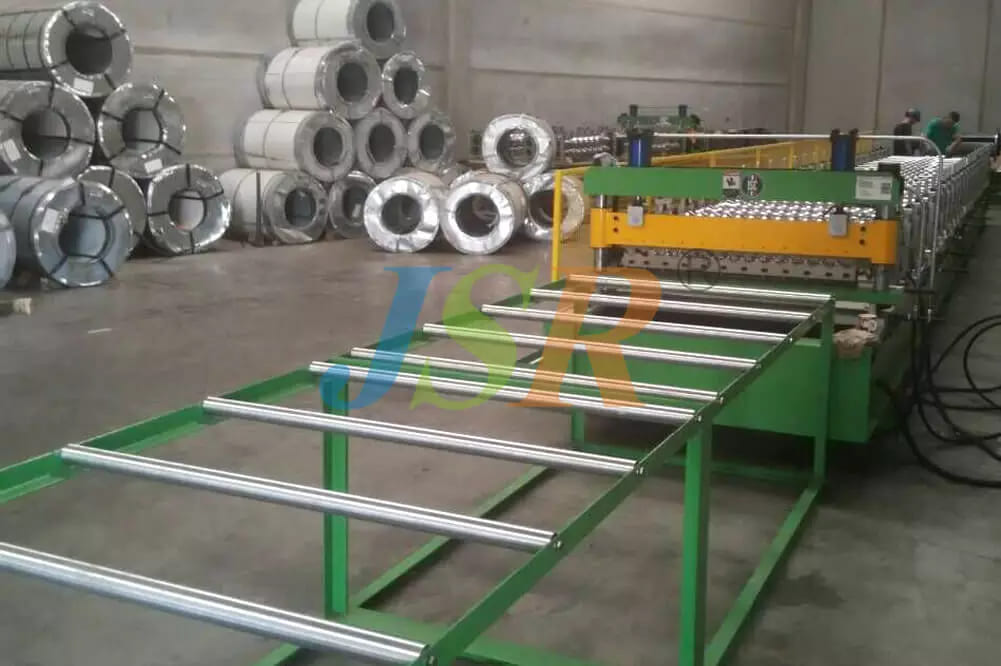

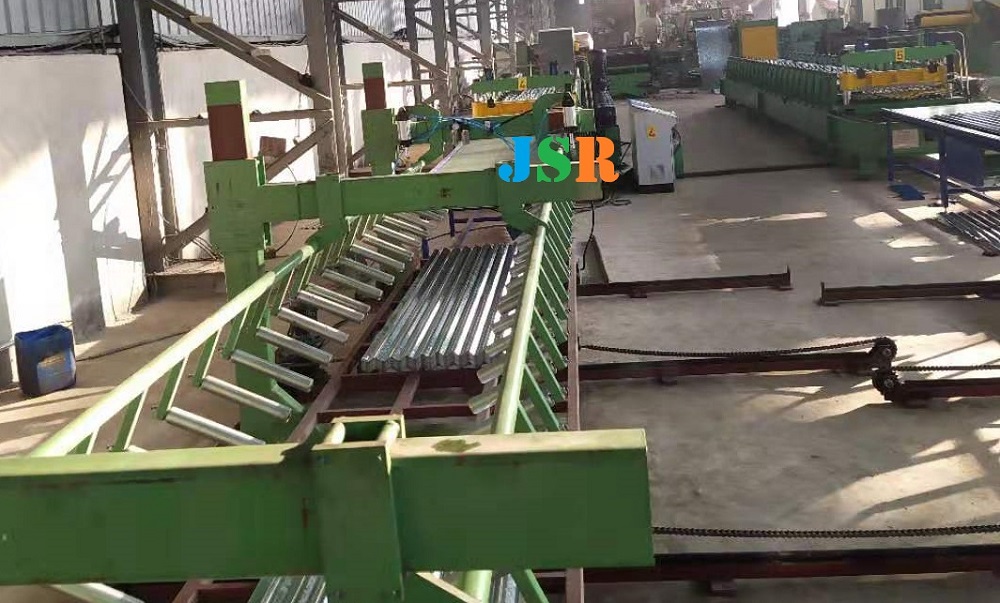

Full automatical forming machine component(working speed up to 60m/min):  hydraulic decoiler, forming system with post cut, hydraulic station, PLC controller, automatic stacker

YouTube player

Roll forming line for roof panel is widely used to produce roofs and walls of workshops, warehouses and steel structure buildings, provided with high reliability and durability,advantage of easy installation and low cost.

here is mini wave forming machine for fence, or mini corrugate sheet forming machine

YouTube player

Specifications

Technical Details

Machine Specifications
WeightAbout 7500kgs
SizeAbout 10m x 1.7m x 1.5m (length x width x height)
ColorMain color: blue
Warning color: yellow
Suitable Raw Material
MaterialColored Steel Coils
Thickness0.3-0.7mm
Coil width960mm
Yield Strength550Mpa
Main Technical Parameters
Quantity of forming rollers stations20-22

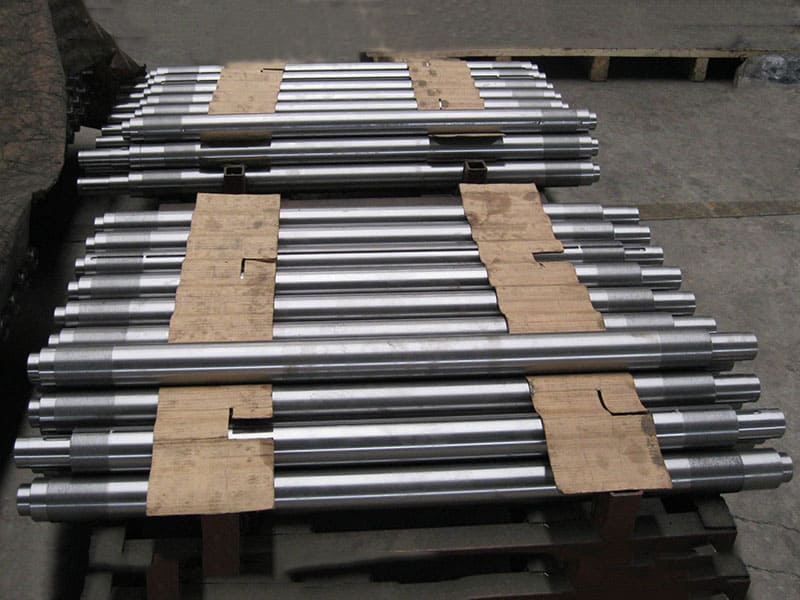

Diameter of forming rollers shafts75mm
Roll Forming Speed15-20m/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment

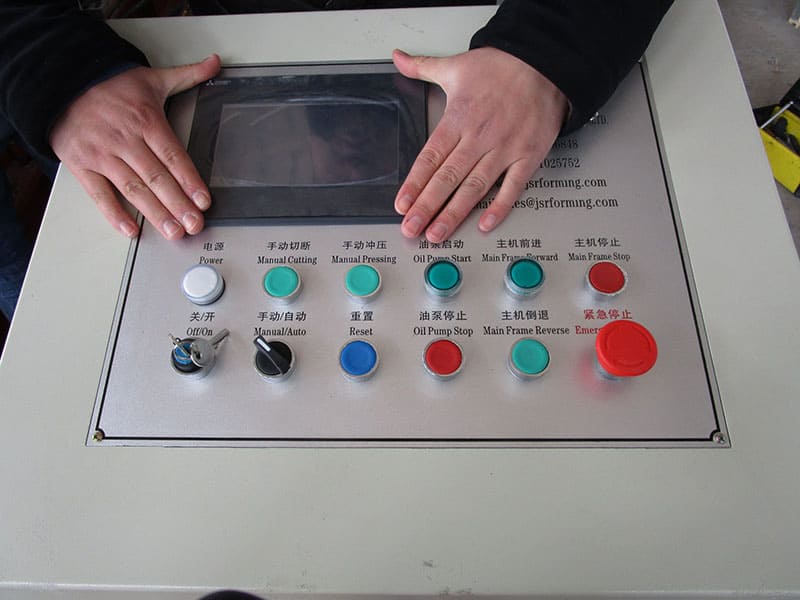

Controlling systemPLC and Converter
Electric Power requirementMain motor power: 7.5kw
Hydraulic unit motor power: 3kw
Electric voltageAccording to customer’s requirement

Corrugated Sheet Forming Machine With Guide Pillar

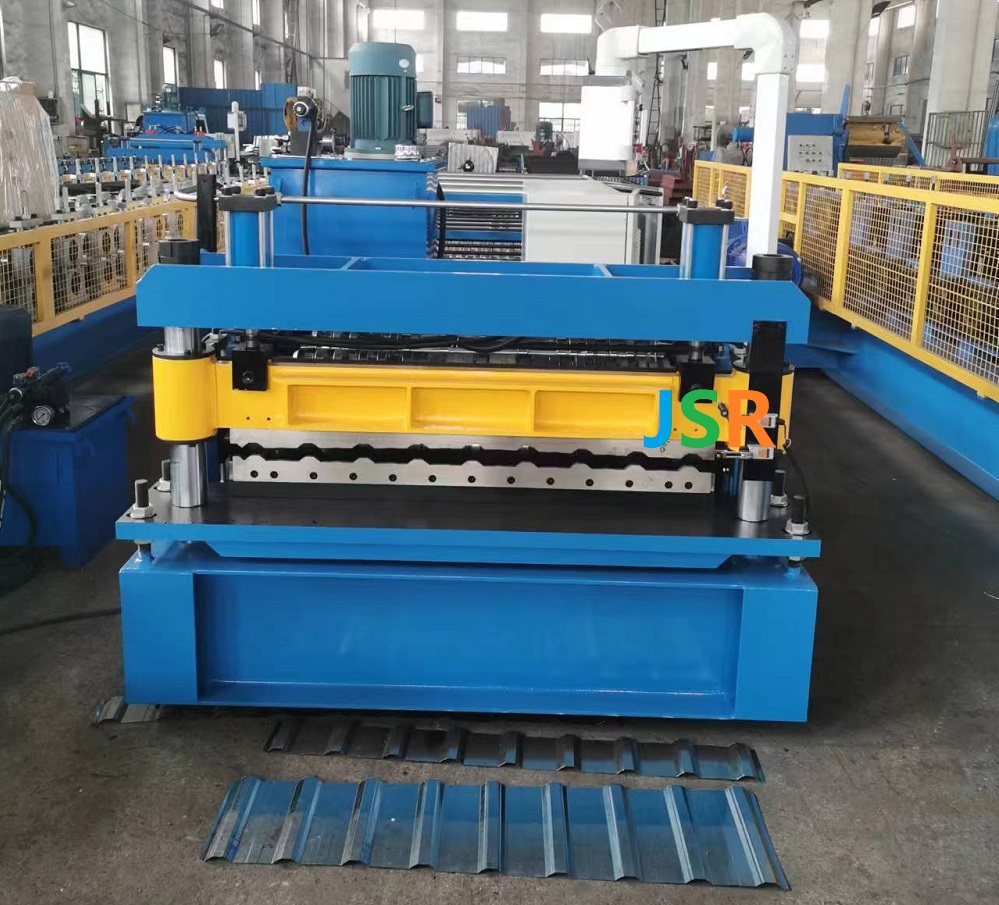

  • Profile drawing                                                        End product sample
  • Layout drawing of machine for reference



APPLICATION

JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced

Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut – run out
