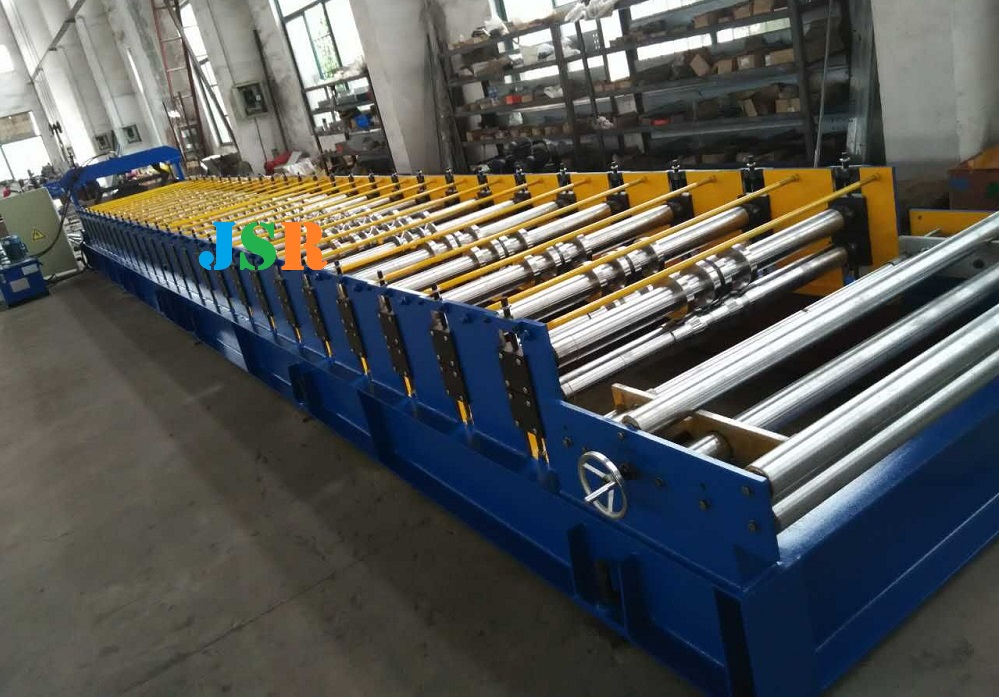

R101 Trapezoidal Sheet Forming Machine



R101 Trapezoidal Sheet Forming Machine make trapezoidal laminas with TERNIUM stardard .

popular Trapezoidal Sheet Forming Machine in Mexico, Costa rica, Hondulas, Guatemala, Colombia……

Feeding width 1220mm for R101 and 914mm for R72, ( only feed different width raw material, no need to change machine)

Thickness 0.3-0.7mm or gauge 23-30(to produce different thickness, no need to change machine)

Yield strength:235Mpa-550Mpa

Any length product can be manufacture on this roll forming machine.

Main components of roll forming machine

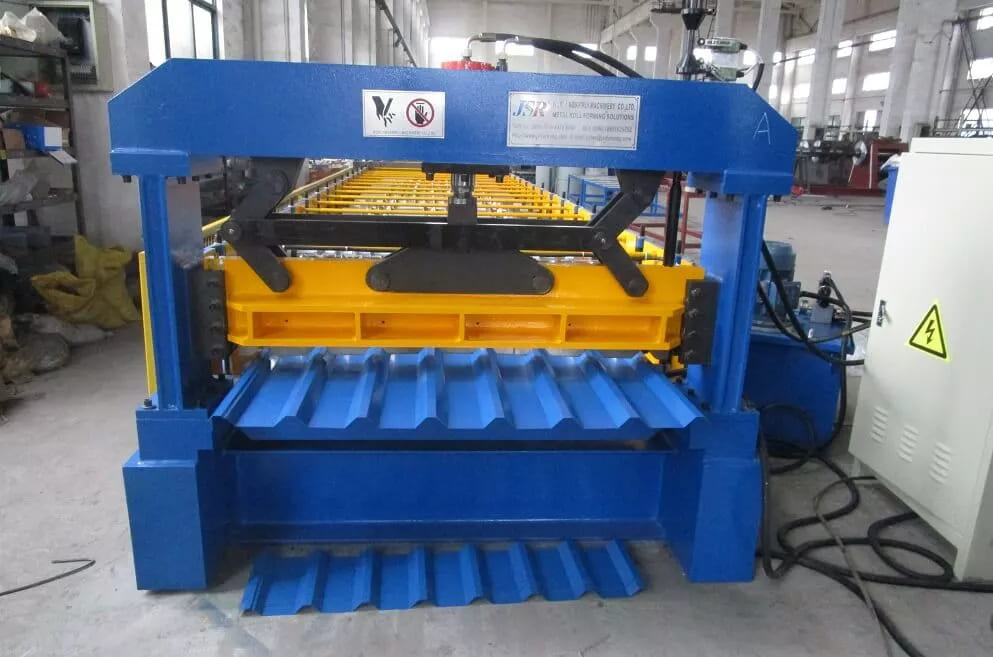

5 ton manual decoiler, forming machine with post cut, PLC controller , hydraulic station, run out table

Main features of forming machine

mitsubishi or siemens control system to automatical produce with high precision

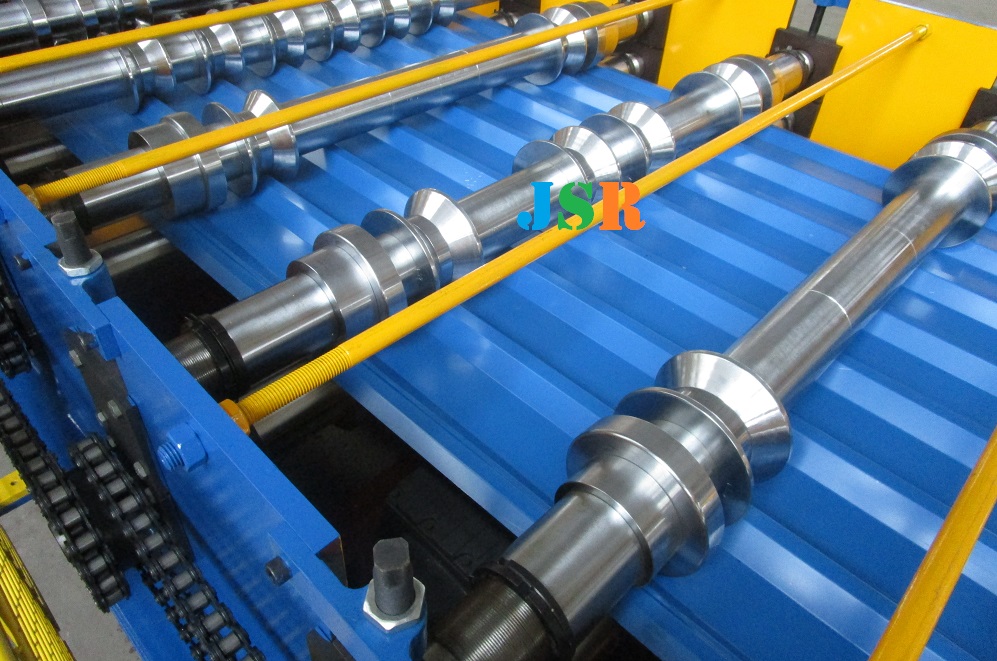

26 roller stations to garantee the flat and precise of final r101 trapezoidal laminas

forming machine weight about 11 tons

Easy installation:

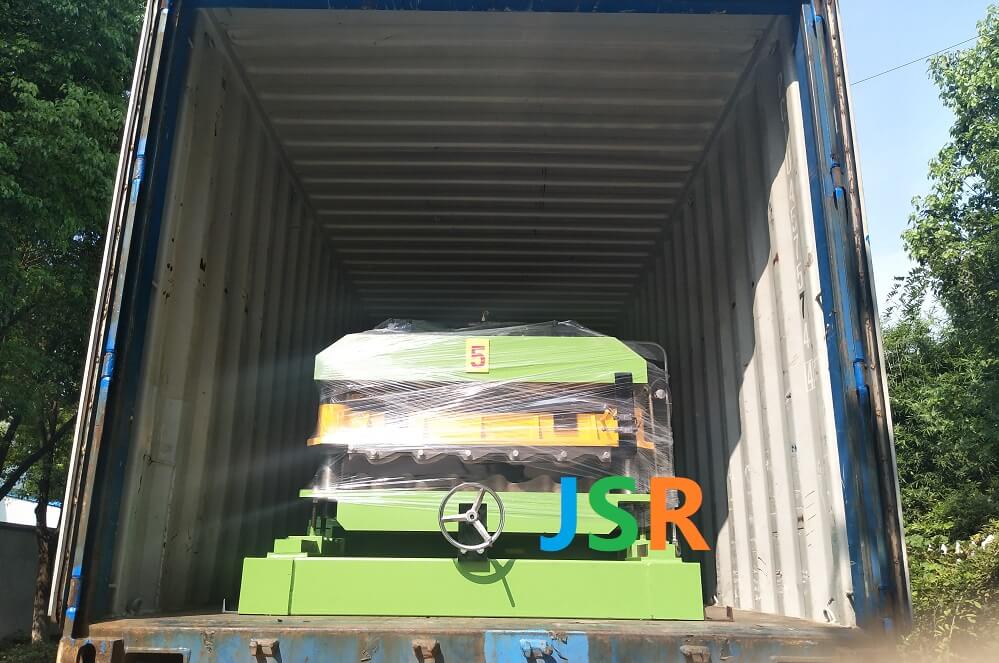

forming lines are well installed and tested before delivery, customer only connect some wire and tubes according to video and manual to start forming machines.

YouTube player

Simple program:

customer only feed in controller, length and pieces, roll forming machine will automatically work.

each time we can input 20 group datas.


YouTube player


YouTube player

how to install and how to program roll forming machine with pictures and details, please check here

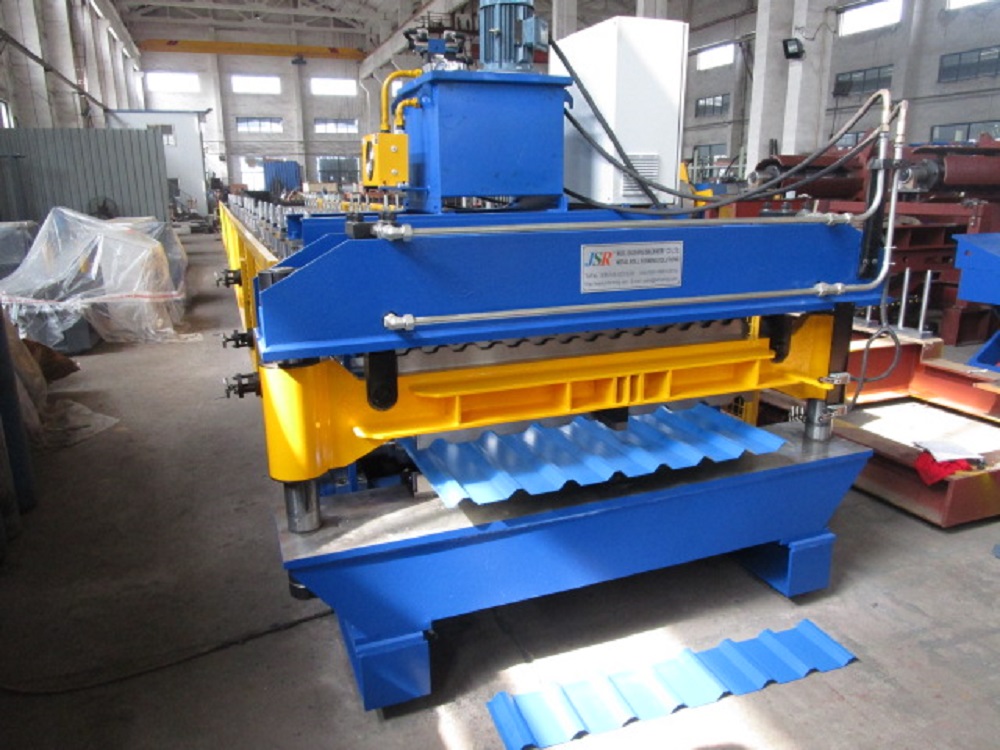

Some customers like to buy double layer machine for r101 trapezoidal and ondulados



Technical Details

Machine Specifications
WeightAbout 9000kgs
SizeAbout 11m x 1.7m x 1.5m (length x width x height)
ColorMain color: blue
Warning color: yellow
Suitable Raw Material
MaterialPPGI and PPGL Coils
Coil width1220mm
Yield Strength235Mpa
Main Technical Parameters
Quantity of forming rollers stations22
Diameter of forming rollers shafts80mm
Roll Forming Speed15-20m/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 7.5kw
Hydraulic unit motor power: 3kw
Electric voltageAccording to customer’s requirement


Layout drawing of machine (reference only)


JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced

Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut – run out

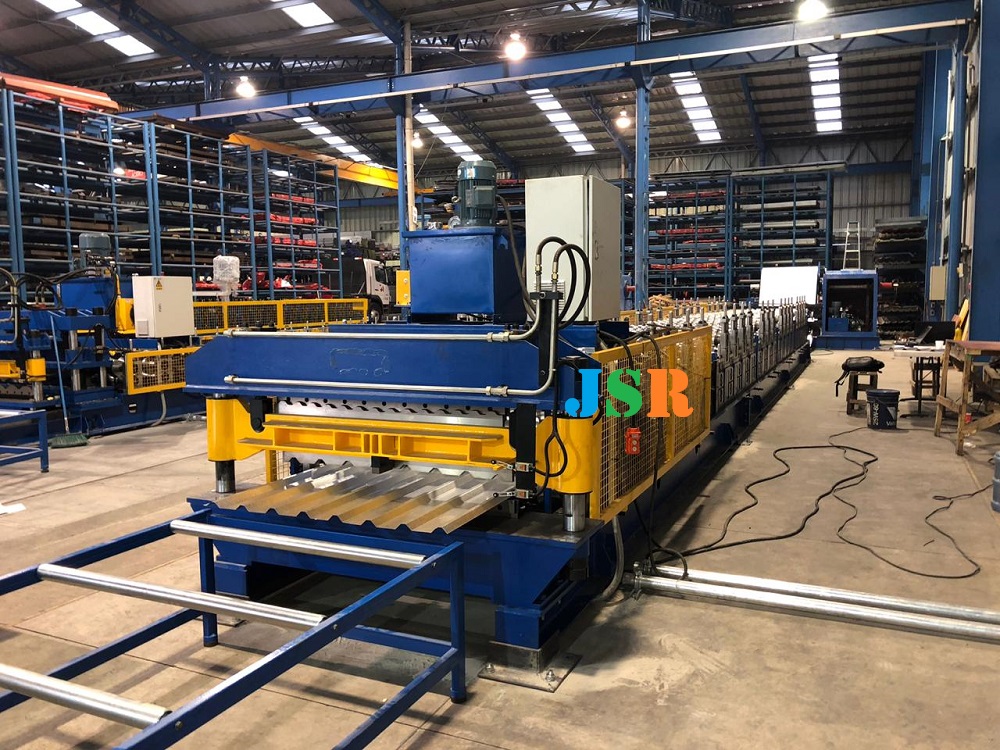

roll forming machine working video in customer factory

YouTube player

cladding profile making machine in India

YouTube player

Mini orb profile forming machine in Malaysia

YouTube player

IBR roll forming line in Malawi

YouTube player

trapezoidal roll former in Colombia

YouTube player

fast speed roof panel forming machine in Bengal
