Scafforlding Planks Roll Former

Facebook
Twitter
LinkedIn

Description

Quality Scafforlding Planks Roll Former from Wuxi JSR machinery factory, design walking board machines according to customers requirements.

for this scafforlding forming machine working speed about 4-6m/min,

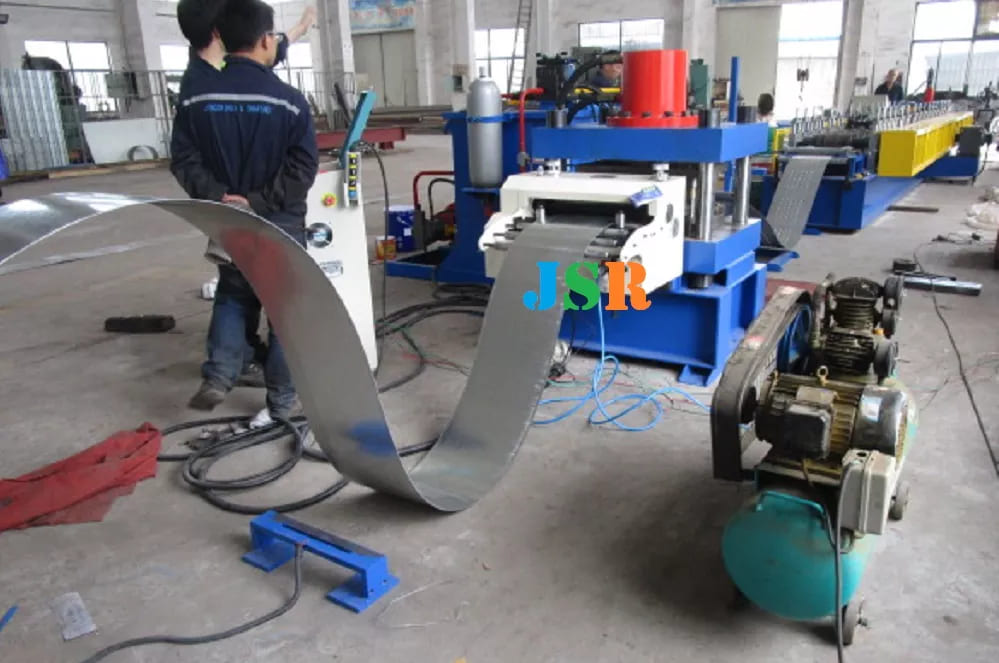

process: decoiler  material- leveling- hydraulic punch-forming -cutting

this hydraulic punch is more economical than punch machine

while punch machine punch speed faster, therefore, while scaffording machine working speed faster , about 10m/min

YouTube player

If your production of steel walking boards are not big, and space limited,

we suggest you this steel walking forming machine, forming machine combined with hydraulic punch,

advantage, cheaper and install space small

disadvantage working speed about 2m/min

YouTube player

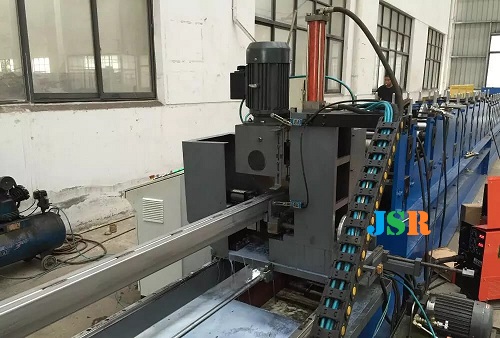

JSR machinery factory also make special scarffording planks

because of special planks design, we adopt saw cut to make sure the final planks shape

YouTube player

Specifications

Technical Details

The Line’s Specifications
WeightAbout 38000kgs
Whole line’s dimensionAbout 30m x 3m x 1.5m (length x width x height)
ColorMain color: green
Warning color: yellow
Suitable Raw Material
MaterialGalvanized or Galvalume Coils
Thickness1-1.5mm
Coil widthAccording to products size
Yield Strength235Mpa
Main Technical Parameters
Quantity of forming rollers stationsAbout 16
Diameter of forming rollers shafts75mm
Roll Forming Speed10-15m/min
Production Speed4m/min
Forming rollers materialGcr15 mould steel, with quenched treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPanasonic PLC and Yaskawa Converter
Electric Power requirementMain motor power: 15kw
Hydraulic unit motor power: 15kw
Electric voltageAccording to customer’s requirement
Main Components
Decoiler (manual and automatic for options)1 set
Guiding device1 set
Leveling system1 set
Punching machine1 set

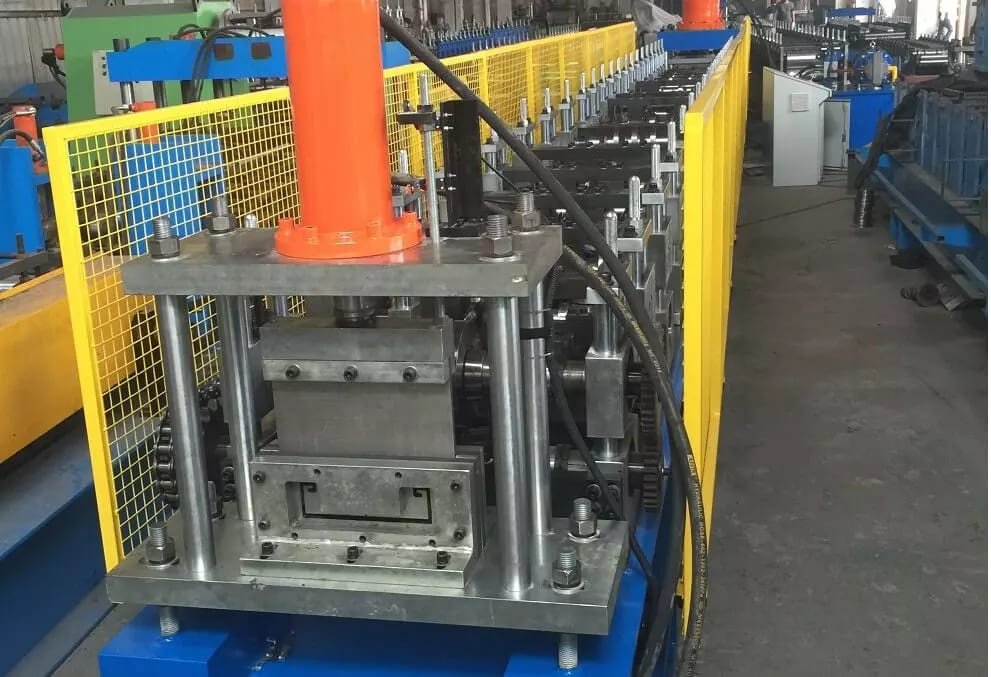

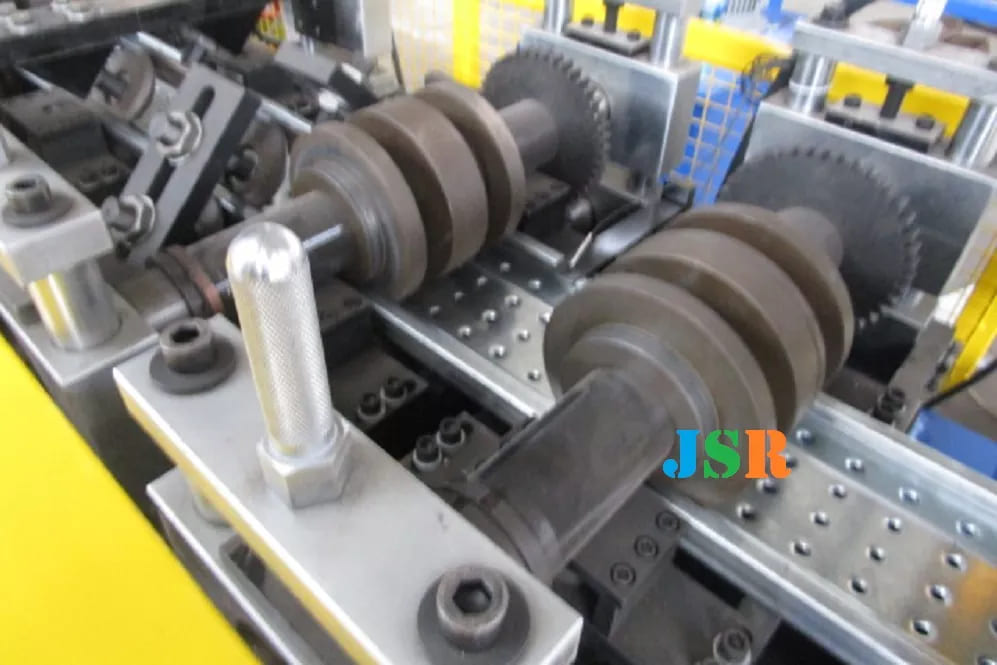

Roll Forming system1 set
Hydraulic Cutting system1 set
PLC control box1 set
Hydraulic unit1 set
Run outs tables1 set

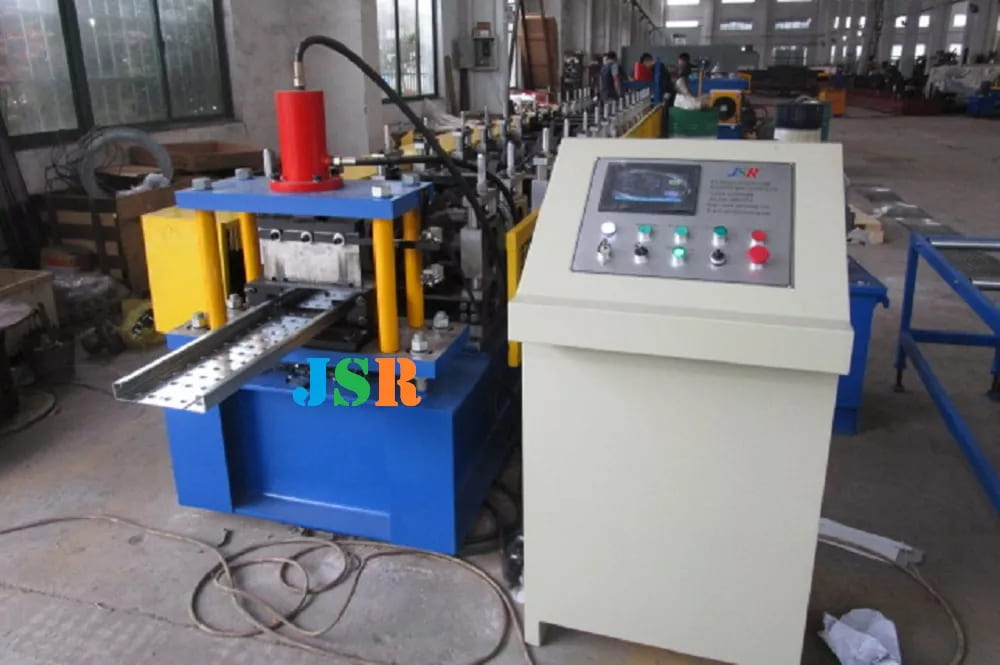

  • Scafforlding Roll Former
    Layout drawing of machine for reference

APPLICATION

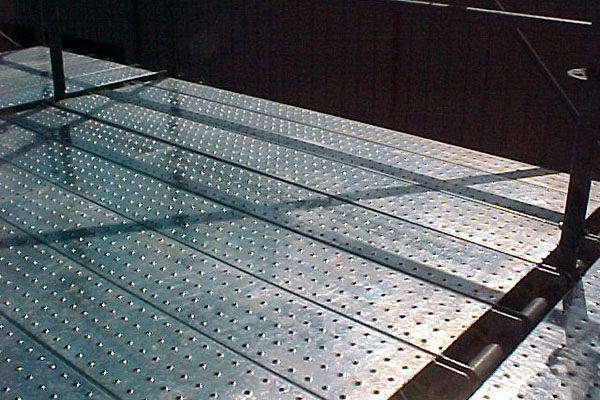

The main function of steel plank is providing the studio for the workers. There are anti-sliding hole and drainage hole on it.

JSR machinery factory manufacture scaffolding planks forming machine professionally.
If machine with punch machine, working speed about 10m/min,
If machine with hydraulic punch, working speed about 4m/min,
Gearbox can be designed in the machine for transmision.

Operate easily , work automatically with PLC controller control.

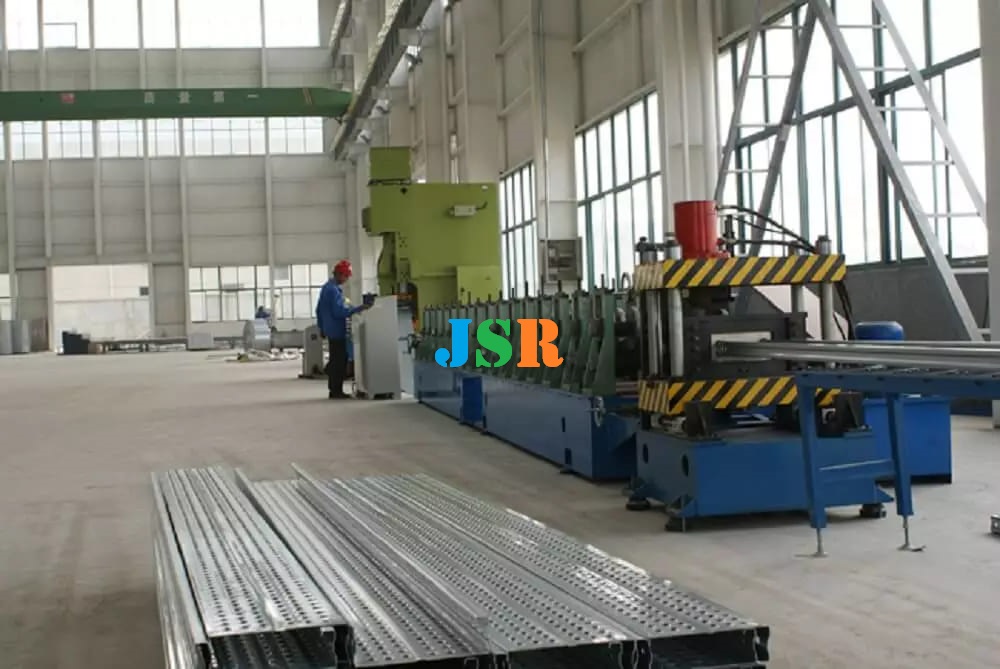

Decoiler-Punch- forming -cut – run out

Scaffolding Planks Roll Forming Machine APPLICATION
