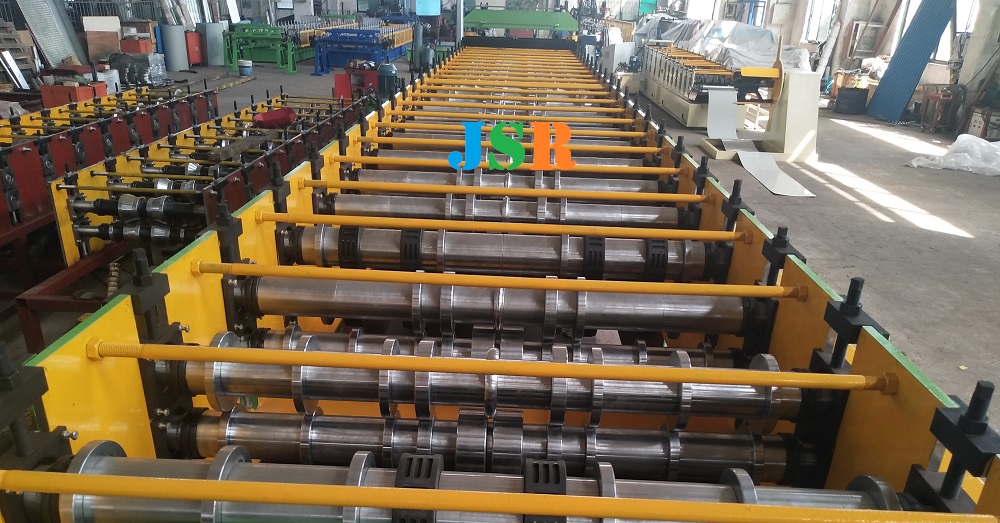

Steel Decking Roll Forming Machine

Facebook
Twitter
LinkedIn

Description

JSR deck making machines,steel deck forming machines,Steel Decking Roll Forming Machine in China.This is most popular deck profile for height 2.5 inch, that is 64mm ,use raw material48 inch width and 0.6-1.0  mm thickness or 0.8-1.2mm thickness.



Advantage of deck forming machine:

Advantage of decking machine:

1. Adopt 85-95mm solid shaft and H-shaped steel as the underframe, so that the machine can withstand long-term production without deformation of the machine, thus ensuring long-term machine use life;
2. The rollers are processed by CNC machine tools to ensure the accuracy of the rollers, and thus the accuracy of the final deck.
3. Our cut blade frame is stress-relieved to ensure that it is not deformed during long-term production and makes the final product smooth.

4. The steel decks are flat, high precision within 1mm, and the effective width is controlled within 5mm;
5. Use Mitsubishi or Siemens operating system with stable performance, simple operation, as long as the input length and quantity are automatically produced by the machine, and the cutting length tolerance is within ± 2mm
6. Forming speed can reach 8-12 meters per minute
7. The machine weighs about 15-18 tons

Profile of floor deck:

deck 2”

deck 3”

deck 1.5”

deck 840

trd-91.5



Conponents of floor deck forming machines

7 ton manual decoiler, forming machine with post cut, plc controller, hydraulic station,run out table

if you need full automatical deck machine, equipped with hydraulic decoiler and automatical stacker with extra cost

Specifications

Technical Details

Machine Specifications
WeightAbout 15000kgs
SizeAbout 16m x 1.8m x 1.5m (length x width x height)
Suitable Raw Material
MaterialGalvanized or Galvalume Coils
Thickness0.8-1.2mm
Yield Strength235Mpa
Main Technical Parameters
Diameter of forming rollers shafts95mm
Roll Forming Speed10-15/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 3x11kw
Hydraulic unit motor power: 5.5kw
Electric voltageAccording to customer’s requirement



  • Steel Decking Roll Forming Machine
    Product sample

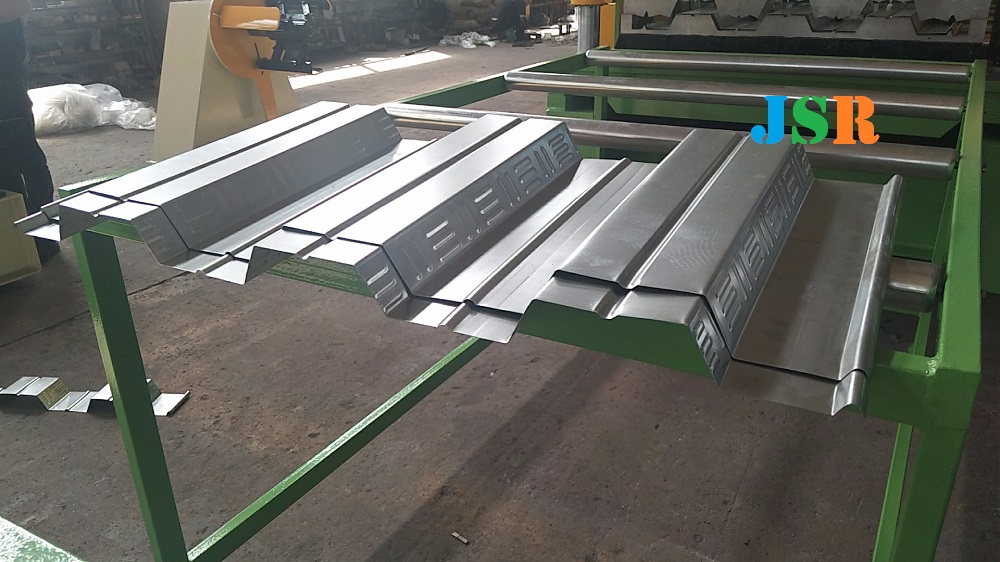

    deck dimension quality, such as cover width , flatness.straightness and consistent emboss depth garantee the decks can erect efficiently in the field.



  • Steel Decking Roll Forming Machine
    Layout drawing of machine for reference



  • Steel Decking Roll Forming Machine

APPLICATION

Steel deck or floor deck are widely use nowadays, for following advantage:
1.Reduce steel frame weight
2.No need formwork for concreting
3.Install speed faster
4.Safe working platform for workers.

JSR machinery factory manufacture all kinds of steel deck forming machine, or floor decking machine machine.
Operate easily , work automatically with PLC controller control.
Decoiler- forming – cut – run out

Deck Sheet Roll Forming Machine

if you need deck forming machine working speed about 20m/min, here is non stop cut type
