1.5” B roof deck roll former Mexico

Facebook
Twitter
LinkedIn

Description

1.5”B roof deck roll former for 22GA is popular in america and mexico,  Type B roof deck is 1.5” deep.

1.5” B deck’s wider rib profile allows for more insulation to be installed

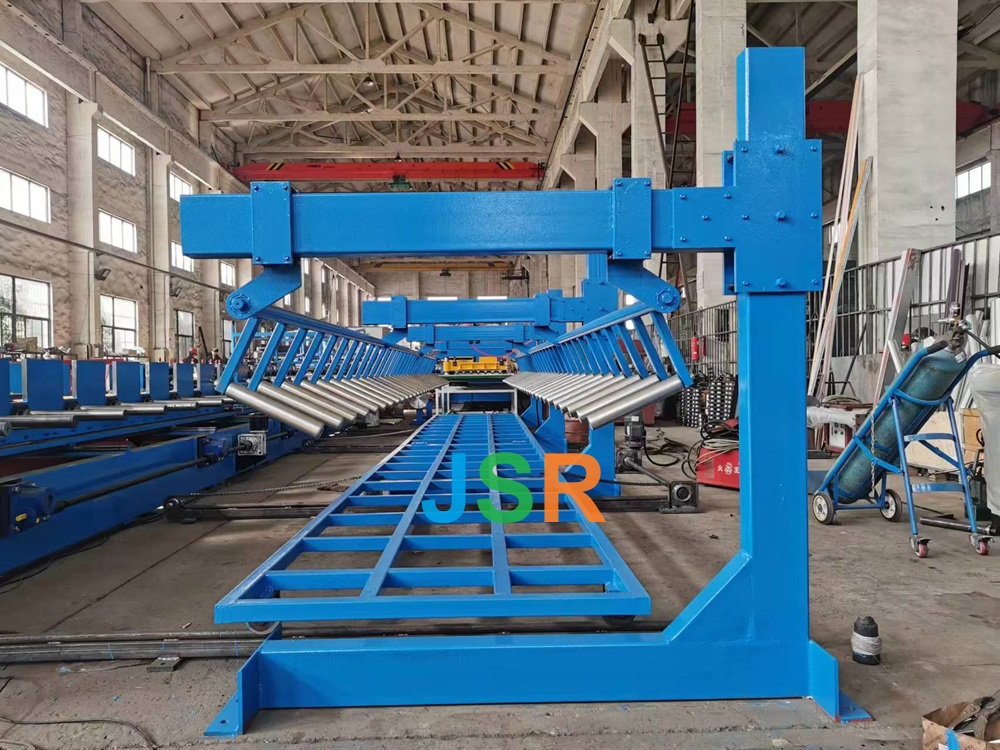

Machine with 10 ton hydraulic decoiler and loading car, 3m convey table and 9 m stacker.

after first cut, we put in length and pieces, machine will automatically work.

YouTube player

 machine summary

siemens PLC and screen, yaskawa converter .

main motor power 11kw

electric cut power4kw

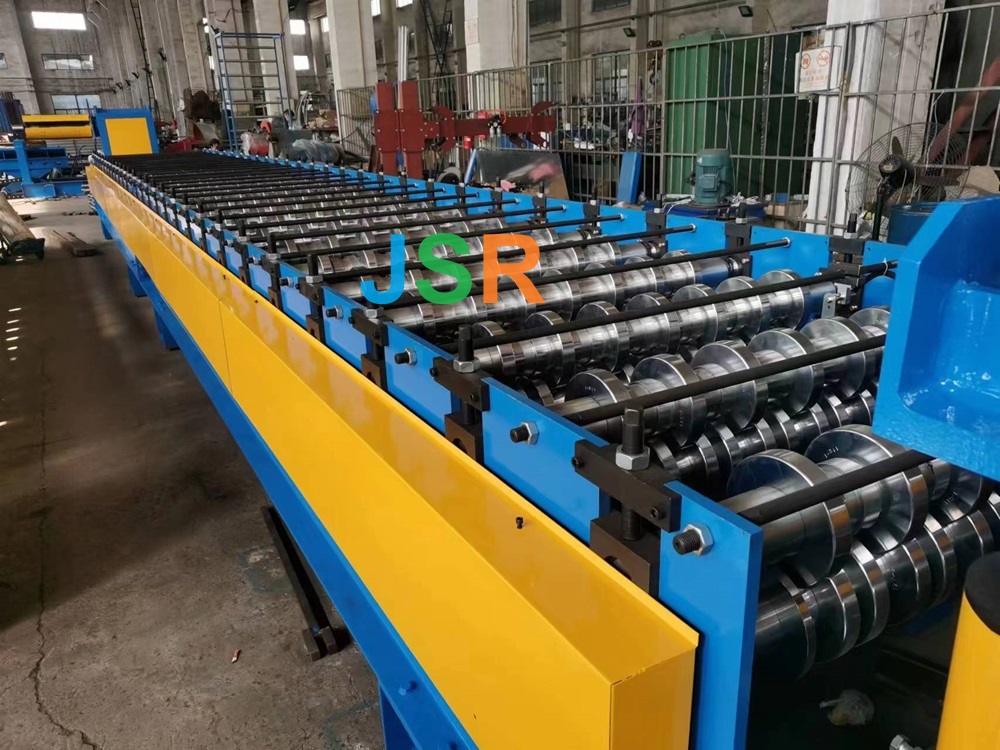

28 roller stations.

80mm diameter solid shaft.

suitable for one 40 GP loading.



Specifications

Technical Details

Machine Specifications
WeightAbout 18000kgs
SizeAbout 13m x 1.7m x 1.5m (length x width x height)
ColorMain color: green
Warning color: yellow
Suitable Raw Material
MaterialPPGI and PPGL Coils
Thickness0.6-0.7mm
Coil width1220mm
Yield Strength235Mpa
Main Technical Parameters
Quantity of forming rollers stations28
Diameter of forming rollers shafts80mm
Roll Forming Speed20m/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 11kw
electric motor power: 4kw
Electric voltageAccording to customer’s requirement

Gallery

machine is well installed and tested before delivery, you only connect some wires and tubes to begin manuafacture.
