Box profile 32/100 is popular in UAE and European countries .

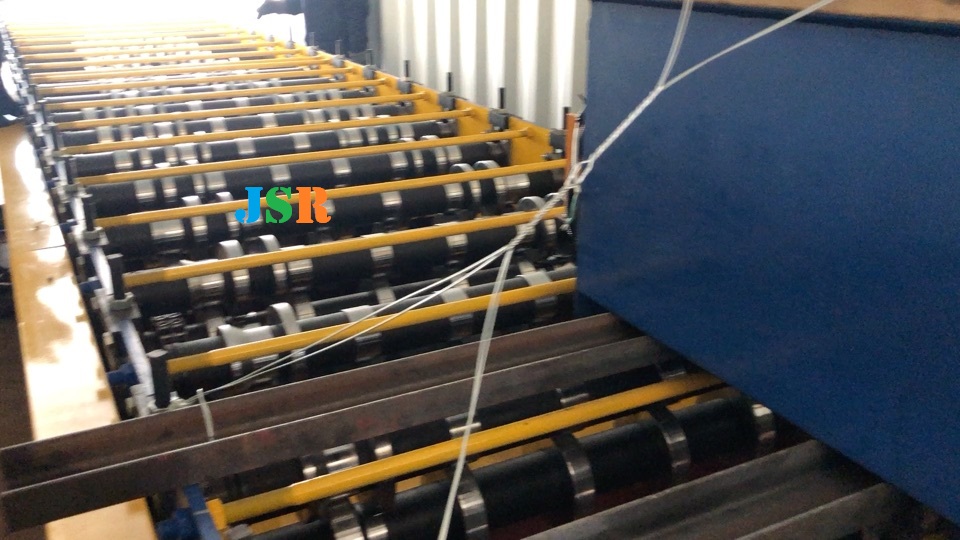

roofing machine installed in container, roll former can transfer to construction site for making sheets.
if forming line on site, forming machine can make long sheets. very long as video
if roofing sheet making machine work in the factory, machine can make any length,
but transport truck length Max.12m.
therefore, roofing manufacturer put roofing machine in container, take container to construction site to make long roofing sheets.
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 9000kgs |
| Size | About 11m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.8mm |
| Coil width | 1220mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 22 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
