Monterry Tile Roll Forming Machine

Share on facebook
Facebook
Share on twitter
Twitter
Share on linkedin
LinkedIn

Description

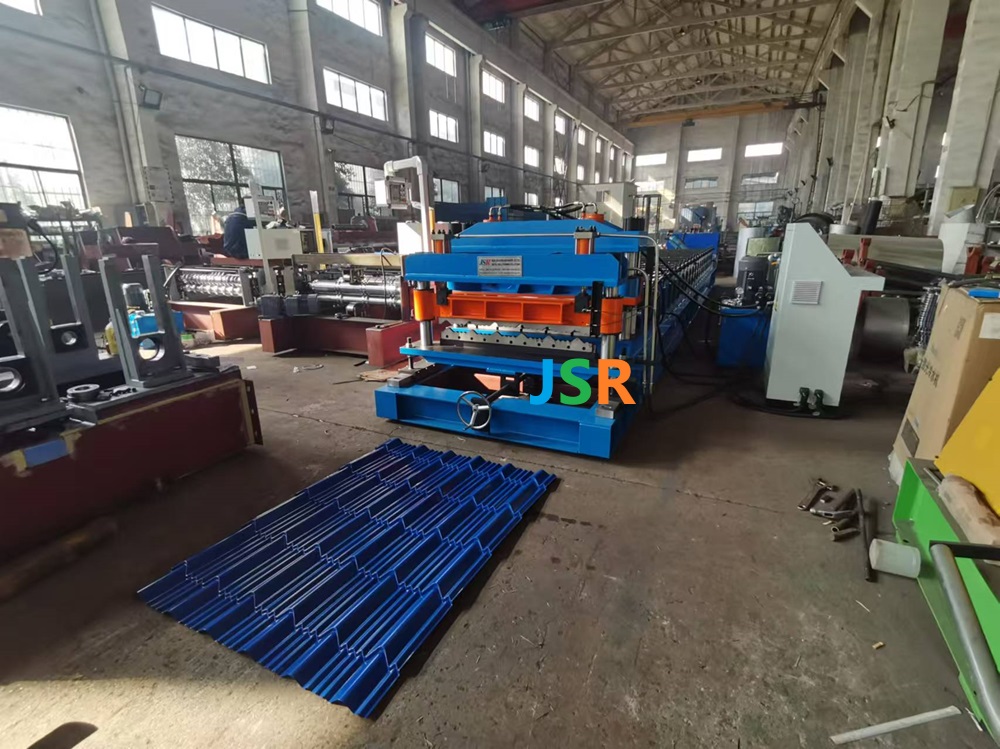

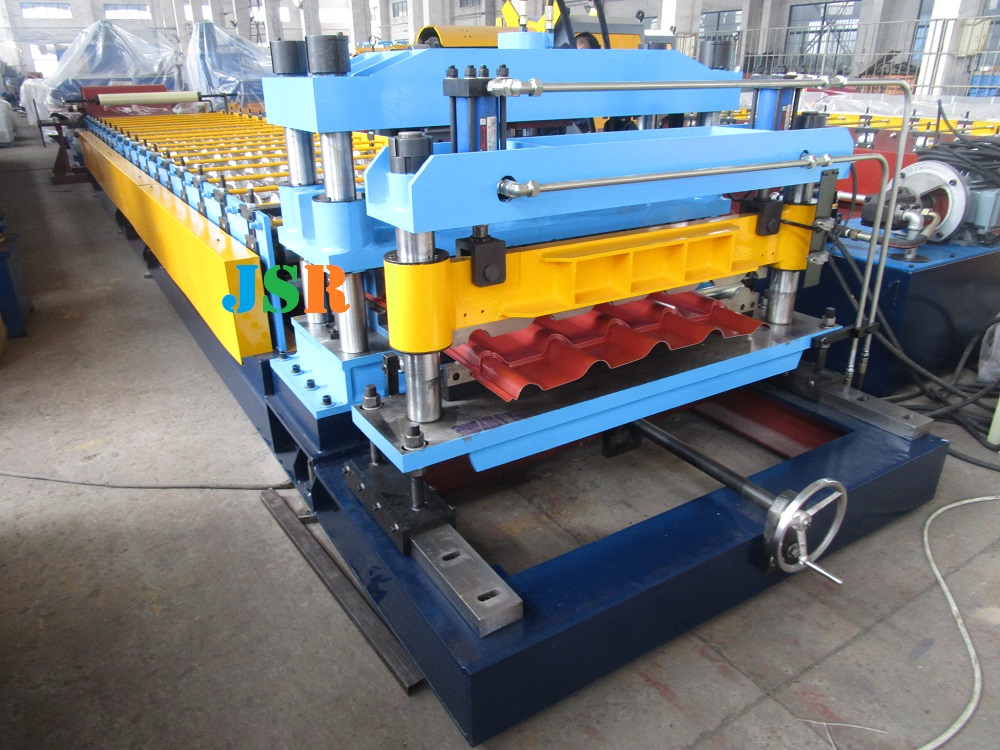

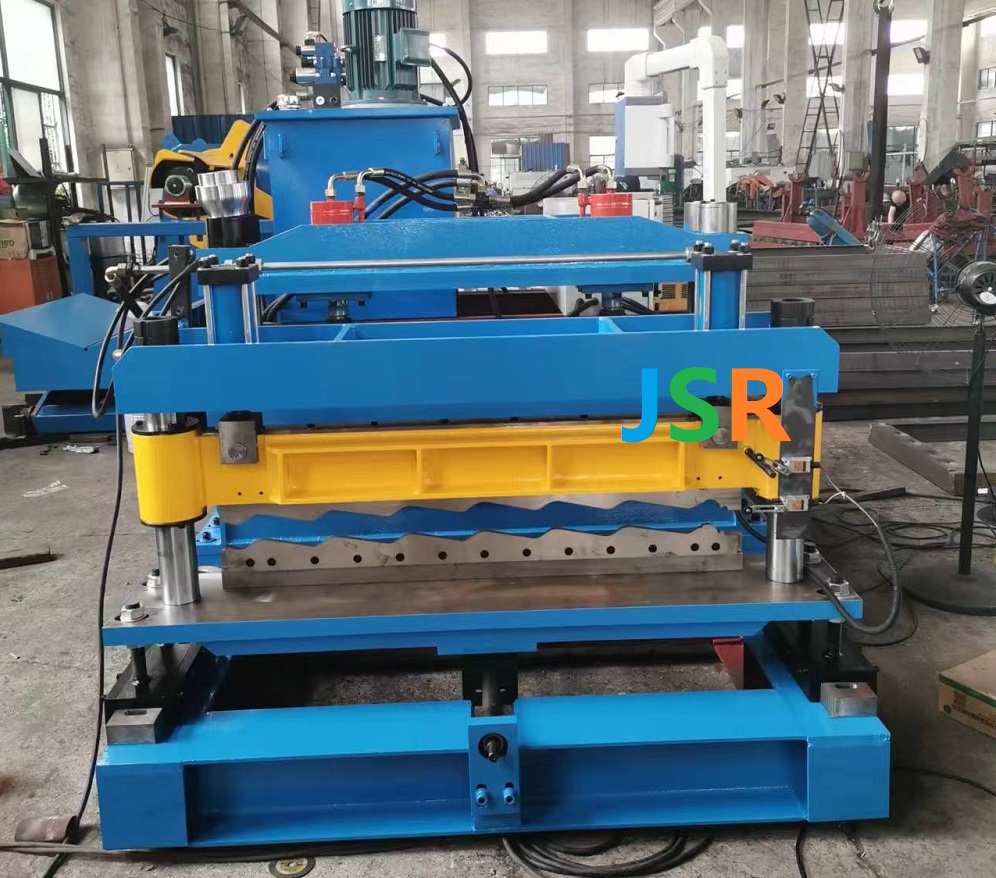

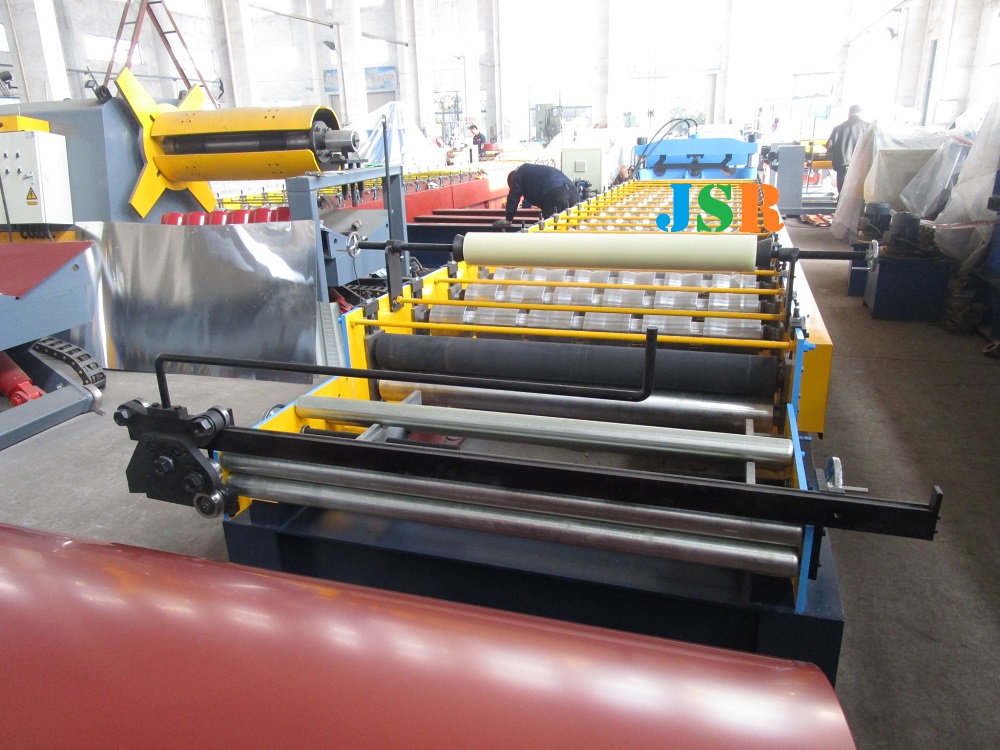

Quality roll forming machine,steptile forming machine,Monterry Tile Roll Forming Machine from Jsr machinery in China.

This steptile forming machine fabricate roof tile of steel frame building or pre engineered structure, which can be designed to manufacture viarity of beautiful roof tile while good quality.

Advantage of JSR roof tile roll forming machine

【High Efficiency】working speed about 6m/min .one shift or 8 hours can Produce 2880m or about 12-15ton coils

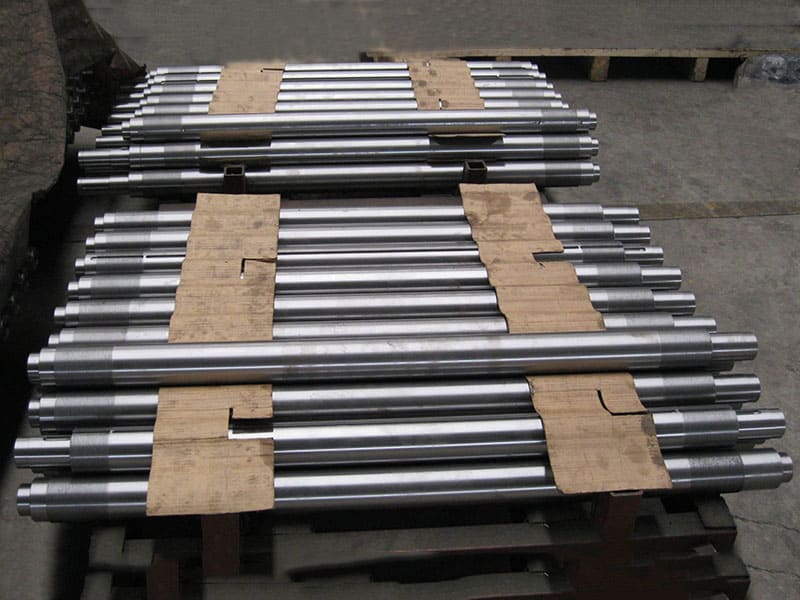

【Long Life useusual tile machine weight 10 ton according to profiles,we use 13-15 ton raw material for the machine, so machine is strong and stable. Solid shafts diameter 75mm, rollers plated with 0.05mm hard chrome to improve hardness and also anti-rust. Cutting frame with heat treatment to avoid deformation in future. Cut blade material CR12 with quench treatment.
【High Precision】high precision controlled by Mitsubishi system guarantee tiles connect very closely to avoid water leakage.

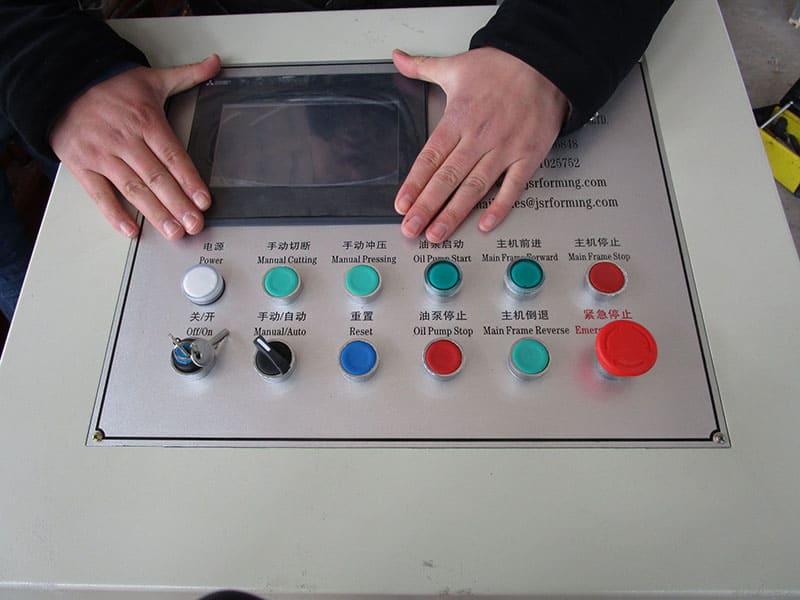

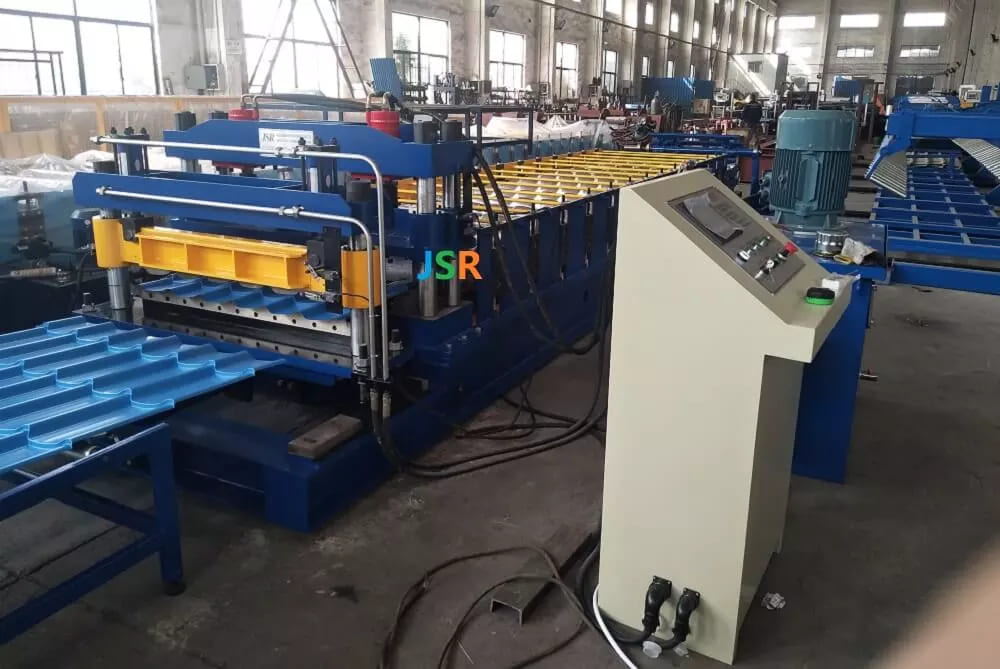

【Automatic & Easy OperationSafe and easy to operate with Mitsubishi control system.

excellent serviceTechnicians and engineers can be sent to your factory to install the machine and train your workers if you required.



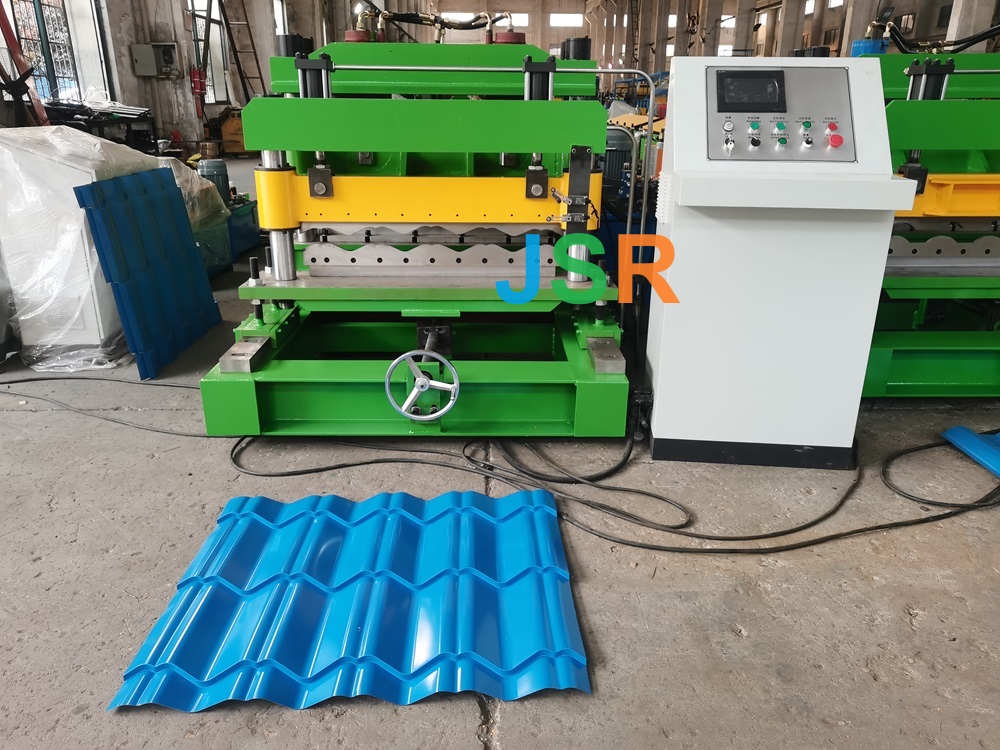

Profiles of roofing tile forming machine

JSR machinery factory introduce you some popular profiles of steptile forming machines

  1. Versatile
  2. C-tile
  3. Monterrey
  4. European type tile
  5. Mondarin profile

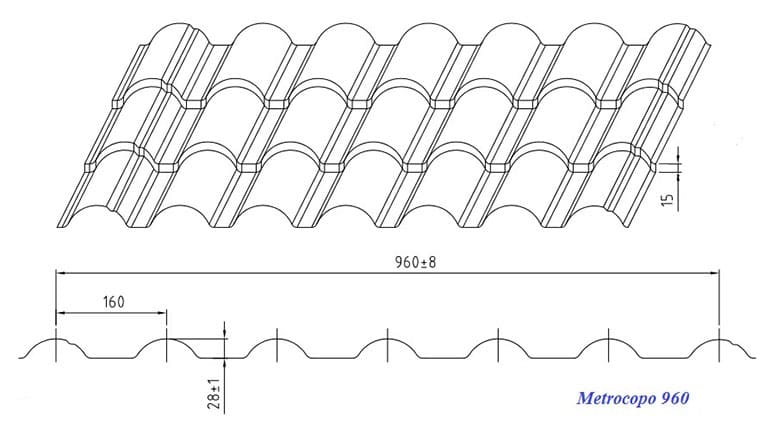

  6. Metecoppo tile
  7. Teja

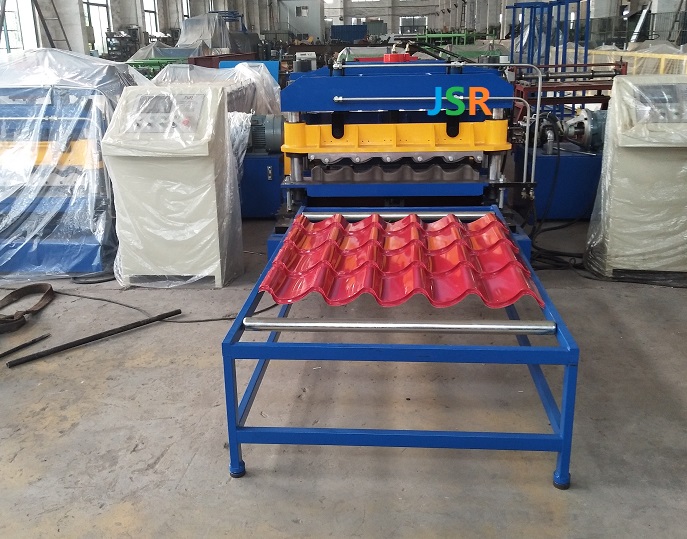

  8. Galvateja
  9. Machine is designed according to your profiles
  10. californial teja
  11. colonial teja

20+ standard roof panel profiles are available for your reference,of course, we can make custom profiles according to your requirements on profile, raw material, width range and other aspects.

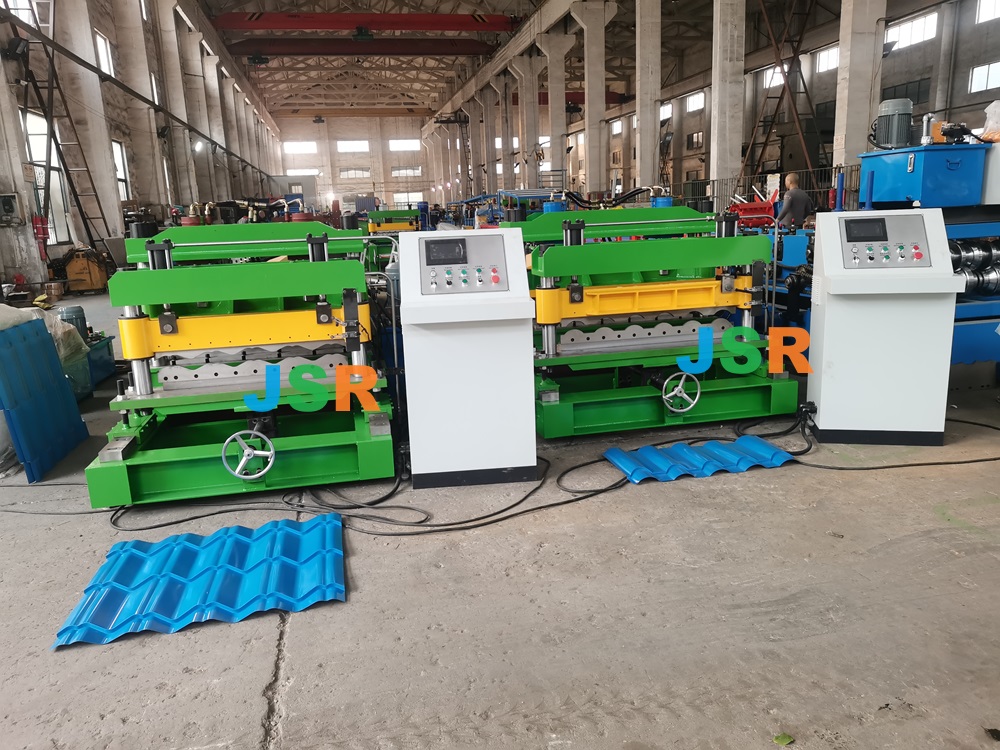

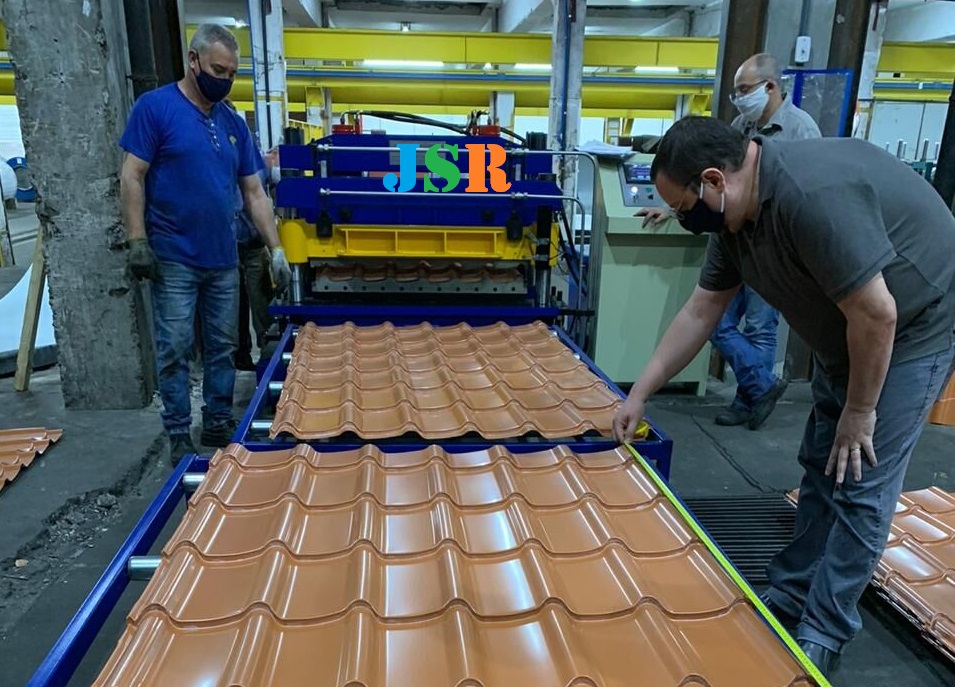

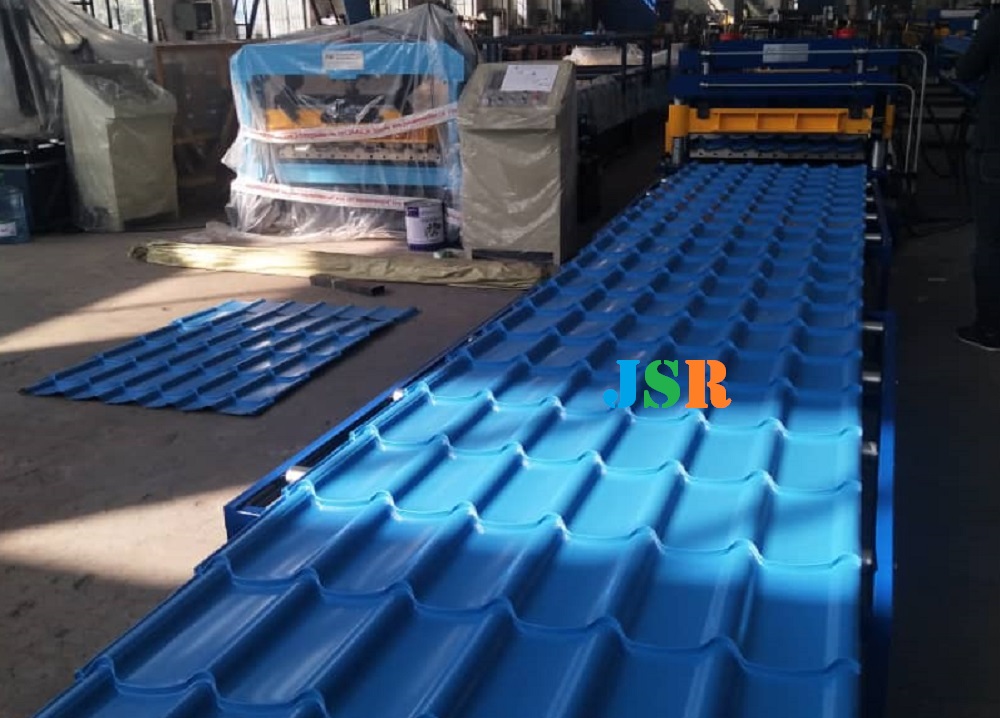

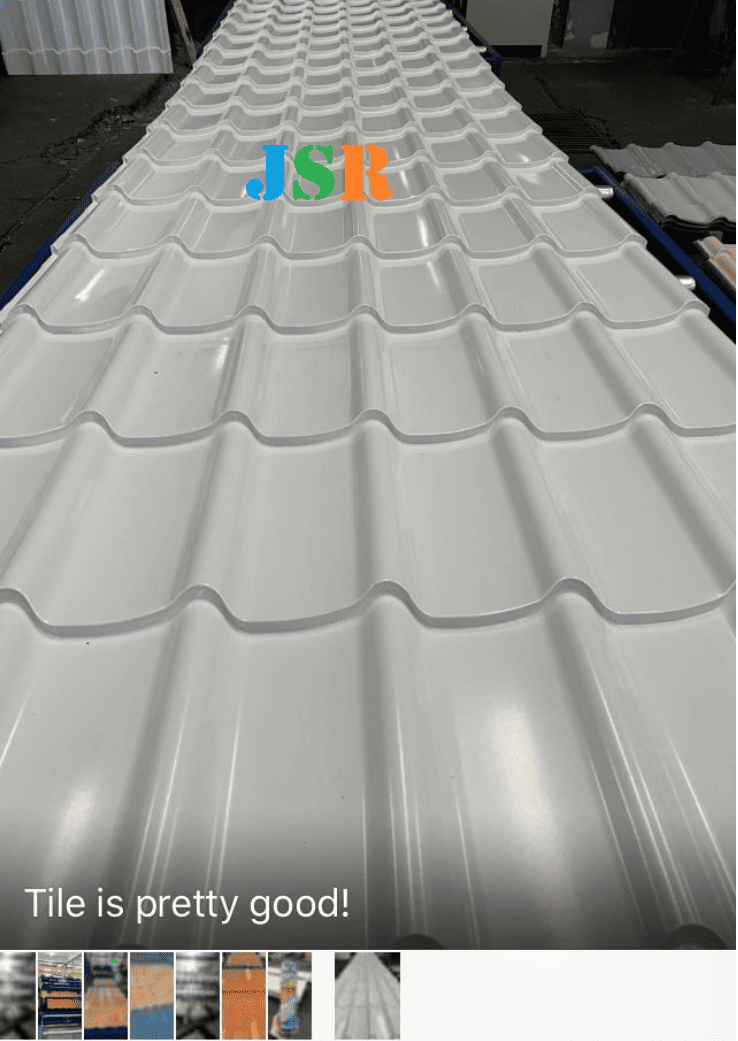

JSR tile forming machines are well installed and tested before delivery. customers only connect some wires and tubes to make forming machines working, here are customer make tile machine working by themselves

here are his satisfied comments of our tile forming machines.

Specifications

Technical Details

Machine Specifications
Weight About 9000kgs
Size About 10m x 1.8m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Pre-painted Galvanized Steel Coils
Thickness 0.4-0.6mm
Coil width 1250mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations About 16
Diameter of forming rollers shafts 75mm
Roll Forming Speed 10-15m/min
Production Speed 4-6m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5.5kw

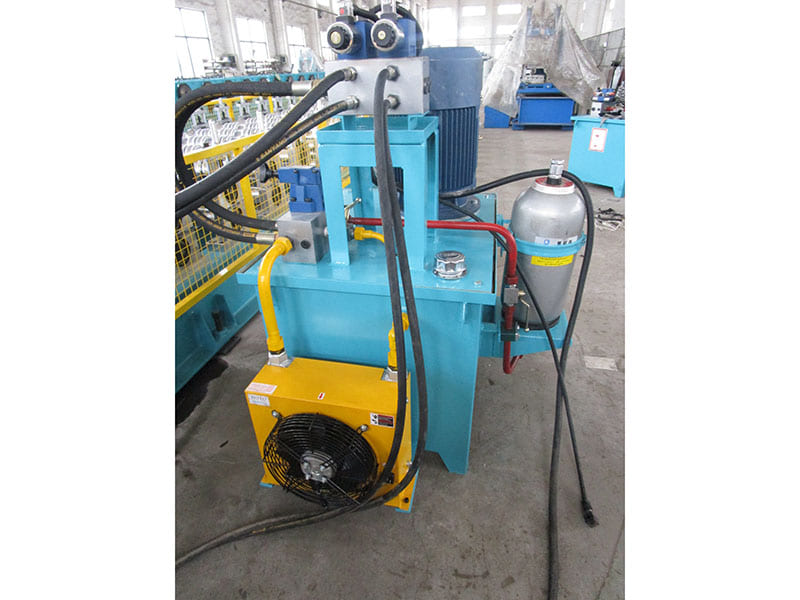

Hydraulic unit motor power: 5.5kw
Electric voltage According to customer’s requirement

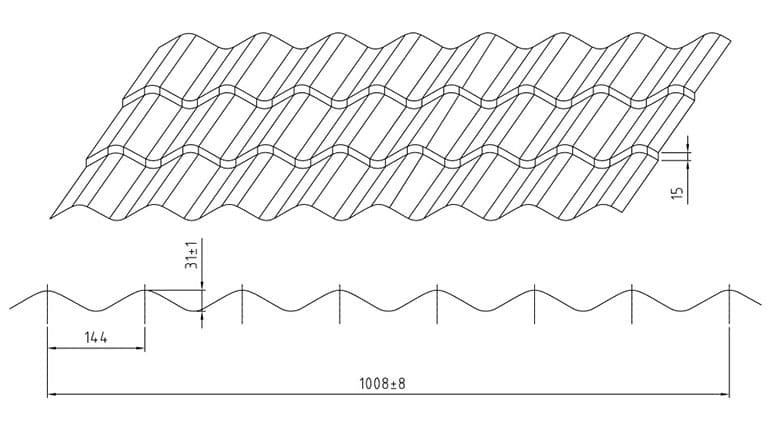

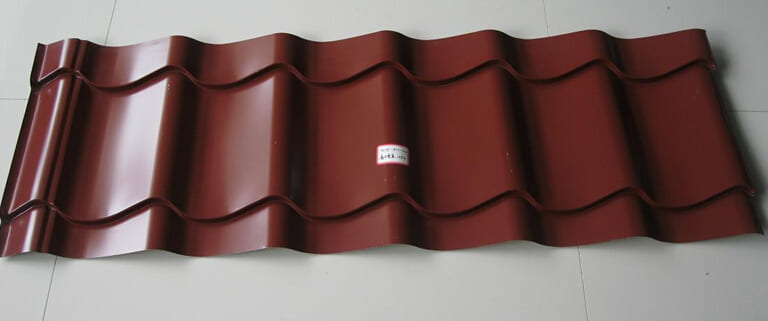

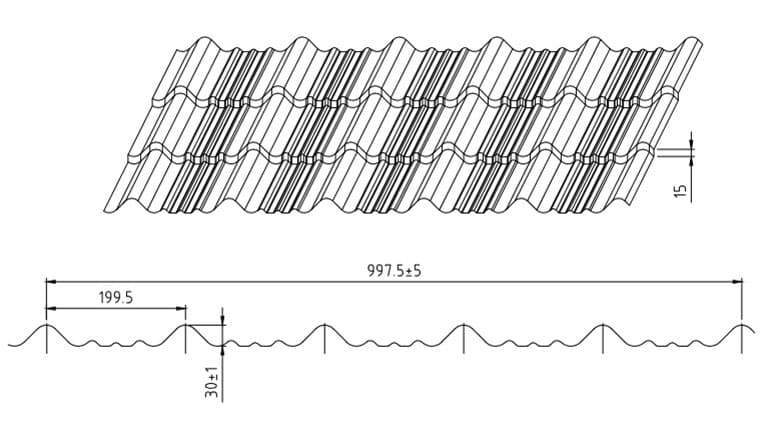

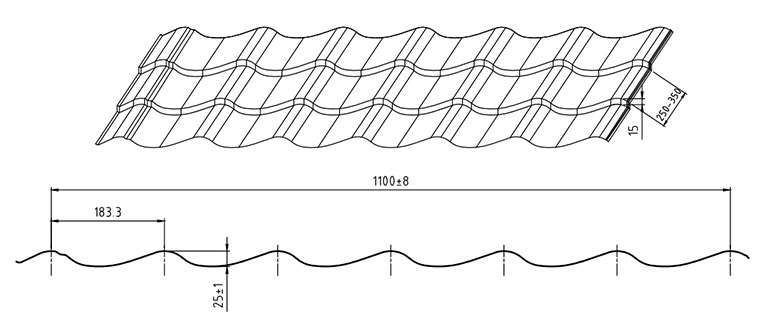

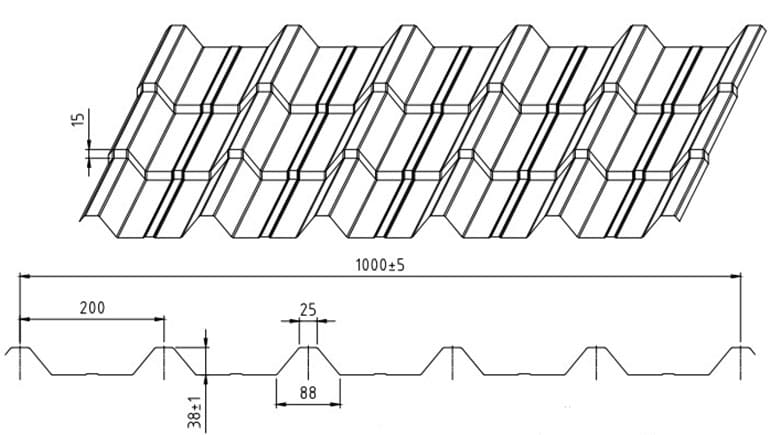

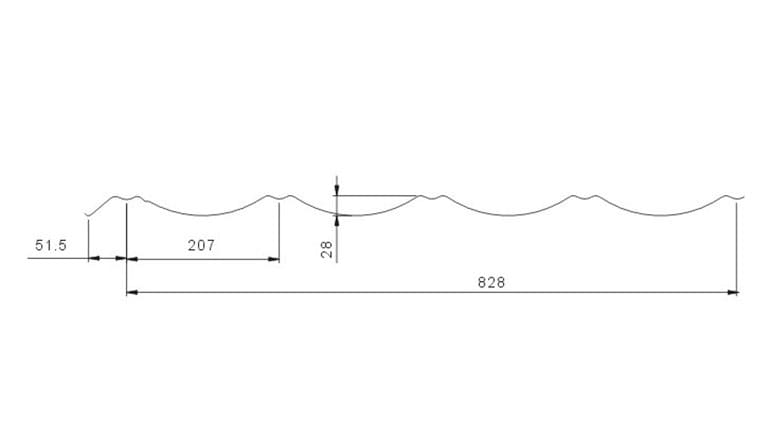

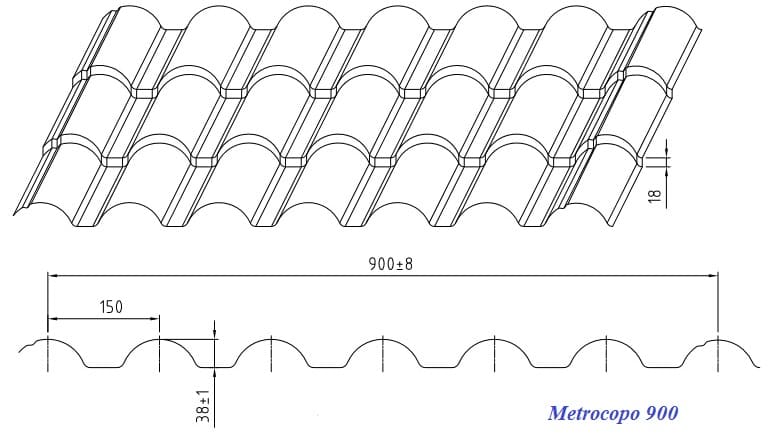

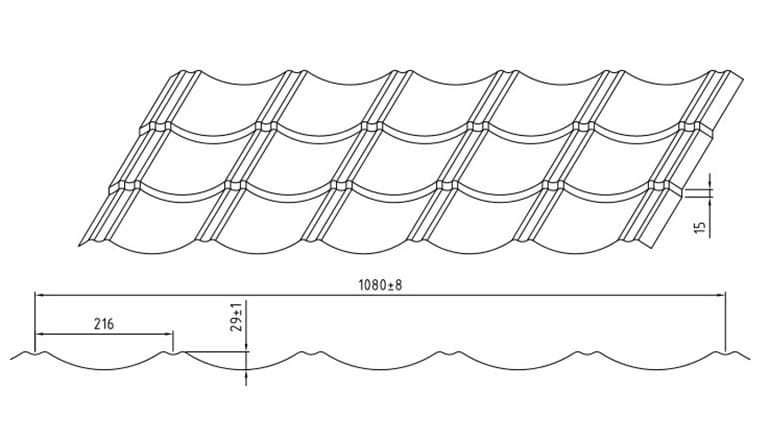

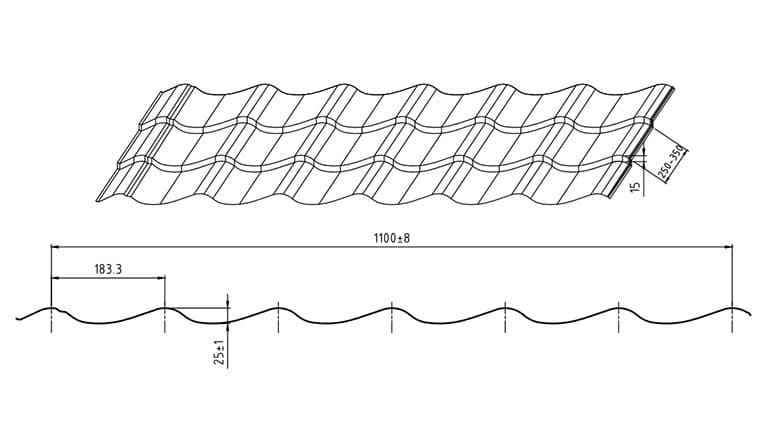

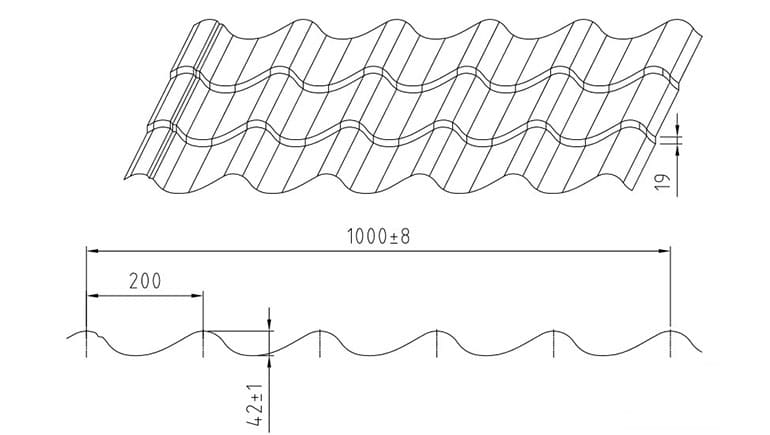

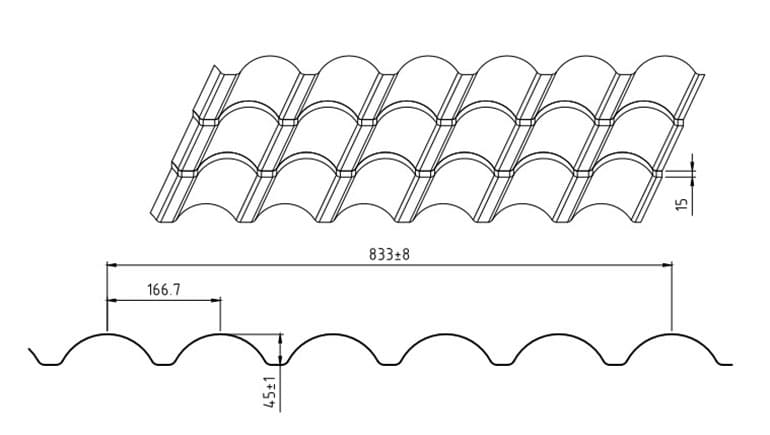

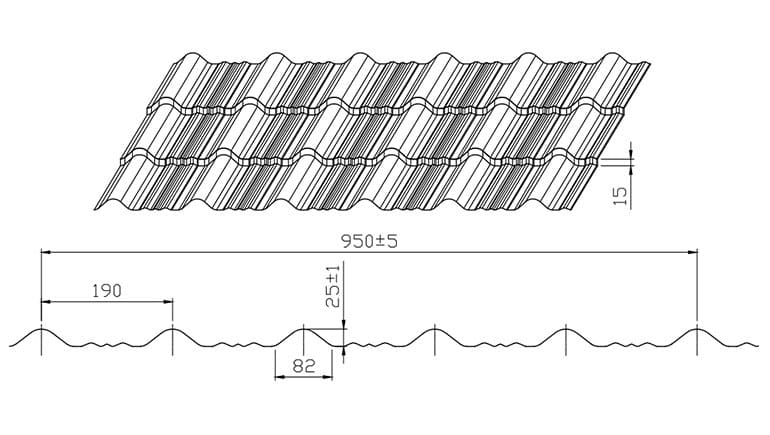

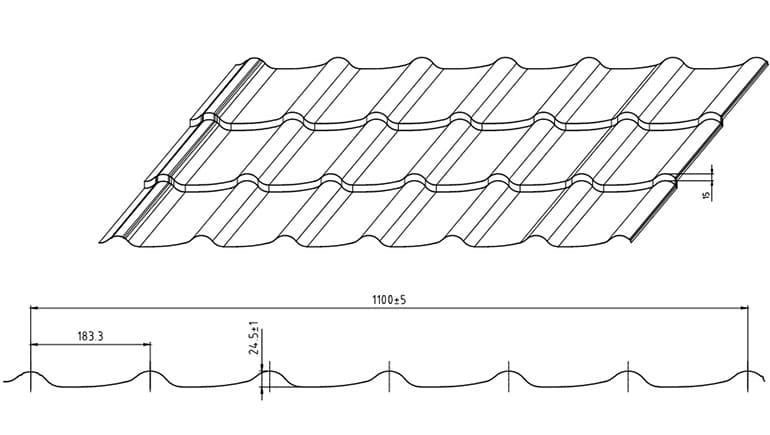

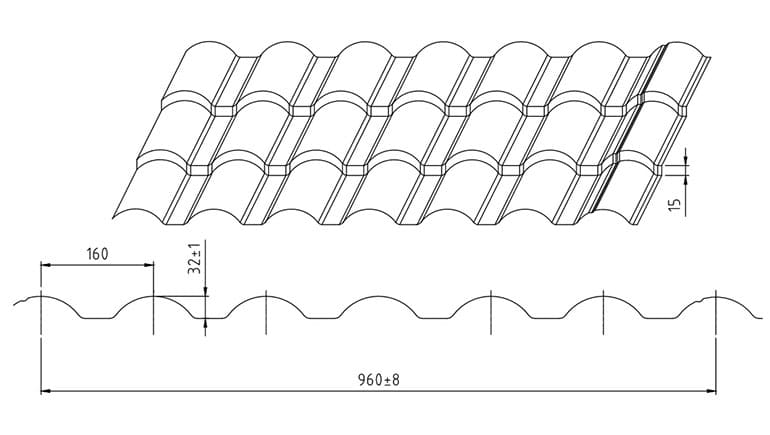

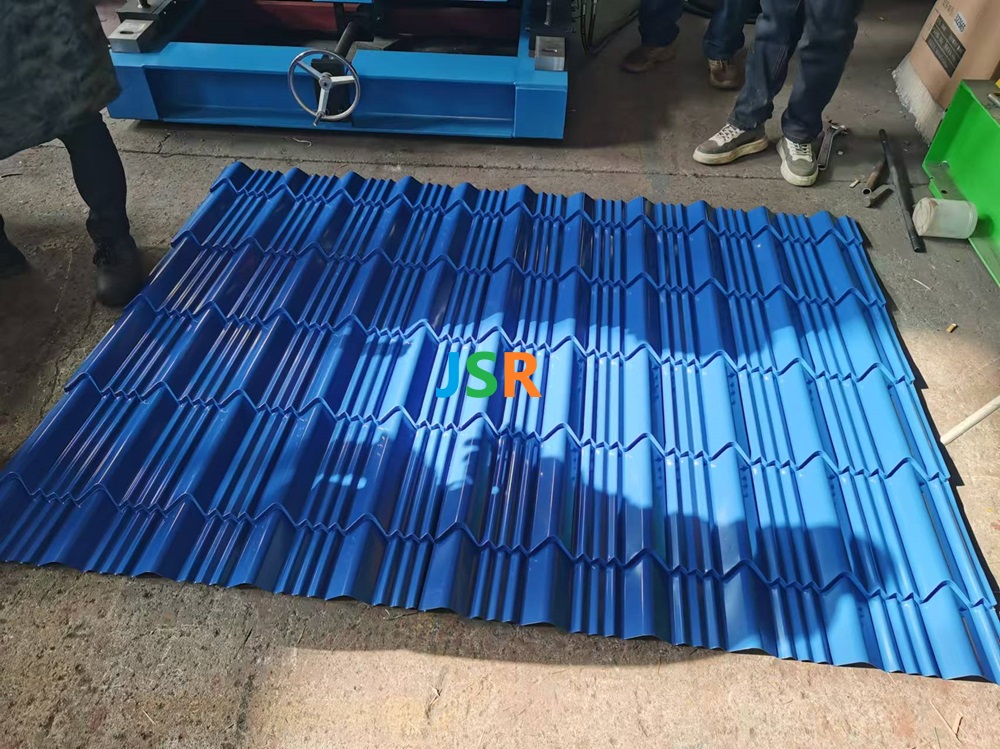

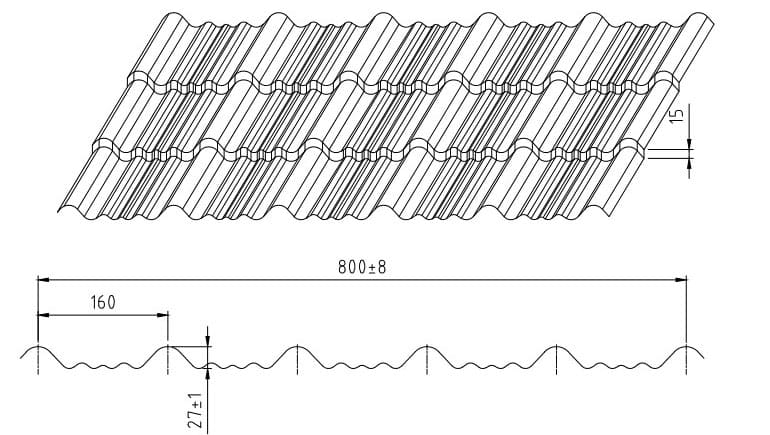

  • End product view                                                                                                      Profile drawing

Monterry Tile Roll Forming Machine Monterry Tile Roll Forming Machine

APPLICATION

JSR tile forming machine can produce steel sheet tile, which is light weight, durable and beautiful.
Now, we improve machine working speed to 4m/min (include press and cut).

Operate easily , work automatically with PLC controller control.
Decoiler- forming- press -cut – run out

Step Tile Roll Forming Machine
