TRD-91.5 Roofing Deck Rolling Machine

Facebook
Twitter
LinkedIn

Description

Jingshirui is the best  TRD-91.5  Deck Rolling Machine manufacturer in China. this floor deck forming machine Machine and deck 2.5” forming machine are Popular in Mexico, they name this deck machine, maquina para losacero, or maquina hacer entripiso.

Steel deck roll forming machine can make any length,calibre 18-24, or thickness 0.8-1.2mm.about 27 roller stations, 22kw main motor,mitsubishi or siemens control.

Advantage of decking machine:

1. The steel decks are flat, high precision within 1mm, and the effective width is controlled within 5mm;
2. Adopt 85-95mm solid shaft and H-shaped steel as the underframe, so that the machine can withstand long-term production without deformation of the machine, thus ensuring long-term machine use life;
3. The rollers are processed by CNC machine tools to ensure the accuracy of the rollers, and thus the accuracy of the final deck.
4. Our cut blade frame is stress-relieved to ensure that it is not deformed during long-term production and makes the final product smooth.
5. Use Mitsubishi or Siemens operating system with stable performance, simple operation, as long as the input length and quantity are automatically produced by the machine, and the cutting length tolerance is within ± 2mm
6. Forming speed can reach 8-12 meters per minute
7. The machine weighs about 15-18 tons

Profile of floor deck:

deck 2”

deck 3”

deck 1.5”

deck 840

trd-91.5

Specifications

Technical Details

Machine Specifications
WeightAbout 15000kgs
SizeAbout 16m x 1.8m x 1.5m (length x width x height)
Suitable Raw Material
MaterialGalvanized or Galvalume Coils
Thickness0.8-1.2mm
Yield Strength235Mpa
Main Technical Parameters
Diameter of forming rollers shafts85mm
Roll Forming Speed10-15/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 2x11kw
Hydraulic unit motor power: 5.5kw
Electric voltageAccording to customer’s requirement



  • Ternium TRD-91.5 Roofing Deck Rolling Machine
    Layout drawing of machine for reference

APPLICATION

Steel deck or floor deck are widely use nowadays, for following advantage:
1.Reduce steel frame weight
2.No need formwork for concreting
3.Install speed faster
4.Safe working platform for workers.

JSR machinery factory manufacture all kinds of steel deck forming machine, or floor decking machine machine.
Operate easily , work automatically with PLC controller control.
Decoiler- forming – cut – run out

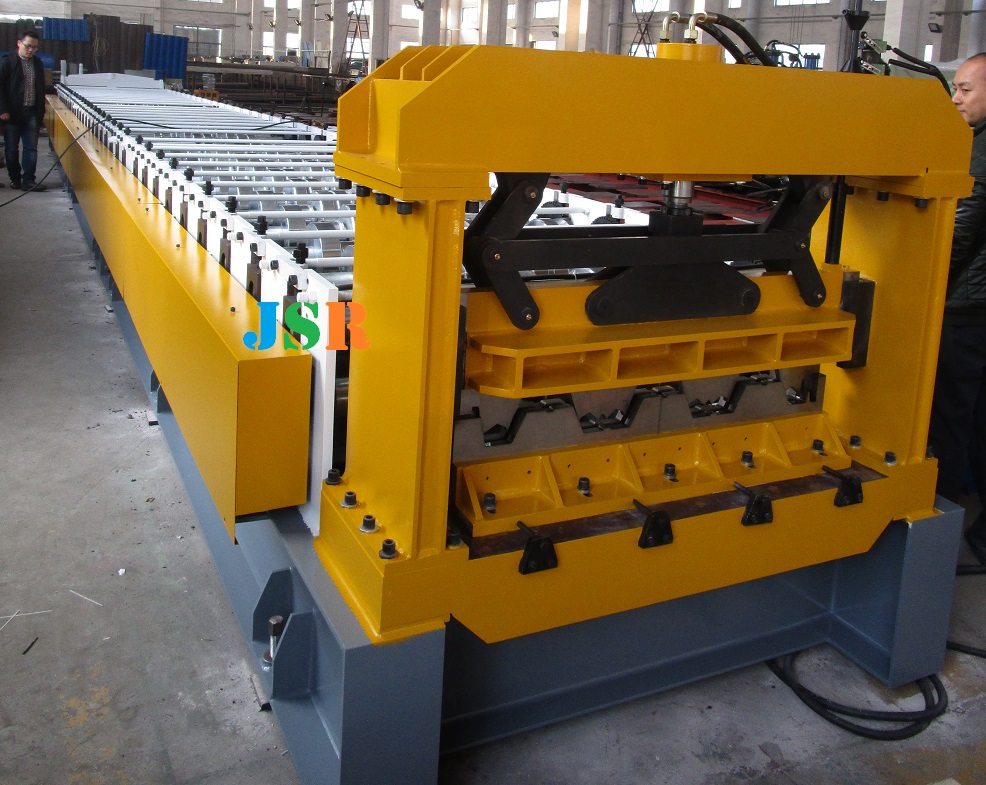

Deck Sheet Roll Forming Machine

CUSTOMER COMMENT

Gallery

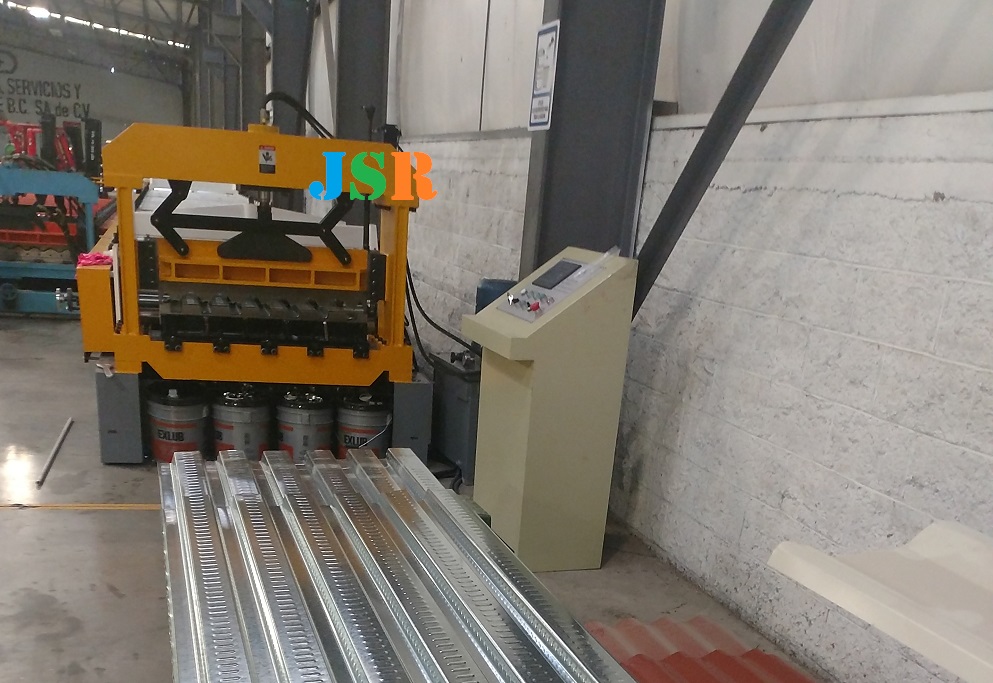

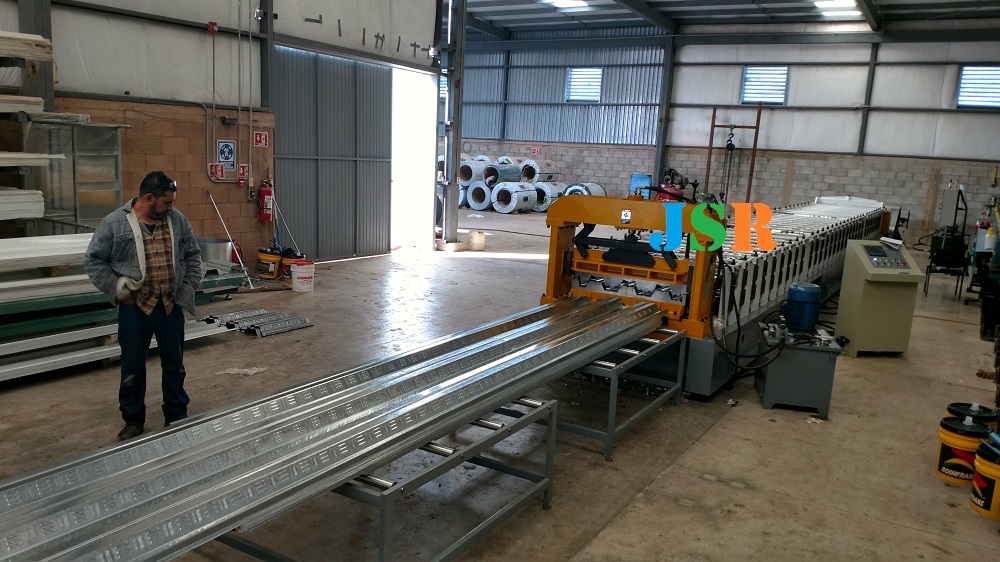

deck machine working video in customer factory
