IBR Roofing Forming Machine

Share on facebook
Facebook
Share on twitter
Twitter
Share on linkedin
LinkedIn

Description

IBR roofing roll forming machines are popular in South Africa…….

The deep broad design of IBR profile offers excellent drainage combined with optimum weight load capabilities.

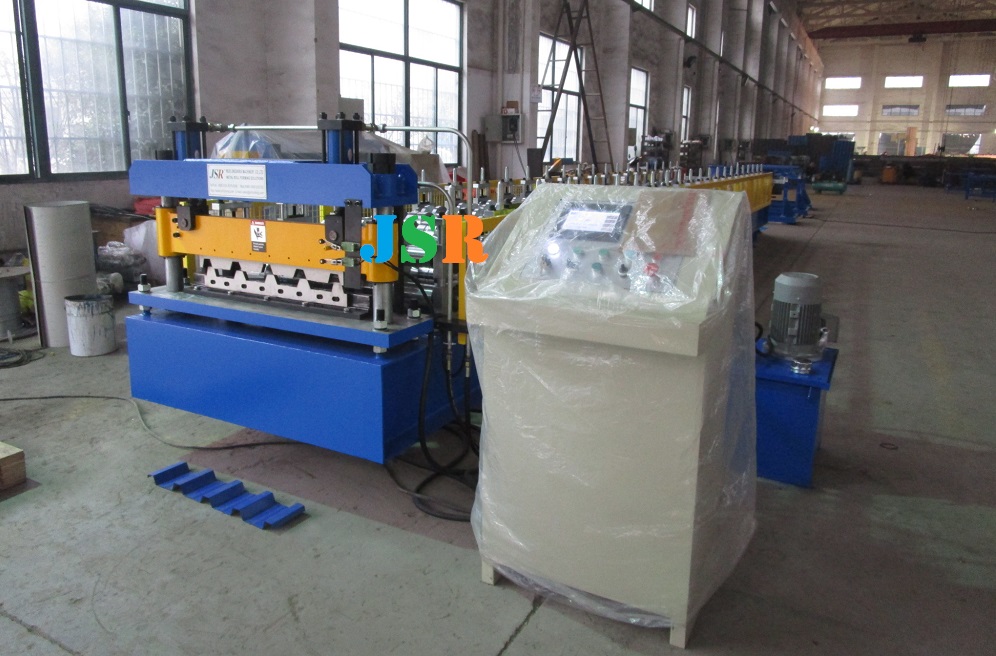

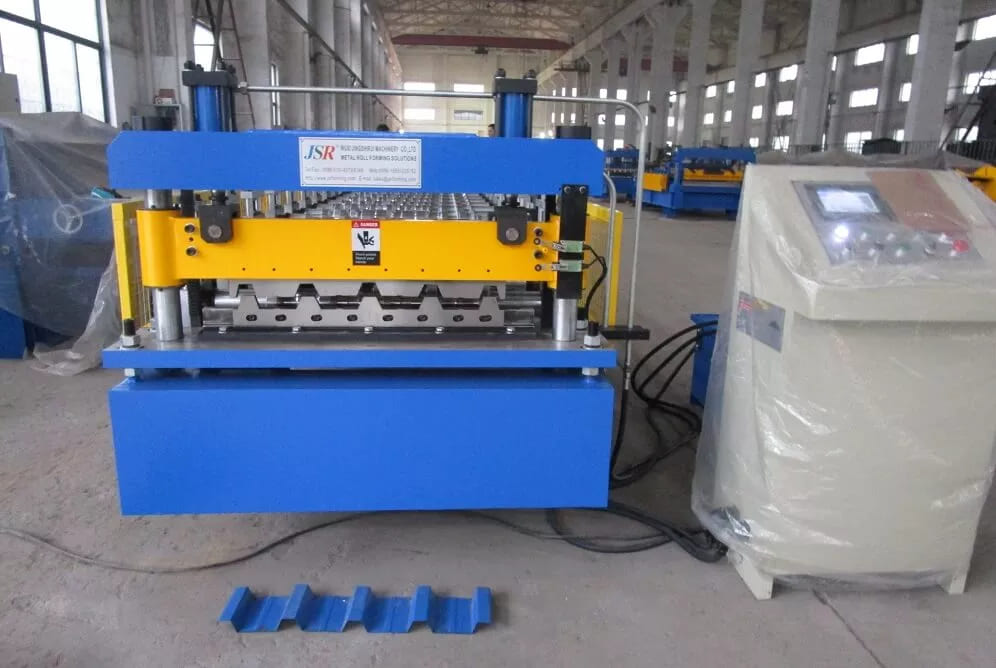

IBR making machine with 22 roller stations, weight about 7 ton, Mitsubishi control system.

Advantage of JSR roofing sheet roll forming machine

【High Efficiency】working speed about 20m/min or 45m/min .one shift or 8 hours can Produce 9600m or 18900m
【Long Life use】 usual roofing machine weight 8-10 ton according to profiles,we use 13-15 ton raw material for the machine, so machine is strong and stable. Solid shafts diameter 75mm, rollers plated with 0.05mm hard chrome to improve hardness and also anti-rust. Cutting frame with heat treatment to avoid deformation in future. Cut blade material CR12 with quench treatment.
【High Precision】Base are processed on Gantry milling for smooth.Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance. Base are processed on Gantry milling for smooth.

【Automatic & Easy Operation】Safe and easy to operate with Mitsubishi or Siemens control system.

【excellent service】Technicians and engineers can be sent to your factory to install the machine and train your workers if you required.

Malawi customer buy this IBR sheet forming machines, also buy curving machine for IBR sheet, corrugate sheet forming machine, ridge forming machine

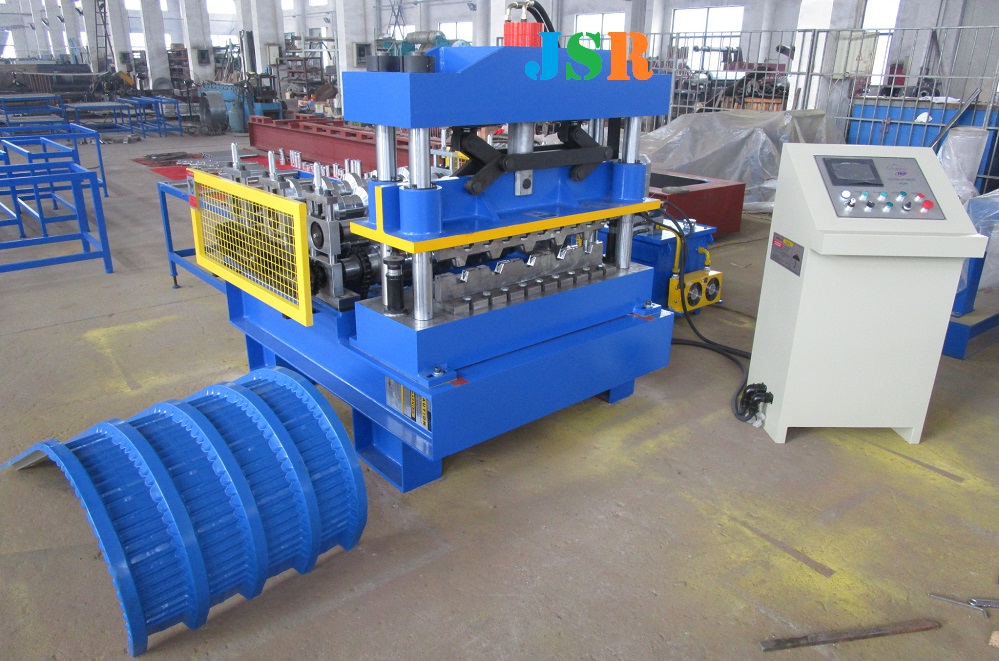

most customers buy IBR sheet forming machines, also buy this IBR CRIMPING forming machines

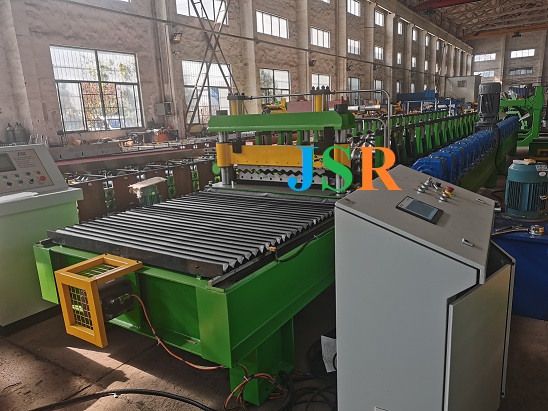

this corrugated sheet machine can make thin material 0.18mm and hard material 550mpa, also most required in south africa

ridge cap forming machine, ridge cap cover on the top of ibr roofing and corrugate sheets

Specifications

Technical Details

Machine Specifications
Weight About 9000kgs
Size About 7m x 1.7m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material PPGI and PPGL Coils
Thickness 0.3-0.6mm
Coil width 925mm
Yield Strength 550Mpa
Main Technical Parameters
Quantity of forming rollers stations 20
Diameter of forming rollers shafts 75mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 7.5kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement



  • Layout drawing of machine (reference only)

APPLICATION

JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced

Operate easily , work automatically with PLC controller control.

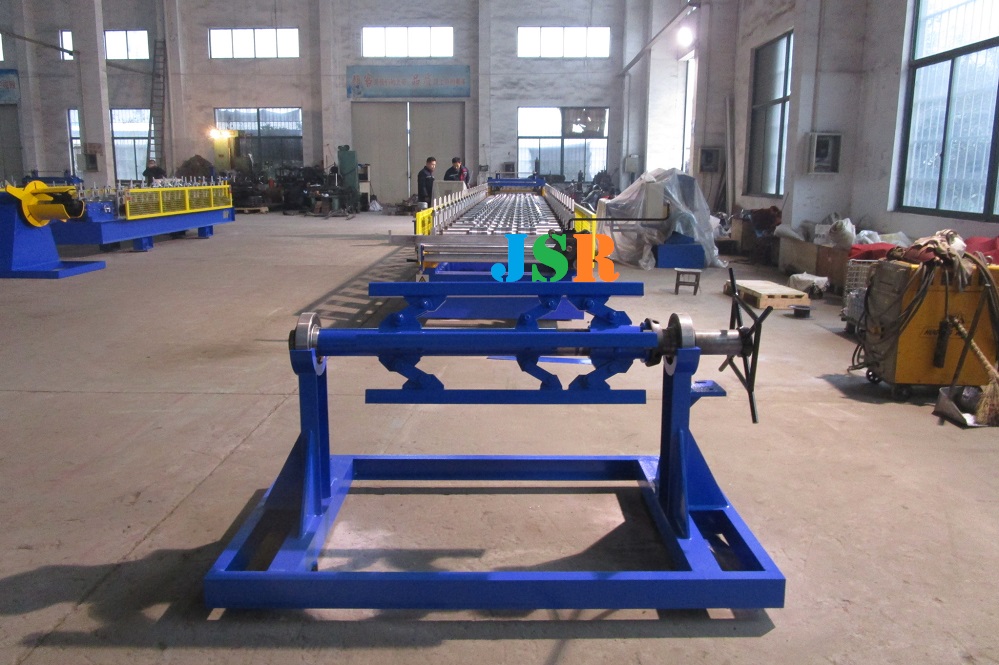

Decoiler- forming-cut – run out
