Description

Hot Perforated Angle Bar Rollformer – Jingshirui is the best Perforated Angle Bar Rollformer supplier in China.

The second angle bar machine is capable to make material thickness1.5-4mm, powered by 11kw main motor,7.5kw hydraulic motor, roller material is GR15 mould material,

if to make angle bar upto 4.5mm, speed to 20m/min, this angle forming machine for your reference,

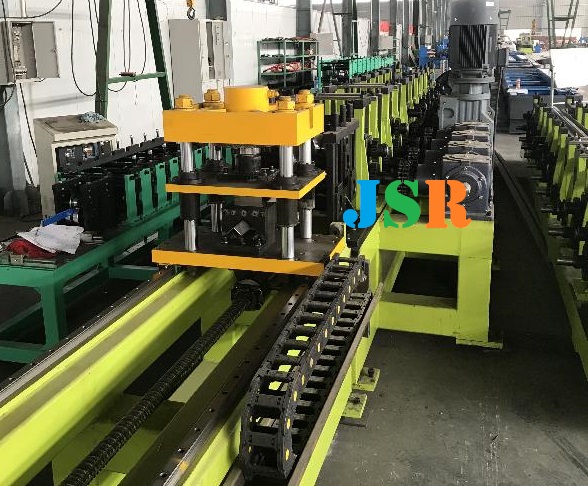

non stop cut and gearbox move the forming machine.

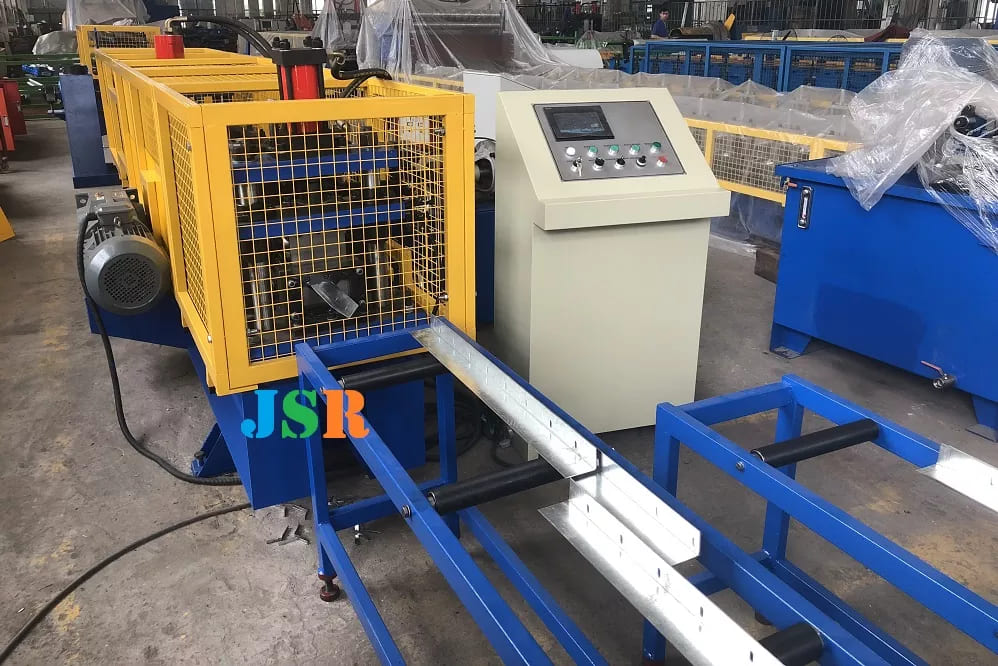

This angle bar machine make raw material thickness 0.3-0.7mm, one time make three angle bar, more productive and efficiency

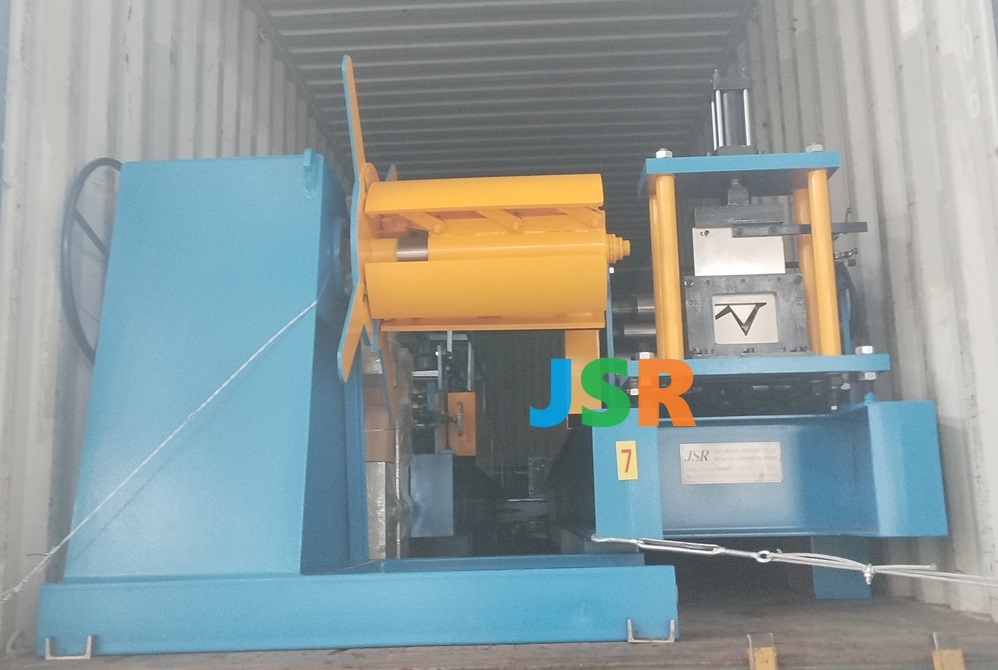

work flow : decoiler – punch hole- slit to three pieces- forming – cut

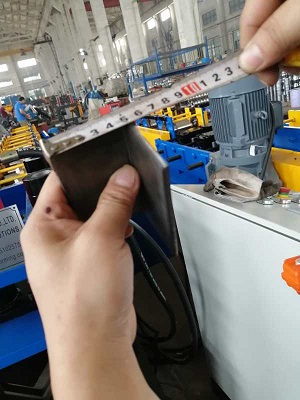

this 4mm angle bar line , special rollers designed to process both side , therefore both side is round cornered, which will not cut hands.

Specifications

Technical Details

Machine Specifications
Weight About 6500kgs
Size About 10m x 1.6m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 1.5mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations about 16

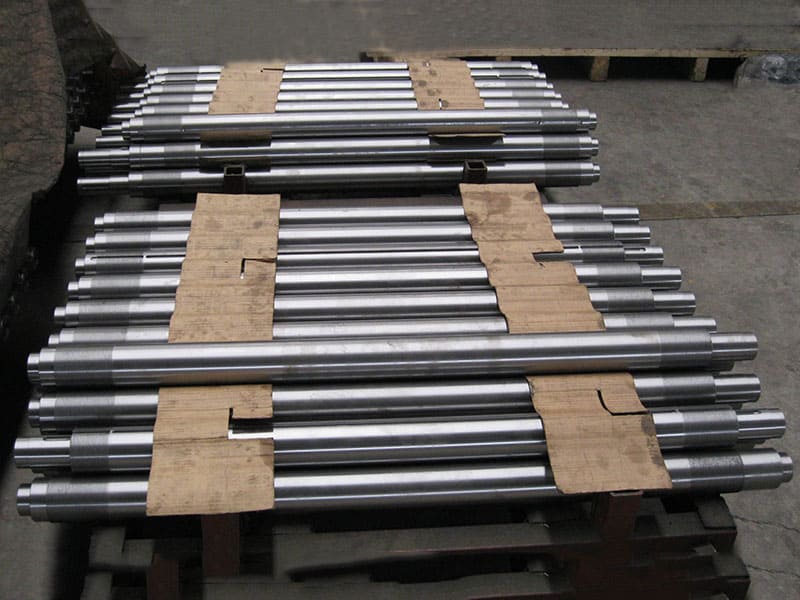

Diameter of forming rollers shafts 75mm
Roll Forming Speed 15-20m/min

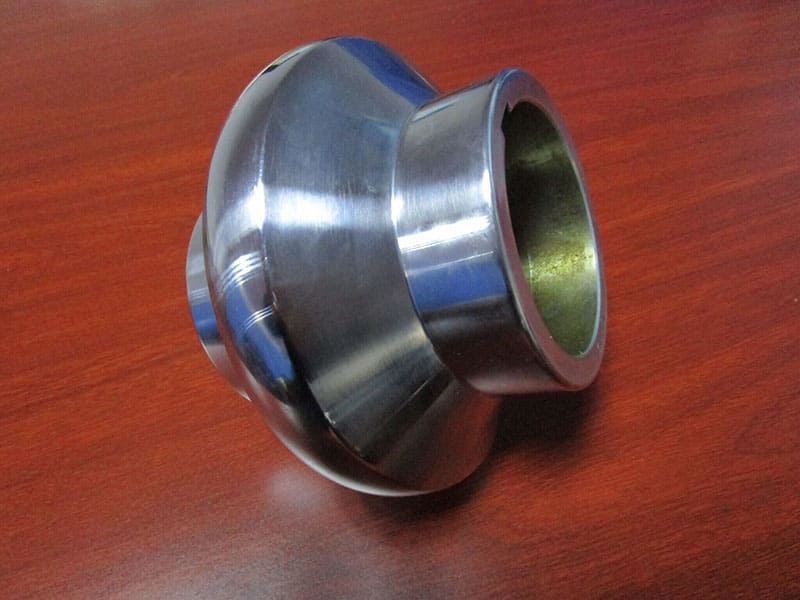

Forming rollers material GR15 with quench treatment
Cutter material CR12 mould steel, with quenched treatment

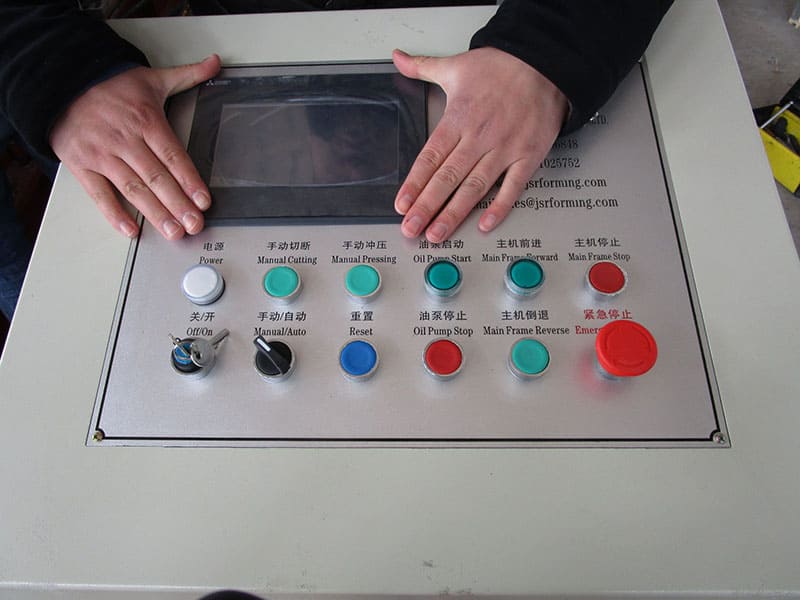

Controlling system PLC and Converter
Electric Power requirement Main motor power: about7.5kw
Hydraulic unit motor power: about3kw
Electric voltage According to customer’s requirement



Perforated Angle Bar Rollformer

Angle bar, also known as “L-bar”, “L-bracket” or “angle iron, is a metal in the form of a right angle. Steel angle bar is the most widely used

  1. support to structures
  2. reinforce corners and edges
  3. transport heavy objects
  4. sheving units and prop frames
