Description

down pipe machine or Downspout forming machine make precise and well sealed roof drain pipe, leader is a pipe for carrying rainwater from a rain gutter.

Advantage of metal down pipe;

galvanized steel guttering resists thermal expansion and contraction, which means that it remains unaffected from sudden fluctuations in temperature. Steel has an excellent lifetime value, as it can be recycled.

The downpipe forming machine we produce is customized according to the specific requirements of customers, such as specification and raw materials. The machine is installed and tested before leaving the factory. After receiving the machine, the customer can start production once connect wires and tubes. We randomly send instructions to tell how to operate. Of course, we also have corresponding videos for reference. Technicians Can also be sent to customer factory for guidance and training if necessary.

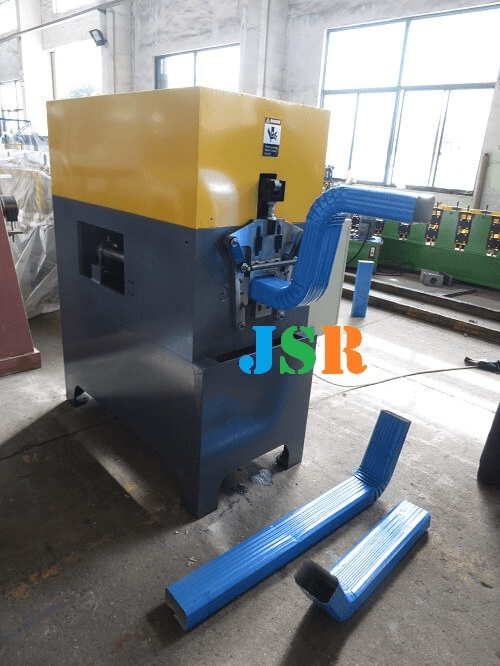

the downpipe roll forming machine also work with elber machine, which make flat pipe to curve according to construction requirement.

Specifications

Technical Details

Machine Specifications
Weight About 5000kgs
Size About 11m x 1.2m x 1m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.5-0.8mm
Coil width 325mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 20-22
Diameter of forming rollers shafts 60mm
Roll Forming Speed 8-12m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Motor of roll forming machine: 5.5kw
Motor of sawing cutter: 3kw
Motor of elbow machine: 1.5kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Roll Forming system 1 set
Sawing Cutting system 1 set
PLC control box 1 set
Elbow machine 1 set
Run outs tables 1 set

Layout of downpipe machine
Downpipe Roll Forming Machine

APPLICATION

Fascia covers to protect timber against splitting flaking and peeling.
Gutter minimise the risk of serious water damage to buildings.
Downpipe is bridge let water pass from gutter to a local stormwater.
JSR machinery factory can manufacture fascia cover machine, gutter machine , downpipe machine with high quality and reasonable price to you, you will emjoy one stop purchase from us.

We already sell half round gutter machine, square gutter machine, fascia cover machine to Australia.

Machine work automatically, operate easily.
Decoiler- forming-cut – run out

Downpipe, Gutter and Fascia Forming Machin
