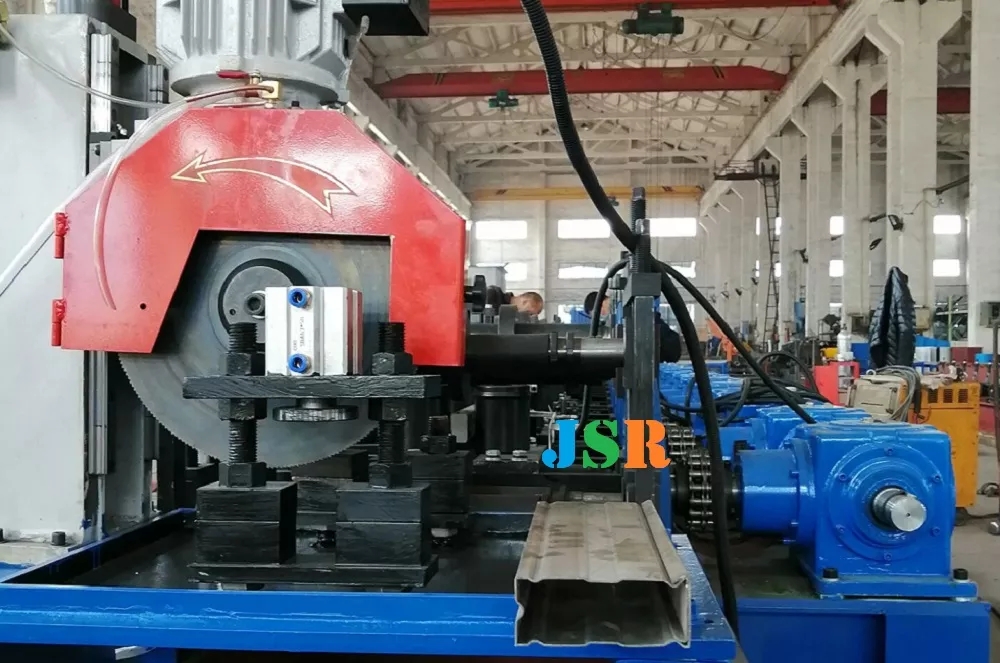

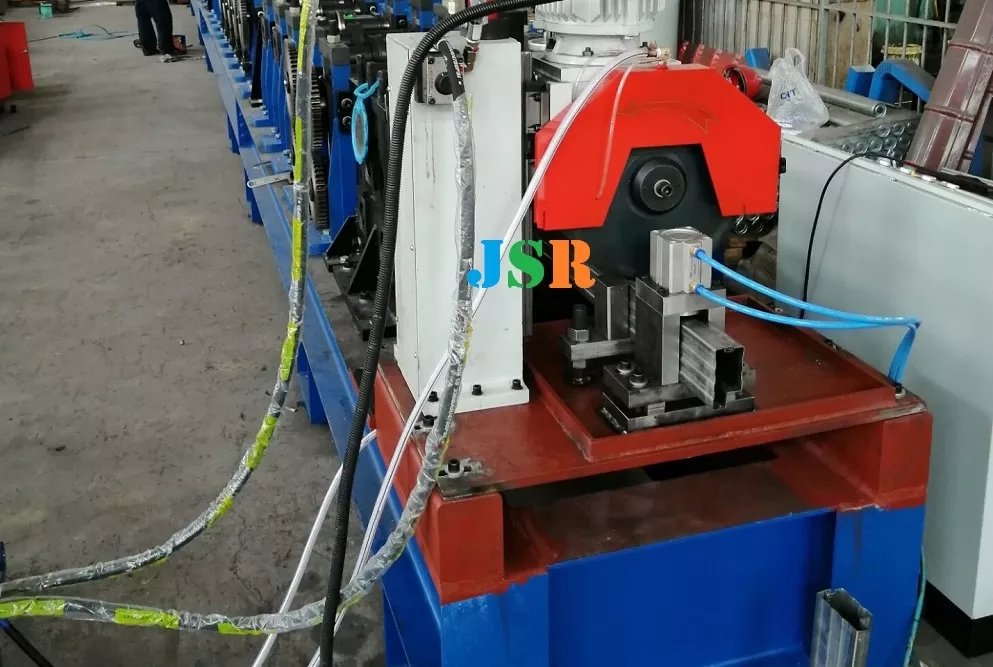

Pallet Rack Step Beams Forming Machine

Share on facebook
Facebook
Share on twitter
Twitter
Share on linkedin
LinkedIn

Description

teardrop stepbeam forming machine ,Pallet Rack Step Beams Forming Machine to make step beams, heavy-duty steel rails connect to the uprights to form a secure level of pallet storage.

Pallet Rack Step Beams Forming Machine is capable to make many sizes of step beams to suit for market requirement,  make different sizes by adjust some spacers between rollers.

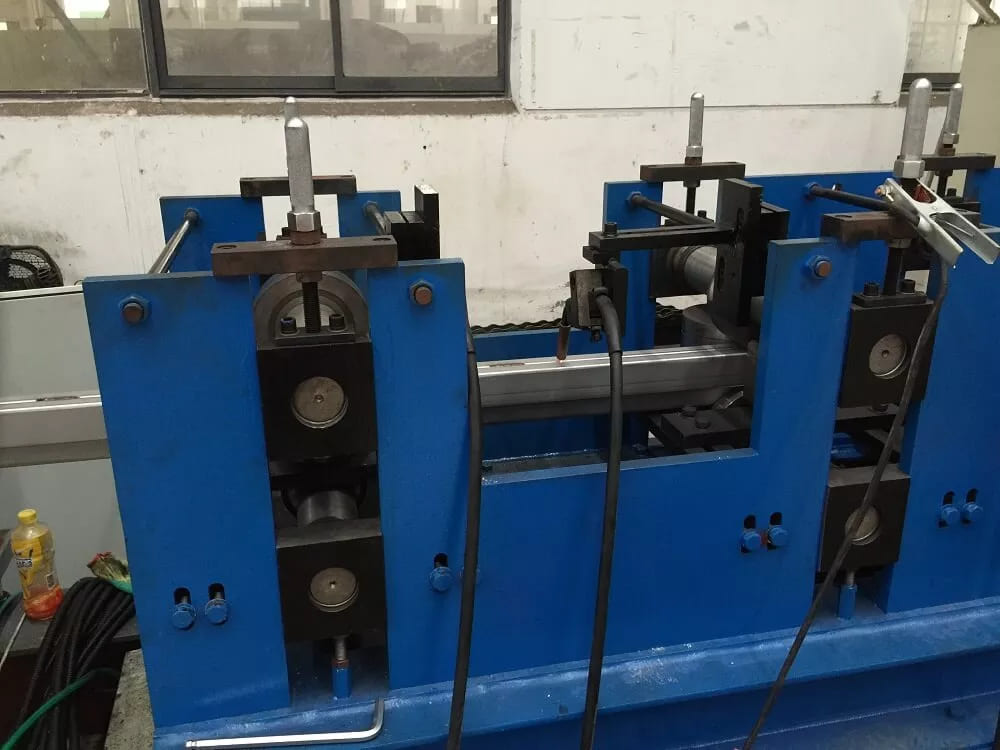

Traditionally, step beams are welding together by workers,for this step beams machine, there are welding device on the machine to weld step beams, some customers ask co2 protective welding, some customers ask for argon protective welding.

and now , Customers ask for stepbeams without welding to environment and safty concern, step beams machine without welding developped, you will see stepbeams are connected well by roll forming.

Main features of step beams forming machine

suitable material thickness 2mm

main motor power 30 kw

about 26 roll stations , about 16m length



Specifications

Technical Details

The Line’s Specifications
Weight About 10000kgs
Whole line’s dimension About 25m x 2m x 1.6m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized or Galvalume Coils
Thickness 2.0-2.5mm
Coil width 238mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 22-26
Diameter of forming rollers shafts 82mm
Roll Forming Speed 8-10m/min
Production Speed 4-6m/min
Forming rollers material CR12 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: about15kw
Hydraulic unit motor power: about 5.5kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Leveling system 1 set
Roll Forming system 1 set
Hydraulic Cutting system 1 set
PLC control box 1 set
Hydraulic unit 1 set
Run outs tables 1 set

Application of stepbeams

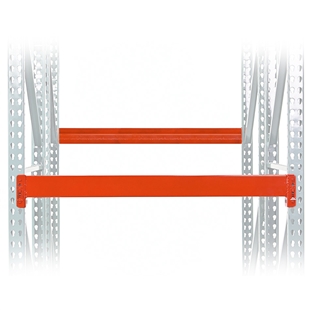

stepbeams Also known as crossbeams, these heavy-duty steel rails connect to the teardrop uprights to form a secure level of pallet storage.

Sold individually (2 beams required per level)

Compatible with most teardrop style uprights

14 gauge steel construction

Abrasion-resistant finish

1-5/8″d step allows wire or wood decking

Adjusts on 2″ centers for custom configurations

Built-in safety clips lock into place when beam has been properly installed

Wuxi Jingshirui Machinery Factory, (JSR) specialized in all kinds of roll forming machines, such as,
Roof &Wall forming Machines,
C/Z Purlin roll forming Machines,
Floor Deck rolling Machines,
Cable Tray forming Machines,
Walk Board Scaffolding Planks making Machines,
Guardrail Forming Machines,
Rack Machines and Step Beam lines,
Dry Wall machines,
and other machines designed to customers requirement.
