4mm U Channel Forming Machine

Share on facebook
Facebook
Share on twitter
Twitter
Share on linkedin
LinkedIn

Description

Quality 4mm U Channel Forming Machine suppliers & exporter – all products made in China.

Specifications

Technical Details

Machine Specifications
Weight About 5500kgs
Size About 8m x 1.6m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow

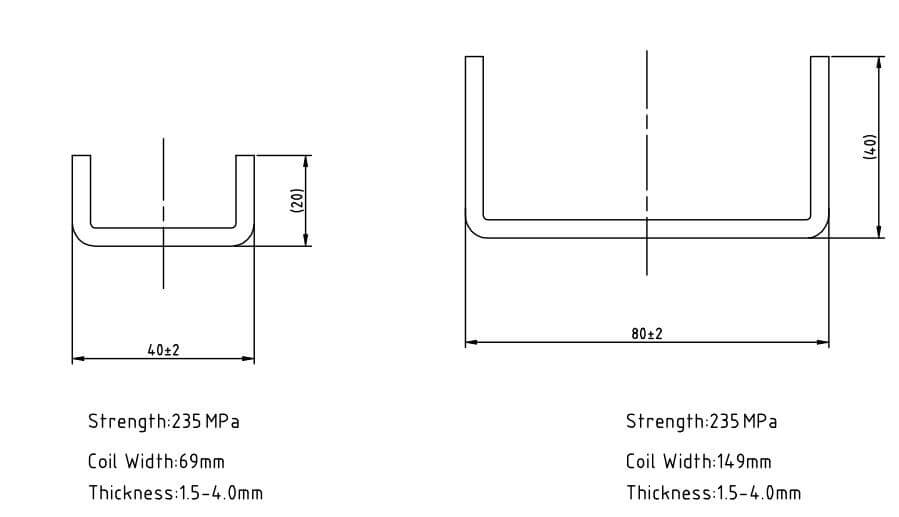

Suitable Raw Material
Material Galvanized Steel Coils
Thickness 4mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations about 10
Diameter of forming rollers shafts 75mm
Roll Forming Speed 15-20m/min
Forming rollers material GR15 with quench treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: about11kw
Hydraulic unit motor power: about 5.5kw
Electric voltage According to customer’s requirement

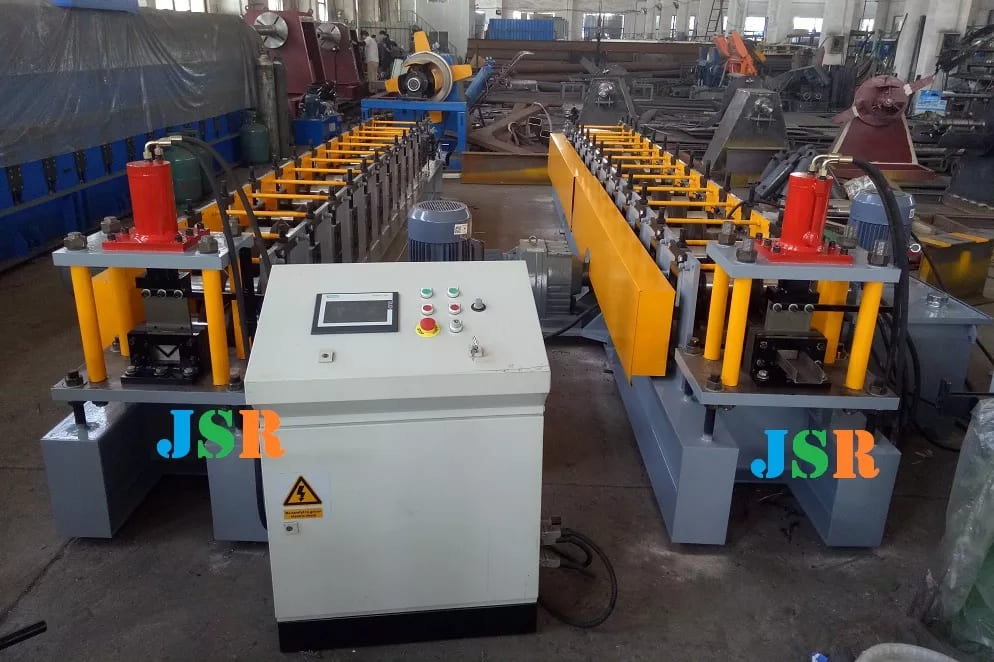

4mm U Channel Forming Machine
