Description

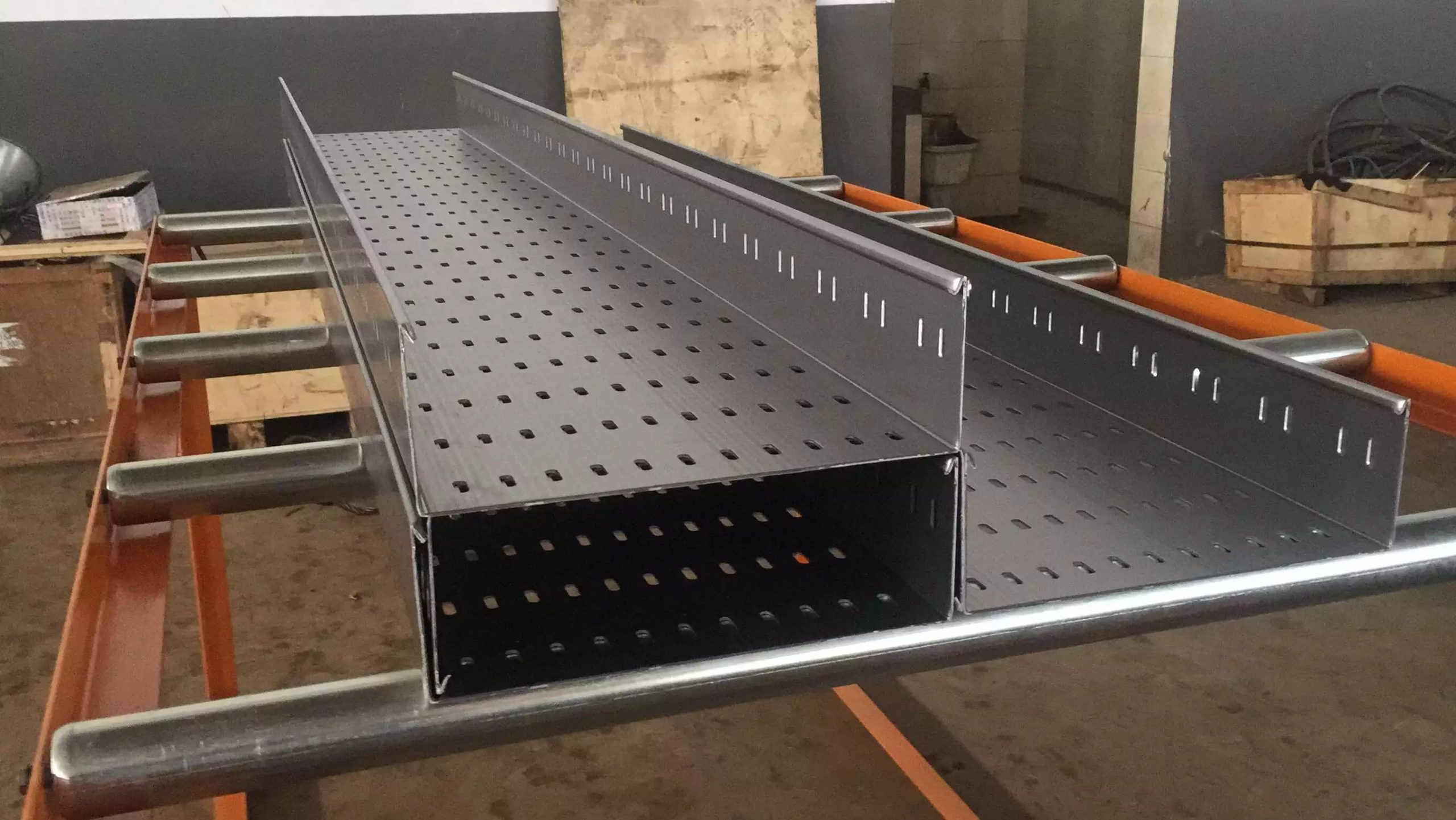

cable tray making machines,cable tray roll forming machine,Cable Tray Production Line from Wuxi JSR machinery factory make different sizes of cable tray, for example cable tray width from 100-600mm, height from 50-100mm. it is easy to change size by moving whole line rollers and cut blade positions.
Process of cable tray forming machines:
decoil material-leveling-punch-forming -cutting
Main features of cable forming machines
suitable material thickness 1.5-2.0mm
gearbox move the cable tray lines
roller material CR12 mould
solid shaft diameter 90mm

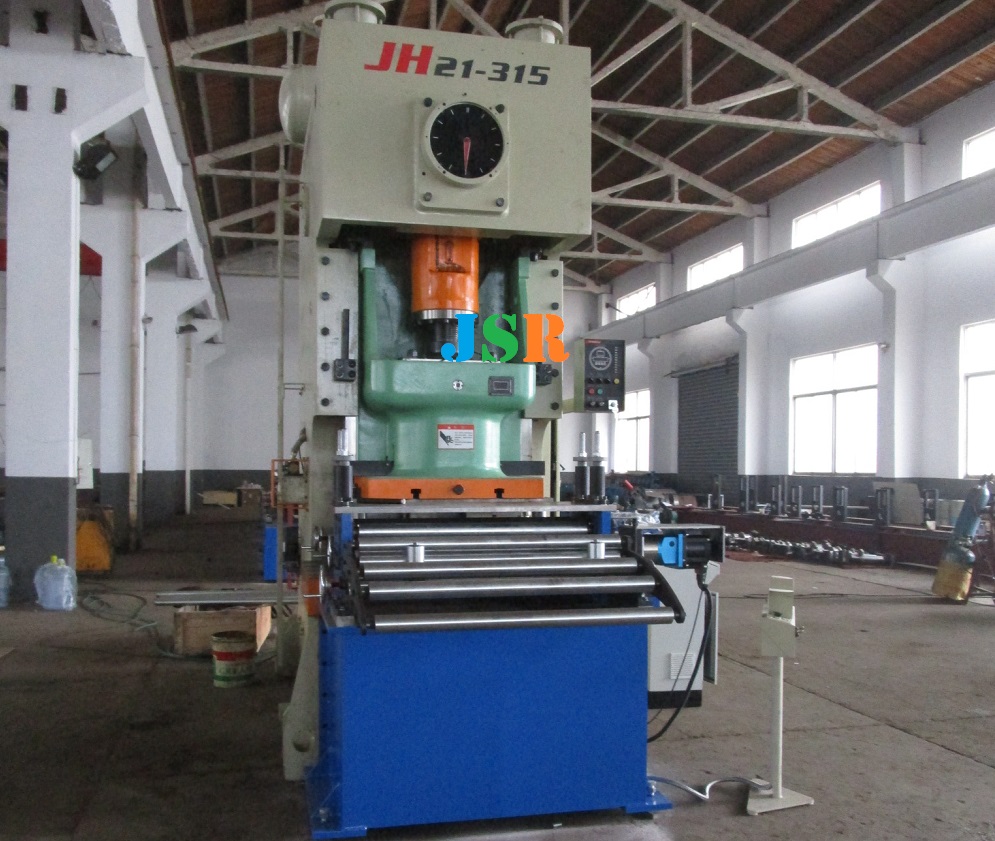

punch capicity315ton
machine weight about 50 ton
another Process of cable tray production line:
decoil material-leveling-punchcand cut-forming
YouTube player
Application of cable tray

a cable tray system is used to support insulated electrical cables used for power distribution, control, and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction

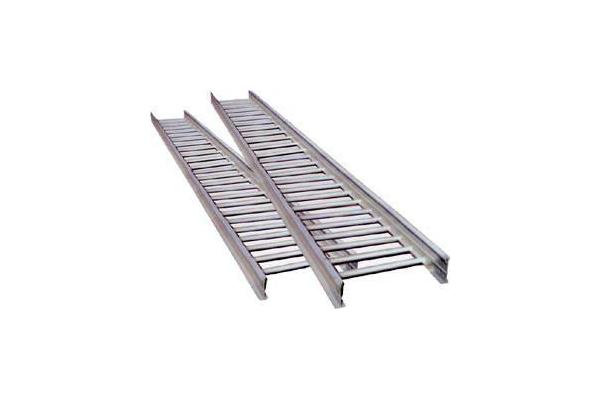

Besides such whole piece cable tray, we also have ladder type cable tray, or T shape cable tray

Wuxi JSR machinery factory make machine for both side,you weld some bars in between for ladder type cable tray.

Specifications

Technical Details

The Line’s Specifications
WeightAbout 50000kgs
Whole line’s dimensionAbout 45m x 3m x 1.5m (length x width x height)
ColorMain color: green
Warning color: yellow
Suitable Raw Material
MaterialGalvanized or Galvalume Coils
Thickness0.6-2.0mm
Coil widthAccording to products size
Yield Strength235Mpa
Main Technical Parameters
Quantity of forming rollers stationsAbout 24
Diameter of forming rollers shafts90mm
Roll Forming Speed10-15m/min
Production Speed4-6m/min
Forming rollers materialGc15 mould steel, with quenched treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPanasonic PLC and Yaskawa Converter
Electric Power requirementMain motor power: 4×5.5kw
Hydraulic unit motor power: 5.5kw
Electric voltage
Main Components
Decoiler (manual and automatic for options)1 set
Guiding device1 set

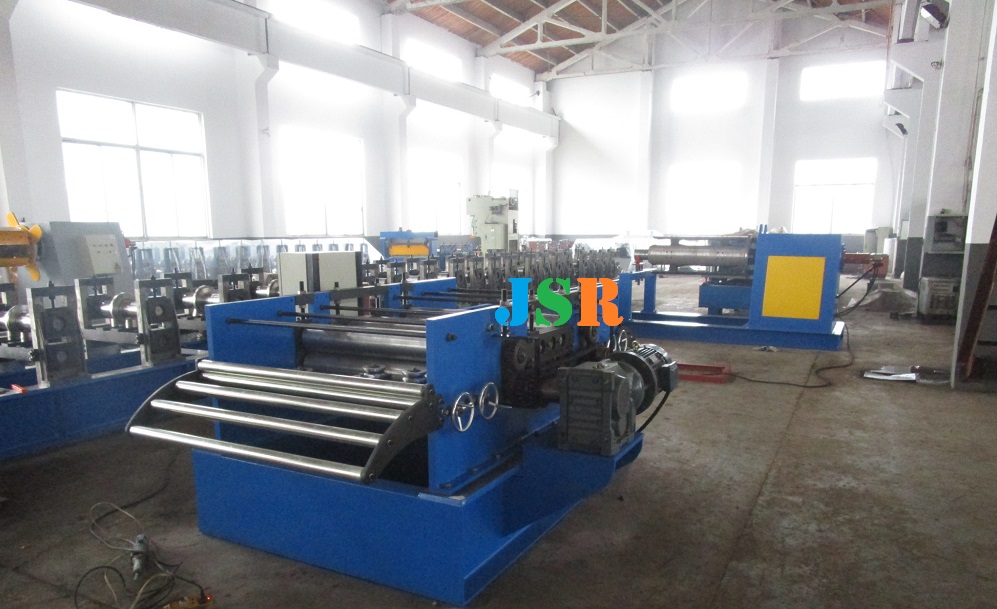

Leveling system1 set
Punching machine1 set

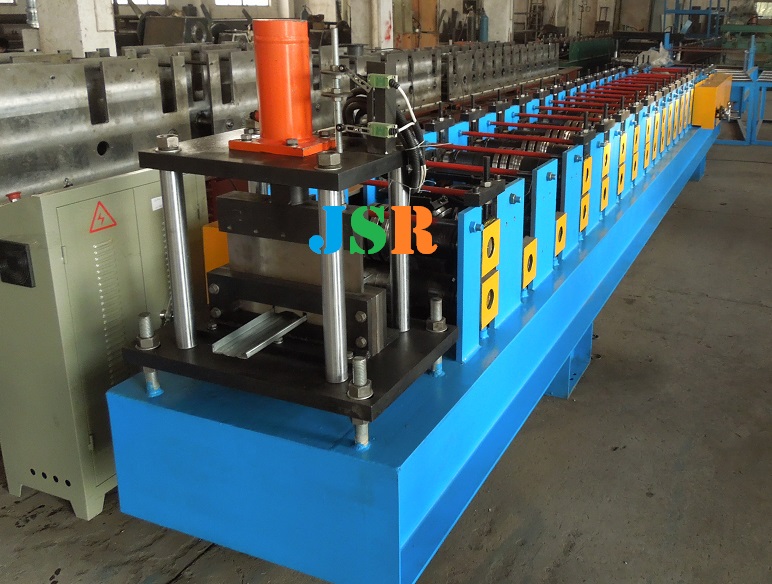

Roll Forming system1 set
Hydraulic Cutting system1 set
PLC control box1 set
Hydraulic unit1 set
Run outs tables1 set
Cable Tray Production Line
Width 100-600mm Height 50-100mm

Wuxi Jingshirui Machinery Factory, (JSR) specialized in all kinds of roll forming machines, such as,
Roof &Wall forming Machines,
C/Z Purlin Machinery,
Floor Deck roll former,
Cable Tray forming Machines,
Walk Board Scaffolding Planks roll Machines,
Guardrail making Machines,
Rack Machines and Step Beam Machines,
Dry Wall roll forming machines,
and other machines designed to customers requirement.
