Trapezoid LT50 profile machine Bulgaria

Facebook
Twitter
LinkedIn

Description

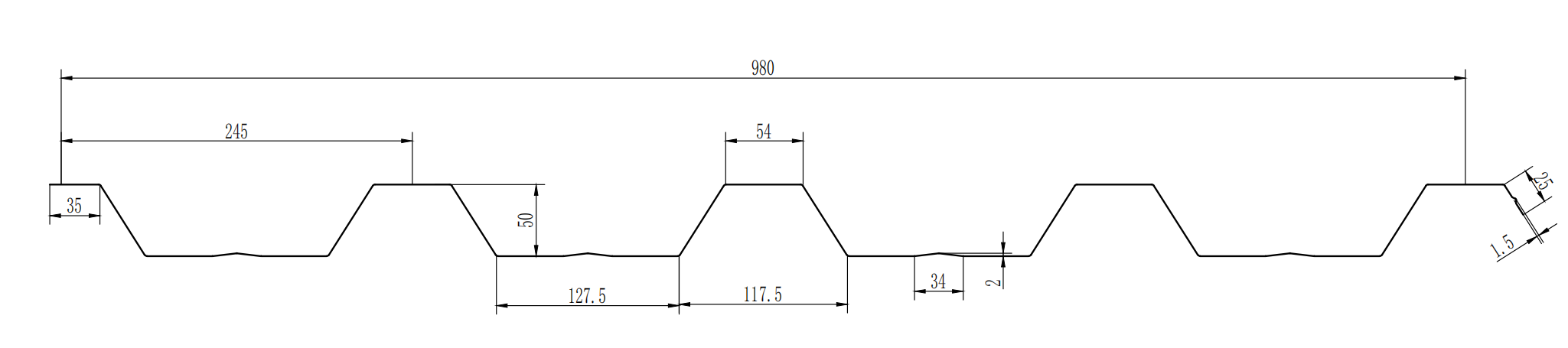

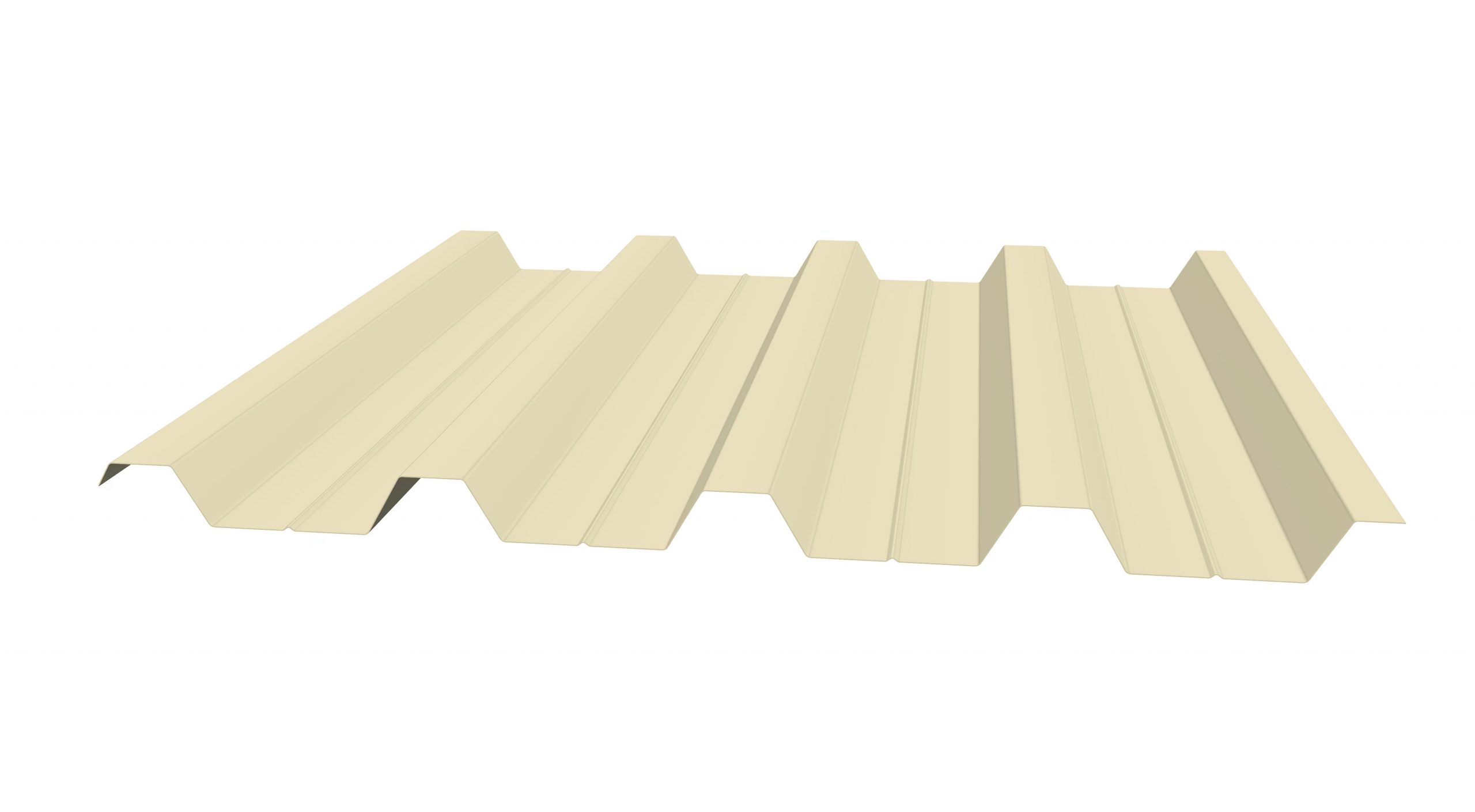

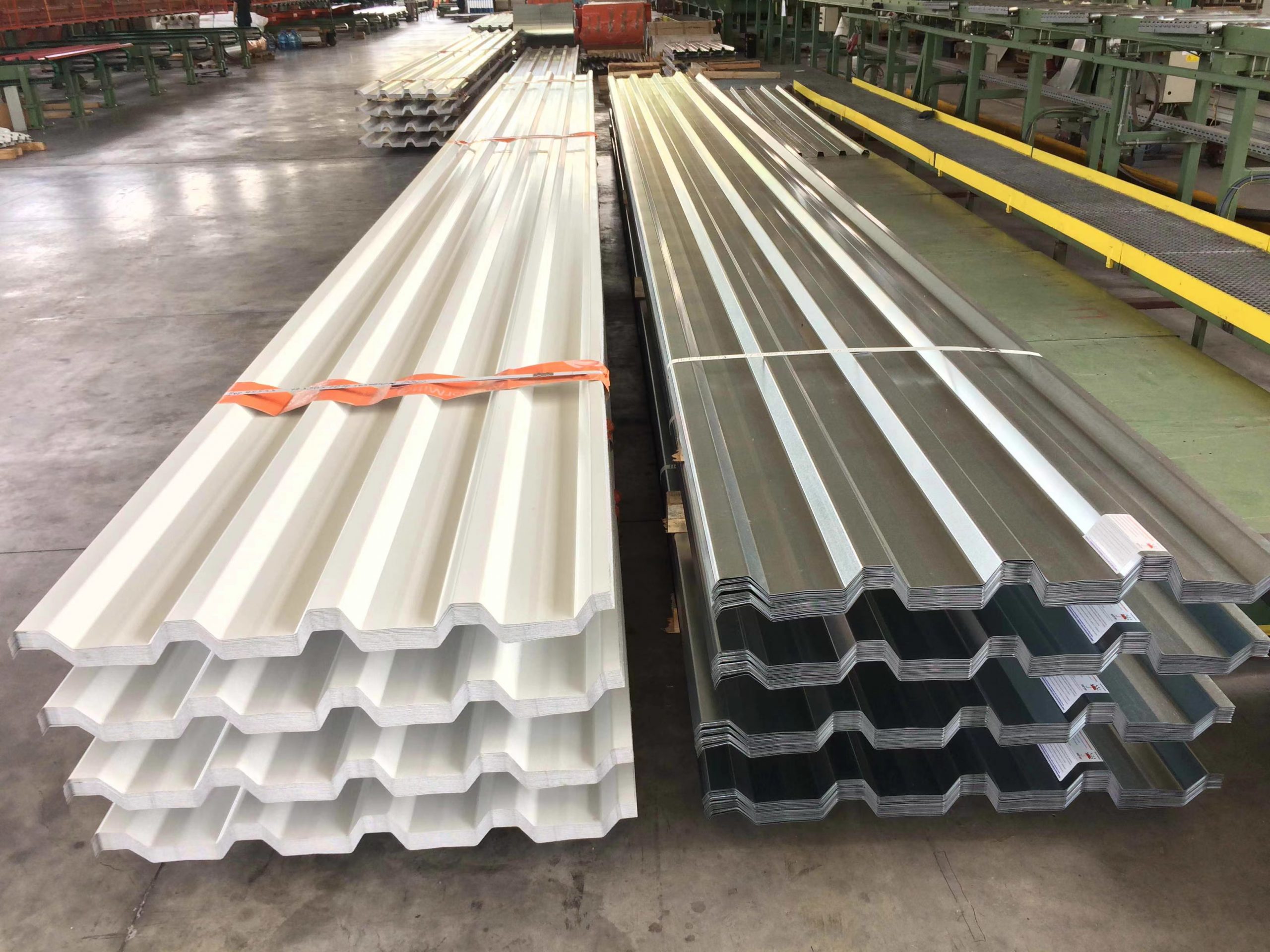

Trapezoid LT50 profile is popular Bulgaria and nearby countries

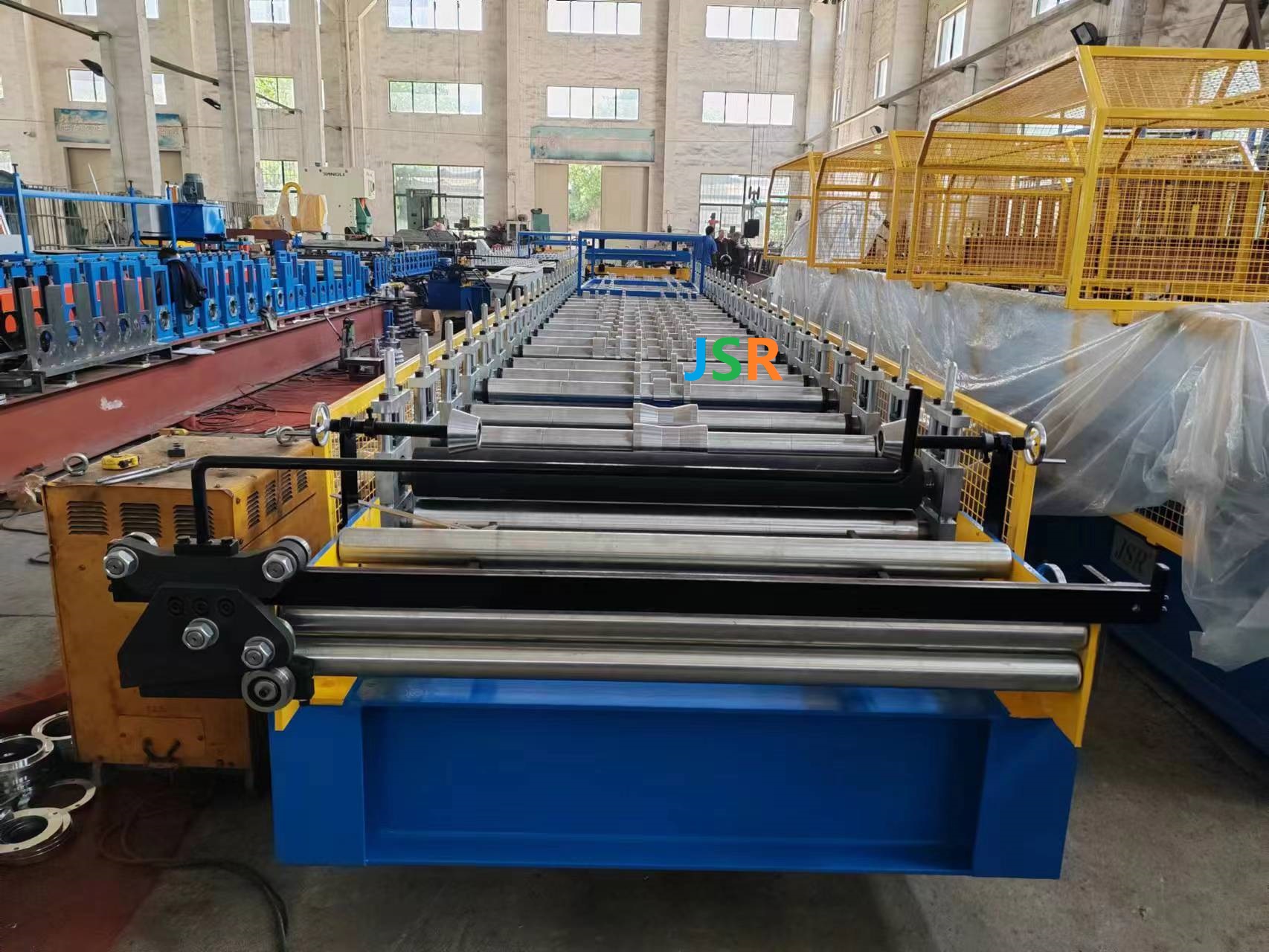

Trapezoid LT50 profile machine summary

mitsubishi or siemens PLC , converter and screen.

main motor power 7.5kw

hydraulic power3kw

26 roller stations.

75mm diameter solid shaft.

suitable for one 40 GP loading.

Specifications

Technical Details

Machine Specifications
WeightAbout 12000kgs
SizeAbout 11m x 1.7m x 1.5m (length x width x height)
ColorMain color: blue
Warning color: yellow
Suitable Raw Material
MaterialPPGI and PPGL Coils
Thickness0.3-0.7mm
Coil width1250mm
Yield Strength235Mpa
Main Technical Parameters
Quantity of forming rollers stations26
Diameter of forming rollers shafts75mm
Roll Forming Speed20m/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 7.5kw
Hydraulic unit motor power: 3kw
Electric voltageAccording to customer’s requirement
