Description

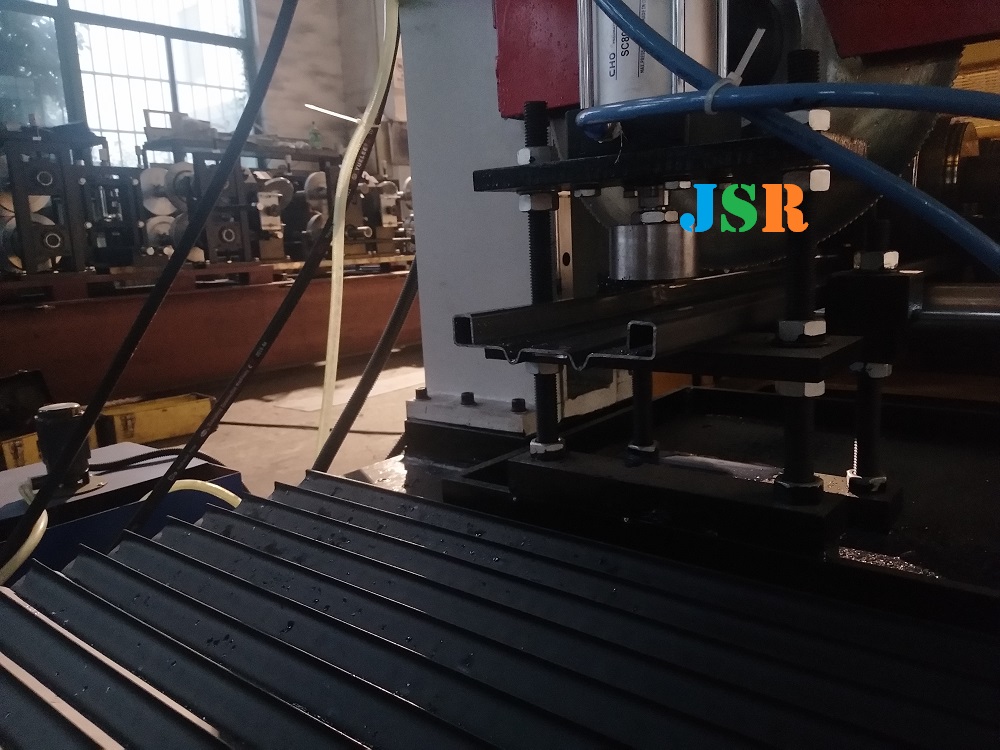

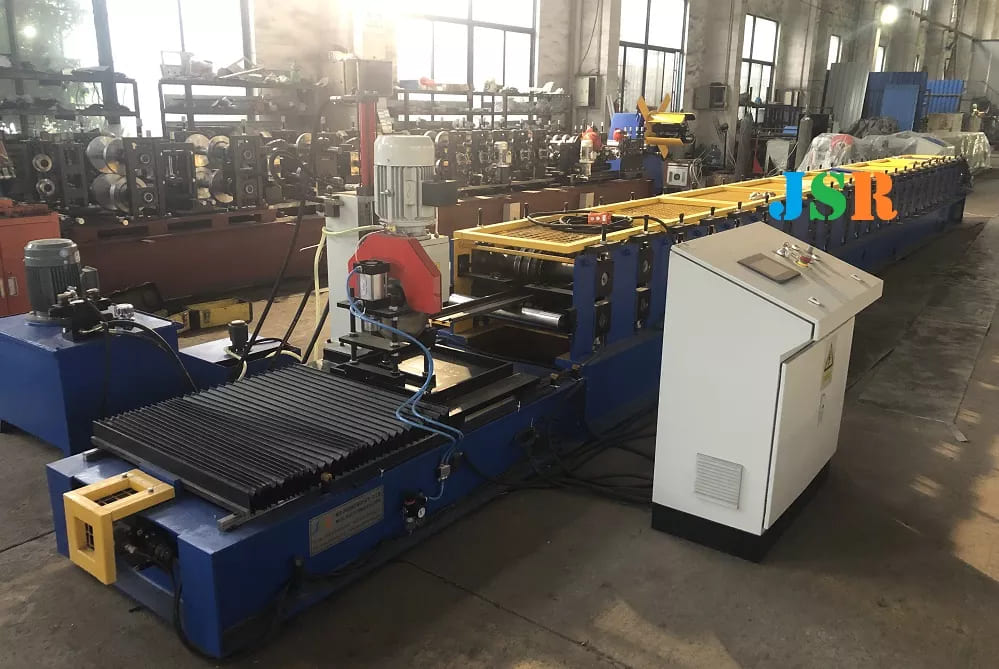

Customer call cross board forming machine, we design according to customized profile.

customized profile roll former adopt non stop or fly saw to cut product with your required length.

working speed about 6m/min

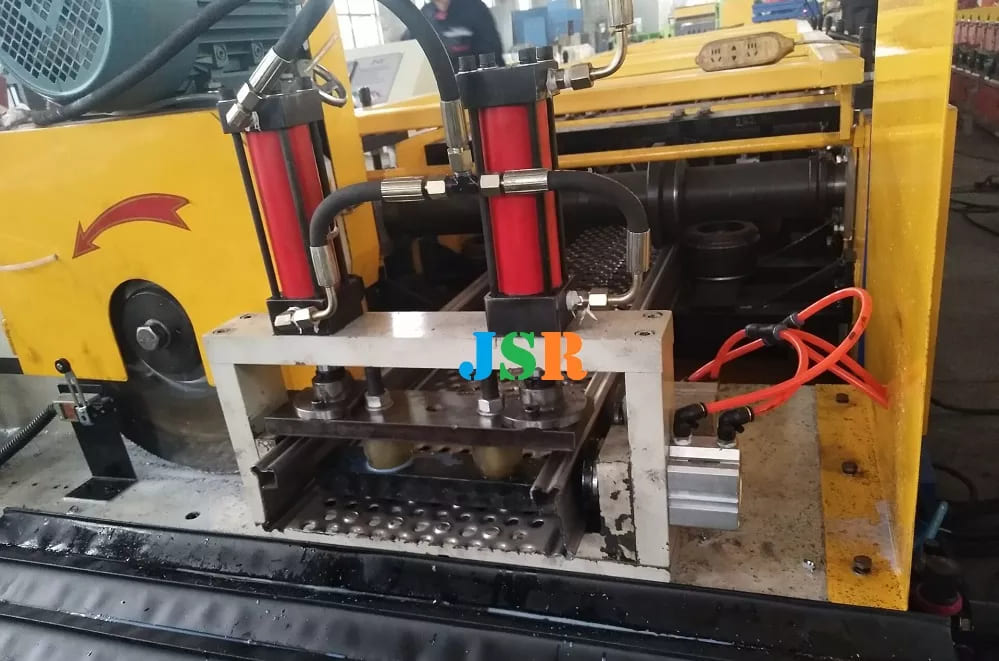

The same customer also buy scafforlding planks machine

and this fly saw roll forming machine



Specifications

Technical Details

Machine Specifications
Weight About 6000kgs
Size About 10m x 1.0m x 1.0m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Stainless steel
Thickness 1.5mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations ABOUT 20
Diameter of forming rollers shafts 60mm
Working Speed about 6m/min
Forming rollers material GCR15 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power:15 kw
Hydraulic station Motor 3kw
