Tile Profile Sheet Forming Machine

Facebook
Twitter
LinkedIn

Description

JSR provice panel roll forming line for roof tile panel, the high precision rollers can roll 0.4-0.6mm raw material with working speed upto 6m/min, high precision controlled by Mitsubishi system guarantee tiles connect very closely to avoid water leakage.

Advantage of JSR roof tile roll forming machine

【High Efficiency】working speed about 6m/min .one shift or 8 hours can Produce 2880m or about 12-15ton coils
【Long Life use usual tile machine weight 10 ton according to profiles,we use 13-15 ton raw material for the machine, so machine is strong and stable. Solid shafts diameter 75mm, rollers plated with 0.05mm hard chrome to improve hardness and also anti-rust. Cutting frame with heat treatment to avoid deformation in future. Cut blade material CR12 with quench treatment.
【High Precision】high precision controlled by Mitsubishi system guarantee tiles connect very closely to avoid water leakage.
【Automatic & Easy OperationSafe and easy to operate with Mitsubishi control system.

excellent serviceTechnicians and engineers can be sent to your factory to install the machine and train your workers if you required.



Profiles of roofing tile forming machine

JSR machinery factory introduce you some popular profiles of steptile forming machines

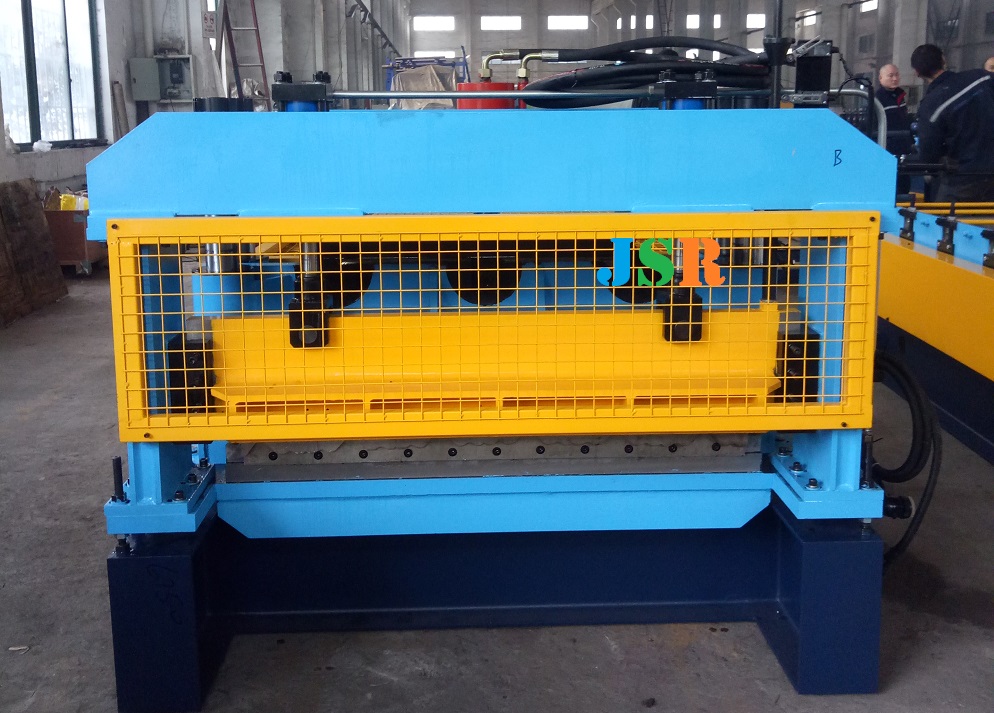

  1. Versatile

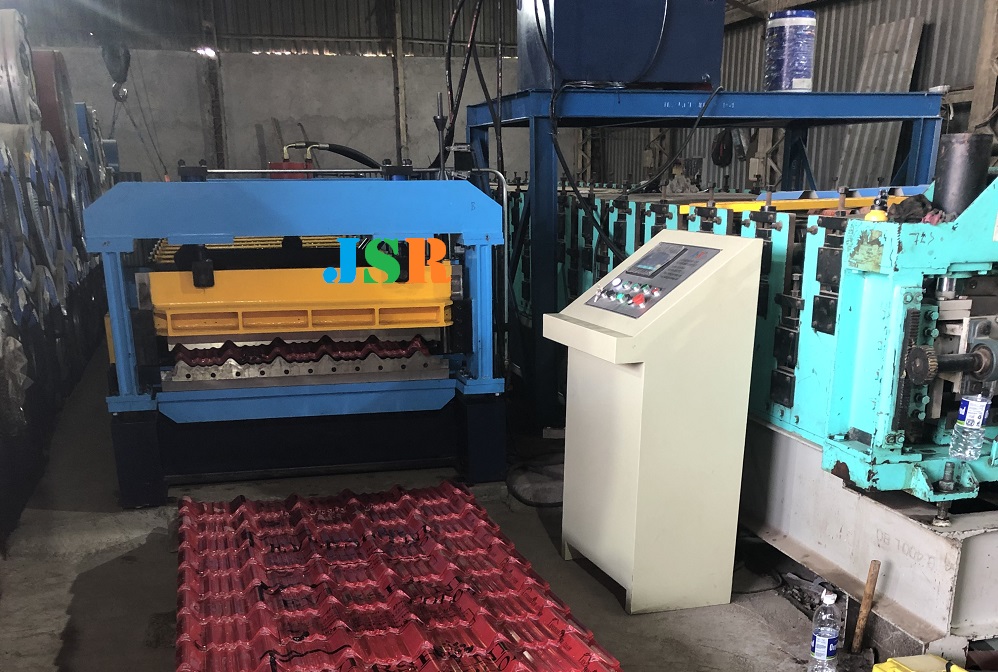

  2. C-tile
  3. Monterrey
  4. European type tile
  5. Mondarin profile
  6. Metecoppo tile
  7. Teja
  8. Galvateja
  9. Machine is designed according to your profiles

20+ standard steptile profiles are available for your reference,of course, we can make custom profiles according to your requirements on profile, raw material, width range and other aspects.

Specifications

Technical Details

Machine Specifications
WeightAbout 9000kgs
SizeAbout 10m x 1.8m x 1.5m (length x width x height)
Suitable Raw Material
MaterialPre-painted Galvanized Steel Coils
Thickness0.4-0.6mm
Coil width1220mm
Yield Strength235Mpa
Main Technical Parameters
Diameter of forming rollers shafts75mm
Roll Forming Speed10-15m/min
Production Speedabout6 m/min

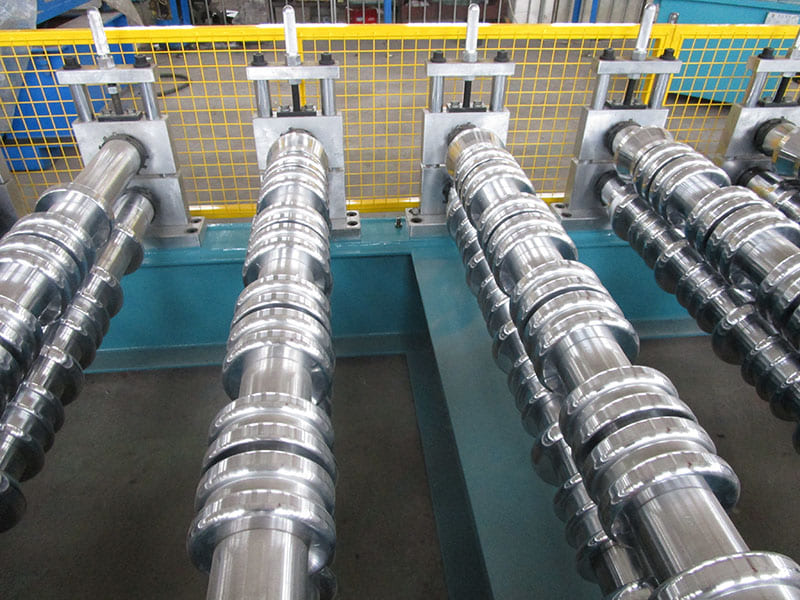

Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 5.5kw
Hydraulic unit motor power: 11kw
Electric voltageAccording to customer’s requirement

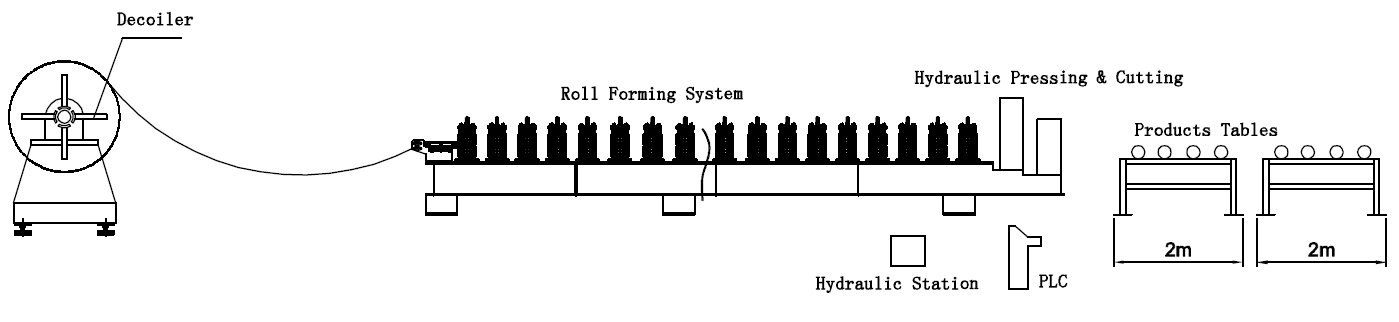

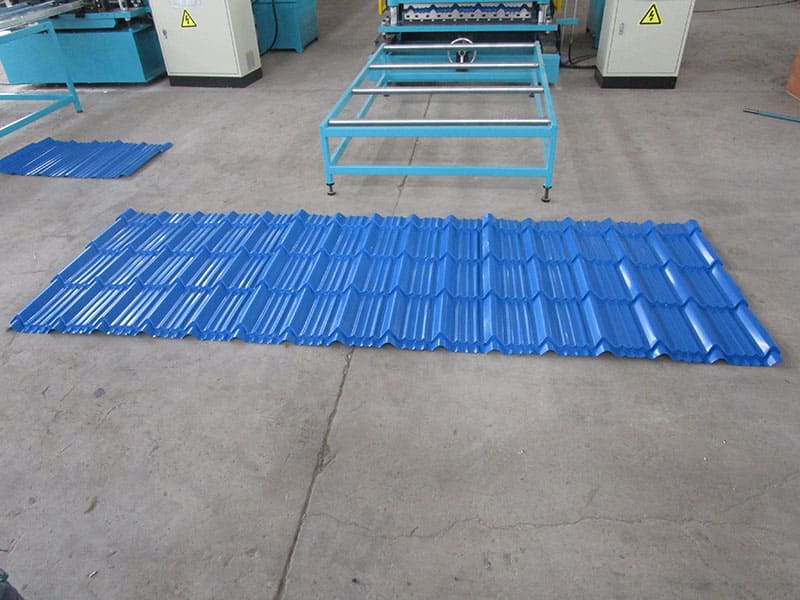

  • Product sample                                                                                                                                       Layout drawing of machine (reference only)

Tile Profile Sheet Forming MachineTile Profile Sheet Forming Machine

APPLICATION

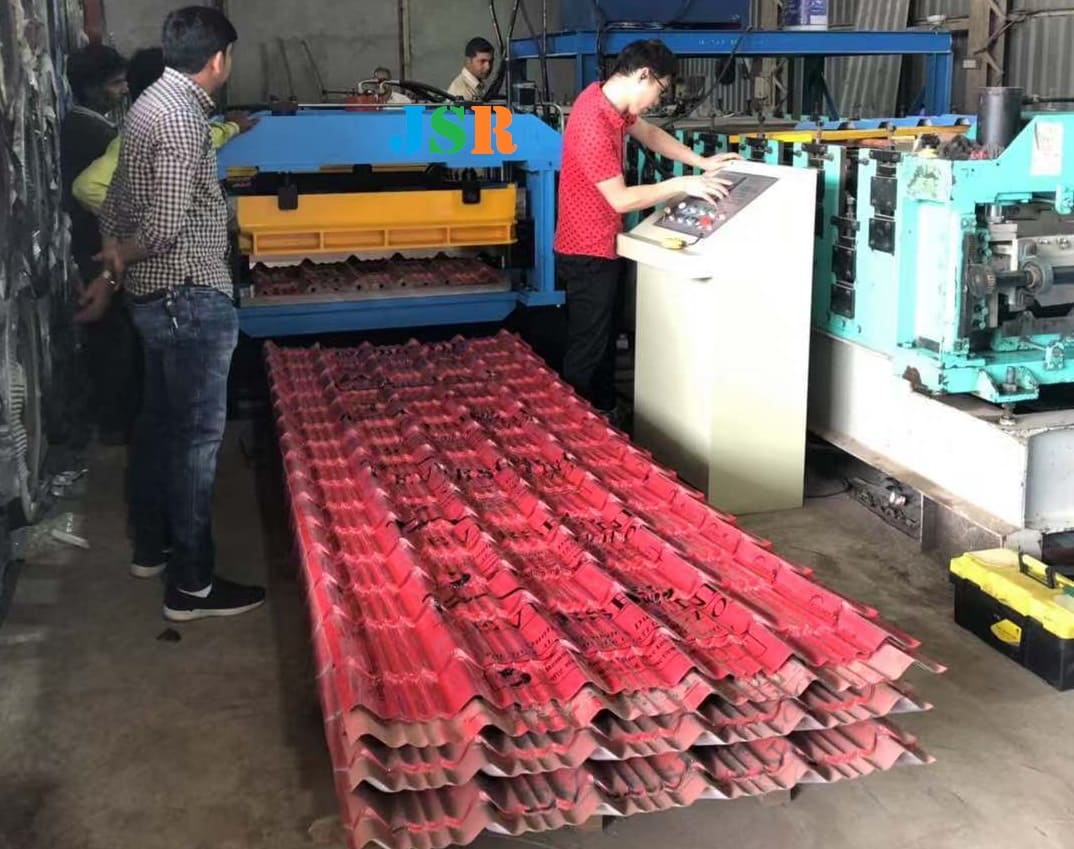

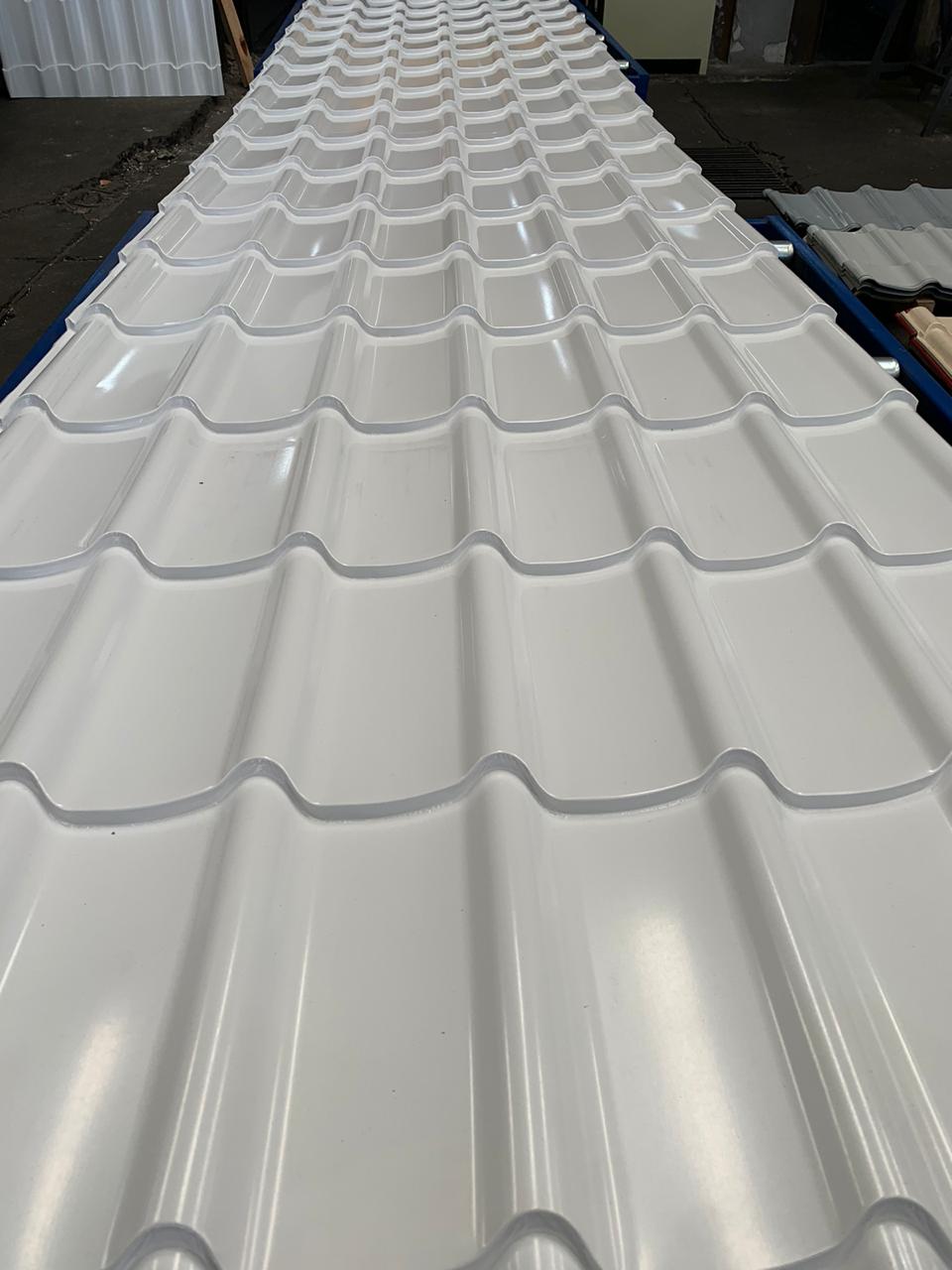

JSR tile forming machine can produce steel sheet tile, which is light weight, durable and beautiful.
Now, we improve machine working speed to 4m/min (include press and cut).

Operate easily , work automatically with PLC controller control.

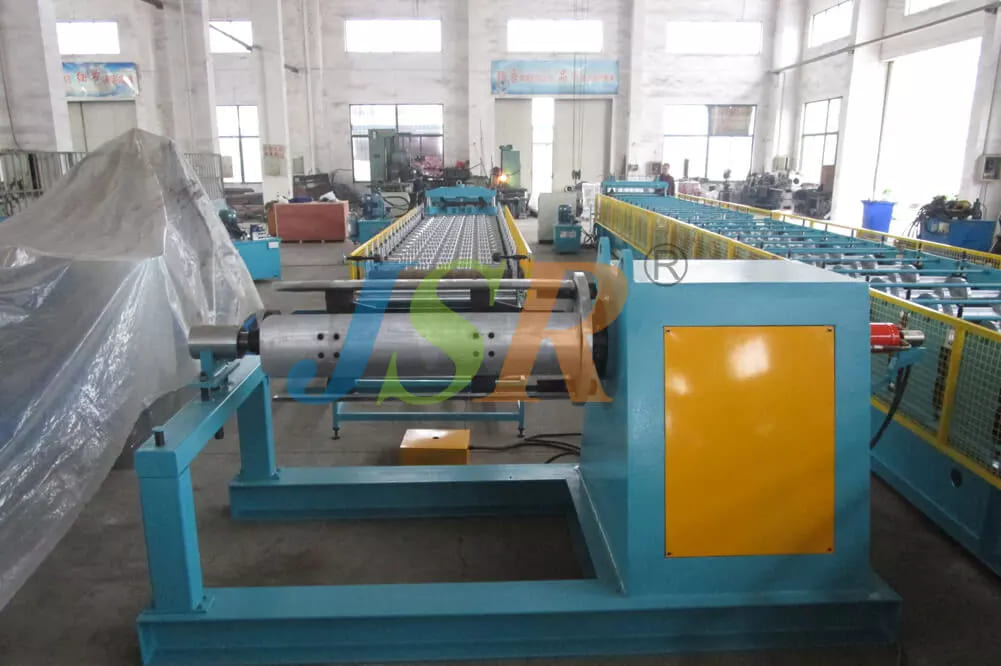

Decoiler- forming- press -cut – run out

Step Tile Roll Forming Machine
