T20 Profiled sheet forming machine

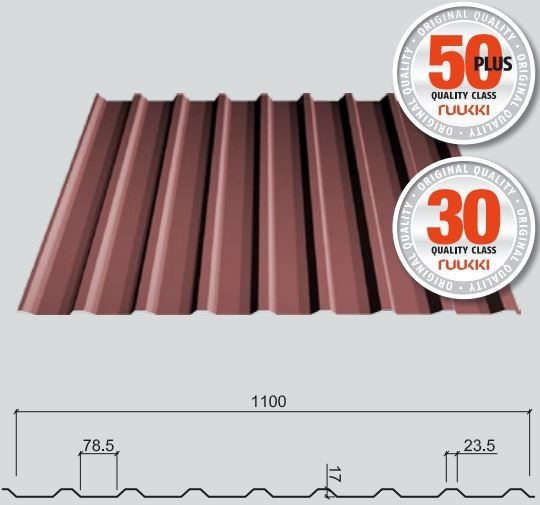

T20 Profiled sheet  is popular in Russia, Bulgaria,Ireland, Poland, Finland, Latvia, Estonia, Lithuania, Ukraine,Azerbaijan…

T20 Profiled sheet forming machine summary

mitsubishi or siemens PLC , converter and screen.

main motor power 7.5kw

hydraulic power3kw

22 roller stations.

75mm diameter solid shaft.

machine weight about 10 ton.

suitable for one 40 GP loading.


Technical Details

Machine Specifications
WeightAbout 10 ton
SizeAbout 11m x 1.7m x 1.5m (length x width x height)
ColorMain color: blue
Warning color: yellow
Suitable Raw Material
MaterialPPGI and PPGL Coils
Coil width1250mm
Yield Strength235Mpa
Main Technical Parameters
Quantity of forming rollers stations22
Diameter of forming rollers shafts75mm
Roll Forming Speed20m/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 7.5kw
Hydraulic unit motor power: 3kw
Electric voltageAccording to customer’s requirement
