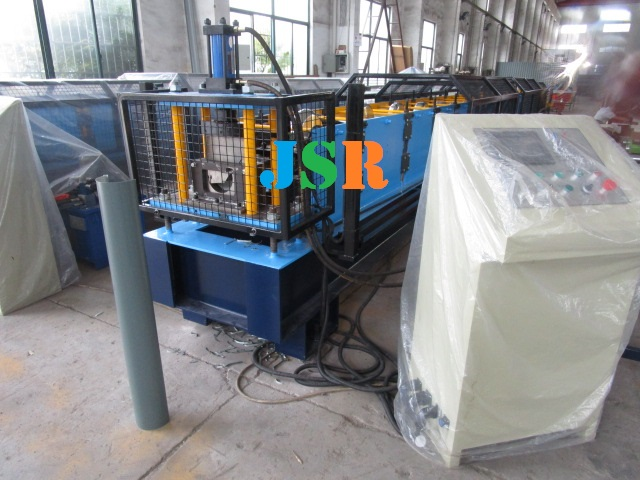

Gutter Forming Machine

Share on facebook
Facebook
Share on twitter
Twitter
Share on linkedin
LinkedIn

Description

Many different  designs of Gutter Forming Machines made to Australia market, Flat, high precision, tolerance within 1mm.
2. 65mm solid shaft is used, and the H-shaped steel is used as the base frame, so that the gutter machine can withstand long-term production without deformation of the machine, thereby ensuring long-term production of gutters;
3. The rollers are processed by CNC machine tools to ensure the accuracy of the rollers, and thus the accuracy of rain gutter.
4.  cut frame is stress-relieved to ensure that it is not deformed during long-term production and makes the gutters smooth.
5. Use Mitsubishi or Siemens operating system with stable performance, simple operation, as long as the input length and quantity are automatically produced by the gutter forming machine, and the cutting length tolerance is within ± 2mm
6. forming speed can reach about 20 meters per minute
7. The machine weighs about 6 tons

Steel guttering are popular. Steel is the most affordable of the metal materials we offer for guttering and is therefore wonderfully cost-effective early on. Steel gutters are stronger than PVCu products and offer a robust system.

Specifications

Technical Details

Machine Specifications
Weight About 6000kgs
Size About 6m x 1.0m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material PPGI and PPGL Coils
Thickness 0.3-0.8mm
Coil width 610mm
Yield Strength 235Mpa
Main Technical Parameters
Diameter of forming rollers shafts 55mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 4kw
Hydraulic unit motor power: 2.2kw
Electric voltage According to customer’s requirement



  •  Product Sample

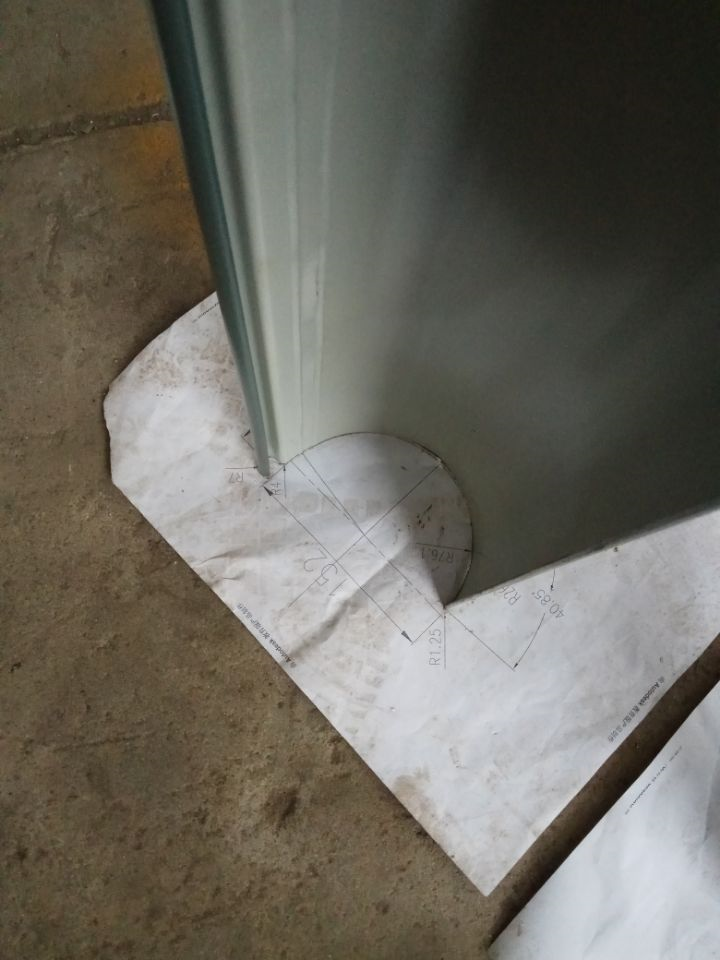

    Product Sample
  • Gutter Forming Machine
    Layout drawing of machine (reference only)

APPLICATION

Fascia covers to protect timber against splitting flaking and peeling.
Gutter minimise the risk of serious water damage to buildings.
Downpipe is bridge let water pass from gutter to a local stormwater.

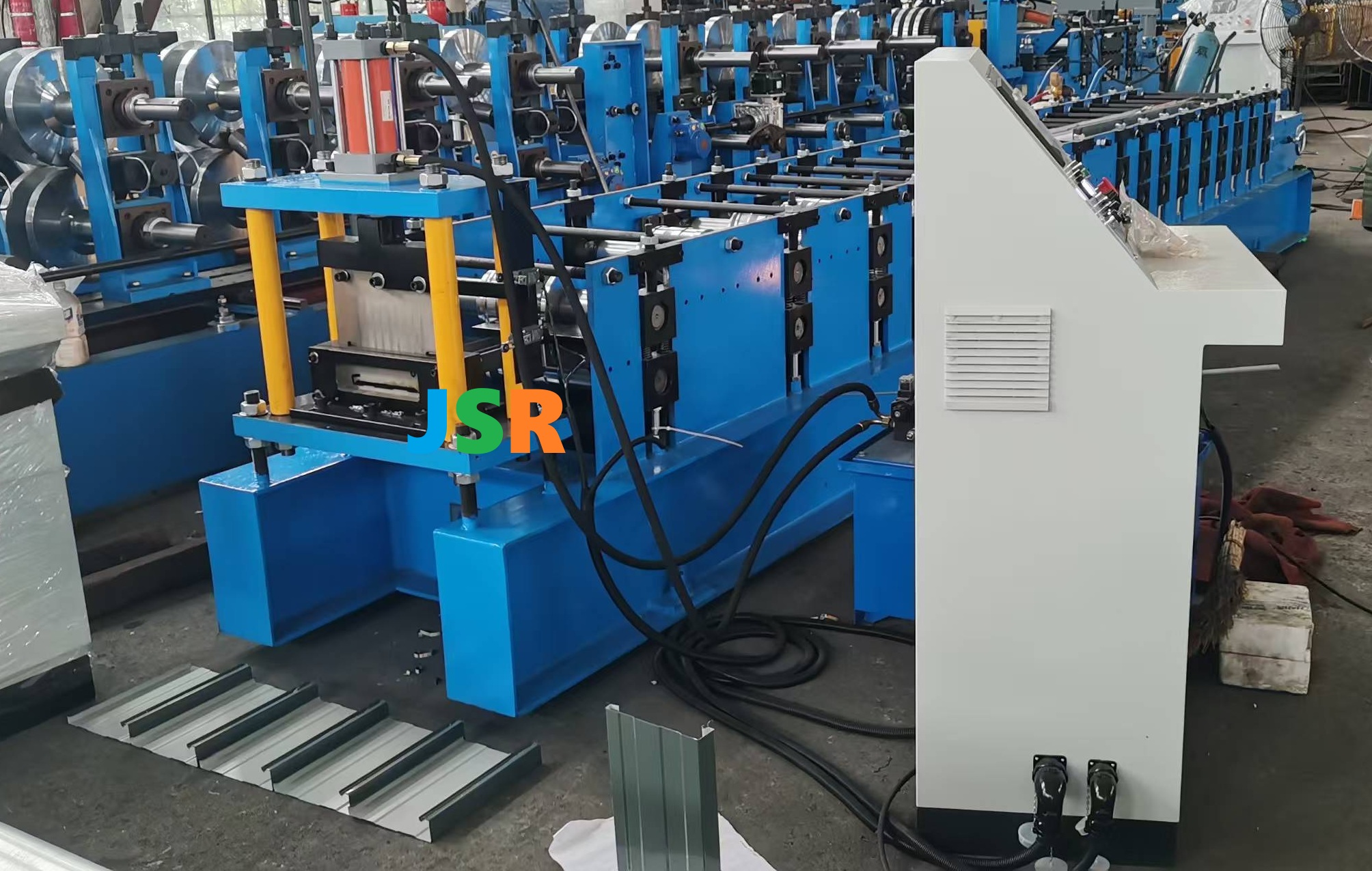

JSR machinery factory can manufacture fascia cover machine, gutter machine , downpipe machine with high quality and reasonable price to you, you will emjoy one stop purchase from us.

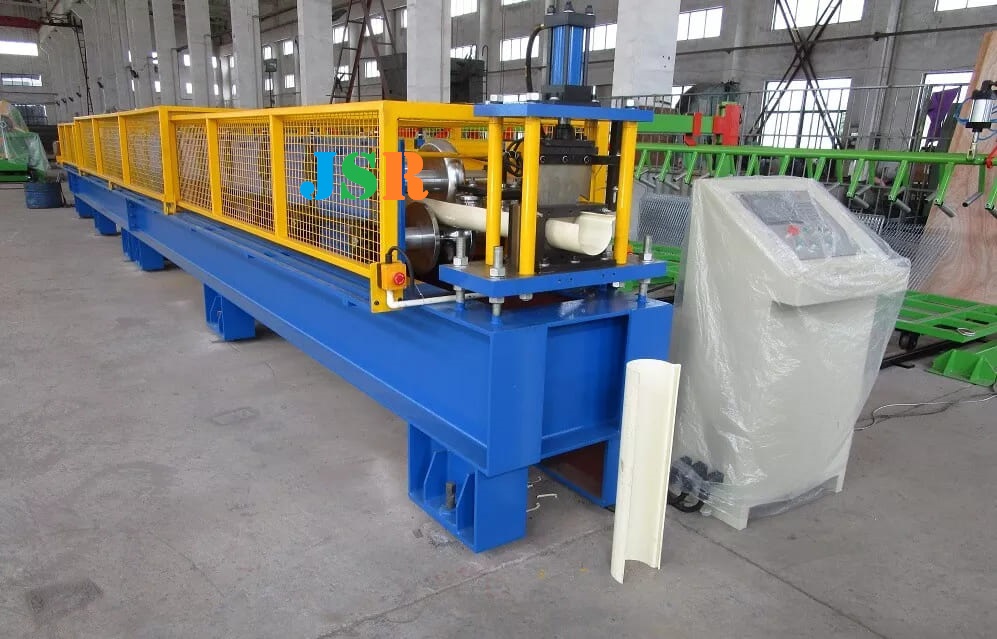

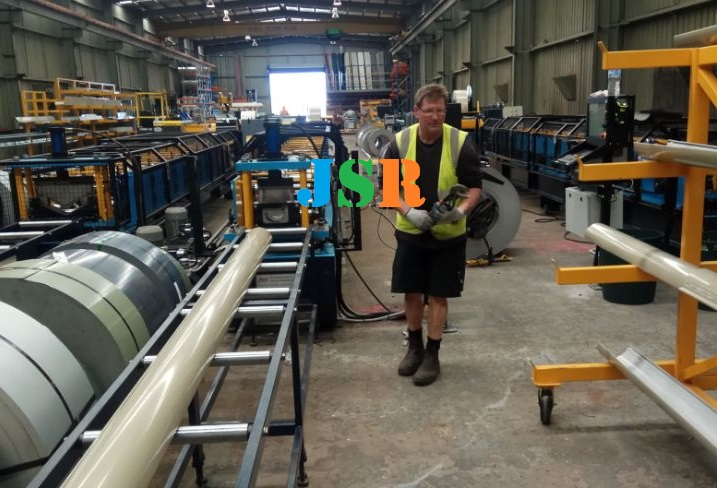

We already sell half round gutter machine, square gutter machine, fascia cover machine to Australia.

Machine work automatically, operate easily.
Decoiler- forming-cut – run out

Downpipe, Gutter and Fascia Forming Machin
