Description

Facsia Formig Machine make steel facsia,Metal Fascia, the modern, good looking and economical alternative to timber, and can be used with any type of roof and gutter system.

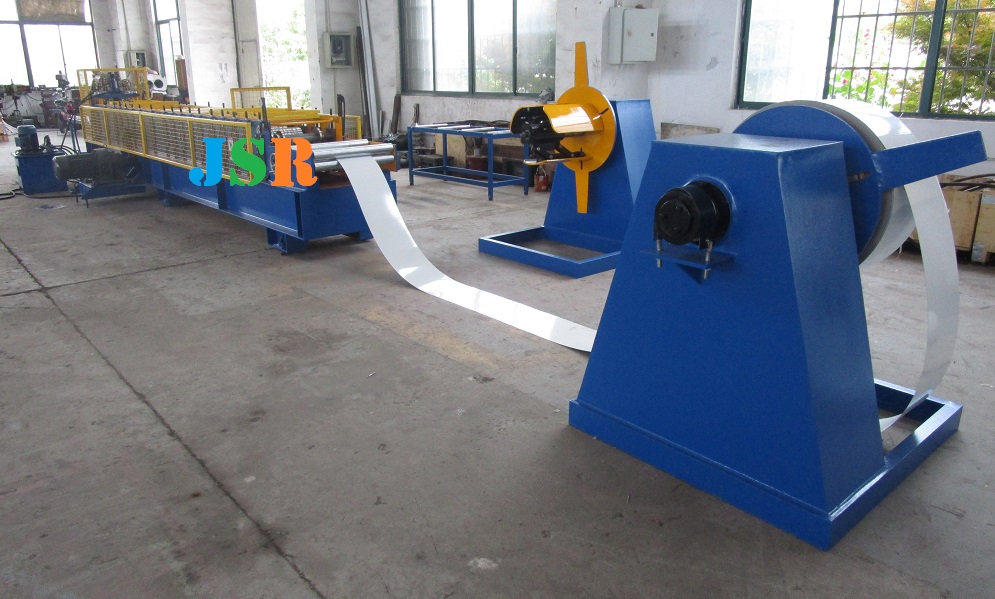

Facsia roll forming machine include 3 ton manual decoiler, forming machine with post cut, hydraulic station, plc controller, run out table

mitsubishi or siemens control system

full automatically work

Specifications

Technical Details

Machine Specifications
Weight About 4000kgs
Size About 6m x 1.0m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material PPGI and PPGL Coils
Thickness 0.3-0.8mm
Coil width 610mm
Yield Strength 235Mpa
Main Technical Parameters
Diameter of forming rollers shafts 55mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 4kw
Hydraulic unit motor power: 2.2kw
Electric voltage According to customer’s requirement

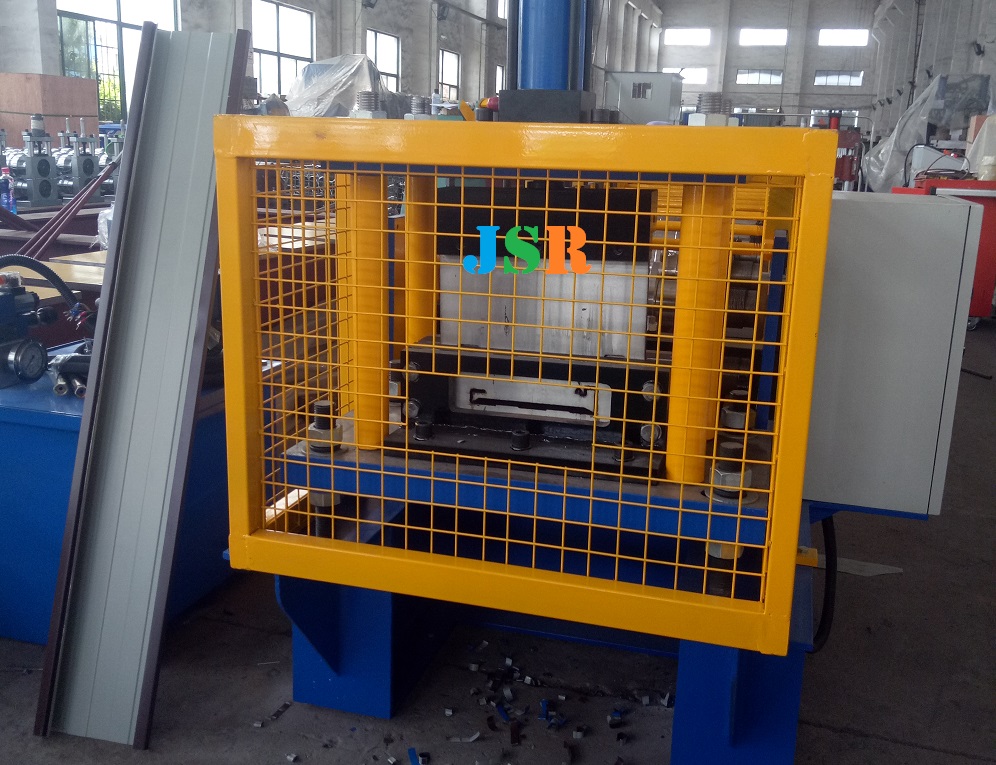

Facsia Formig Machine

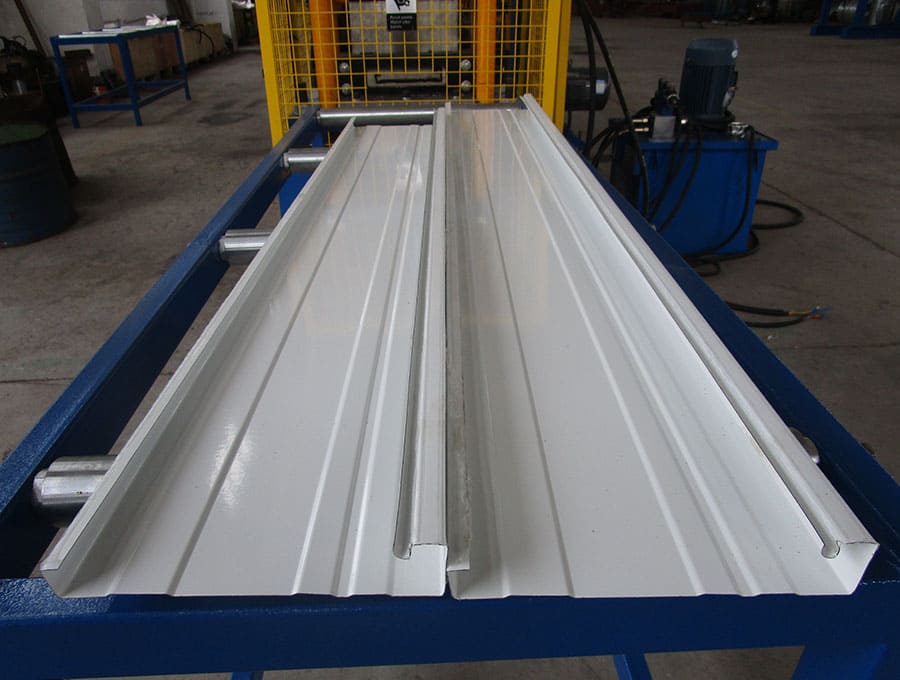

Product Sample

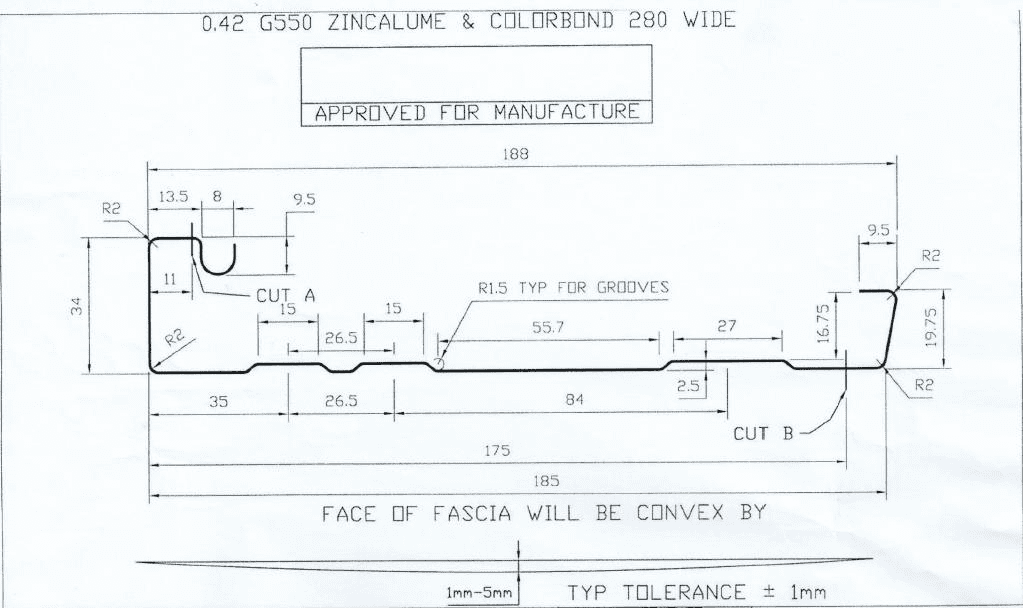

Layout drawing of machine (reference only)
Layout drawing of machine (reference only)

Facsia Formig Machine

APPLICATION

Fascia covers to protect timber against splitting flaking and peeling.
Gutter minimise the risk of serious water damage to buildings.
Downpipe is bridge let water pass from gutter to a local stormwater.
JSR machinery factory can manufacture fascia cover machine, gutter machine , downpipe machine with high quality and reasonable price to you, you will emjoy one stop purchase from us.

We already sell half round gutter machine, square gutter machine, fascia cover machine to Australia.

Machine work automatically, operate easily.
Decoiler- forming-cut – run out

Downpipe, Gutter and Fascia Forming Machin
