W Shape Stainless Water Eliminator Forming Machine

Share on facebook
Facebook
Share on twitter
Twitter
Share on linkedin
LinkedIn

Description

JW Shape Stainless Water Eliminator  or mist eliminator from forming Machine are used for air intakes for seperation of water draplets, moisture.

W Shape Stainless Water Eliminator Forming Machine consist of

3 ton manual decoiler , leveling, servo feed with punch, forming , post cut

forming machine working process as

release coil material- leveling – punch- forming -cutting

machine working speed about 6m/min

Specifications

Technical Details

Machine Specifications
Weight About 6000kgs
Size About 10m x 1.0m x 1.0m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Stainless steel
Thickness 0.5mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 28
Diameter of forming rollers shafts 60mm
Working Speed 10m/min
Forming rollers material CR12 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5.5×2 kw
Hydraulic station Motor 3kw

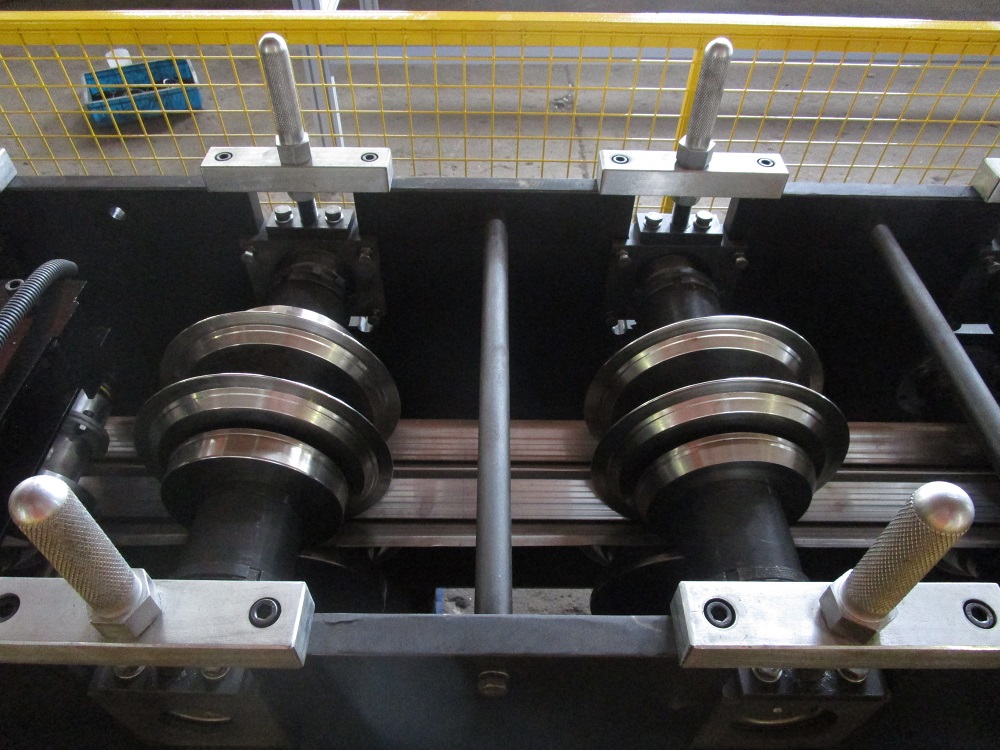

  • W Shape Stainless Water Eliminator Forming Machine
    End product view

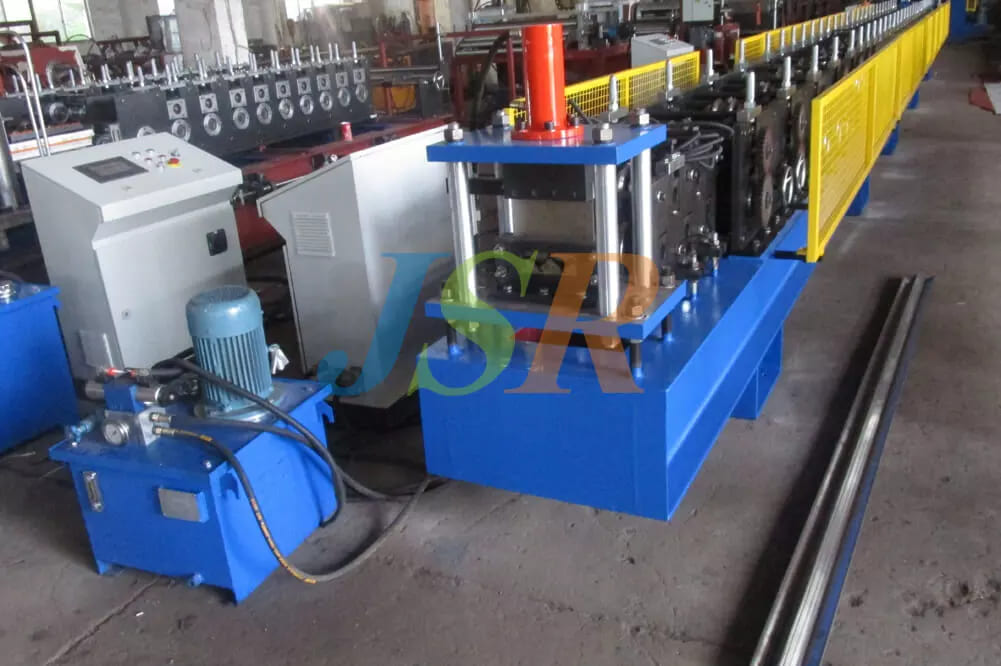

  • W Shape Stainless Water Eliminator Forming Machine
