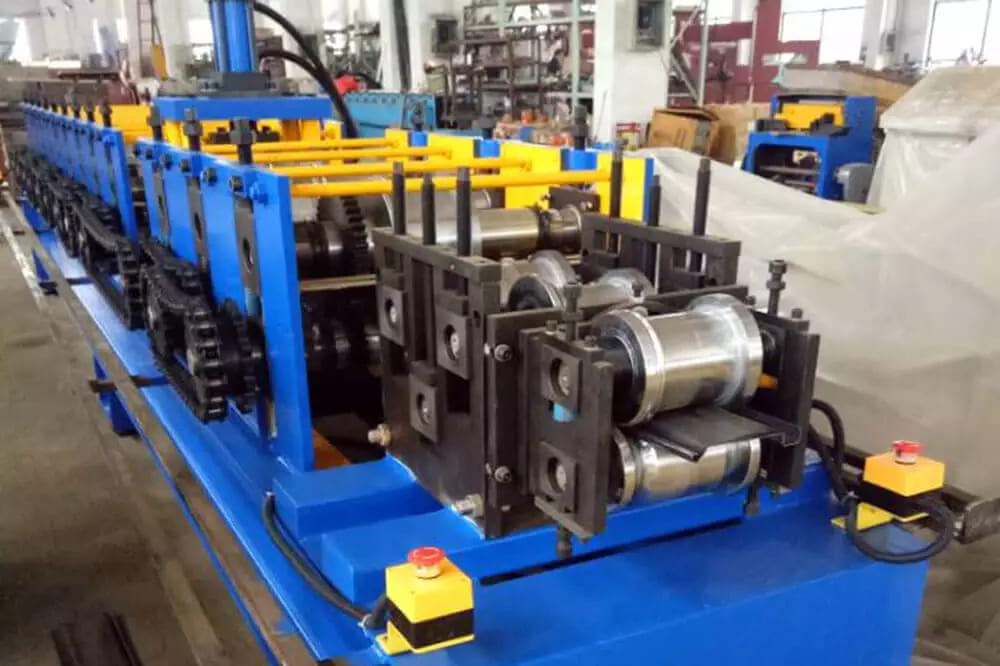

Machines rolling shutter door for post, base and Roll-up door.

A roller shutter, coiling door, roller door or sectional overhead door is a type of door or window shutter consisting of many horizontal slats (or sometimes bars or web systems) hinged together. The door is raised to open it and lowered to close it.

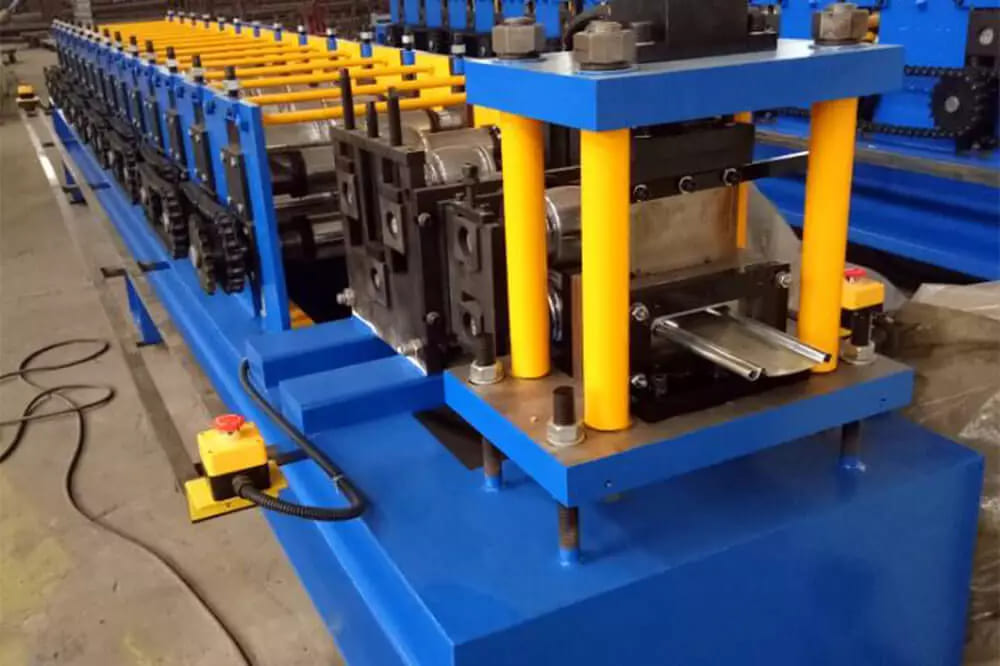

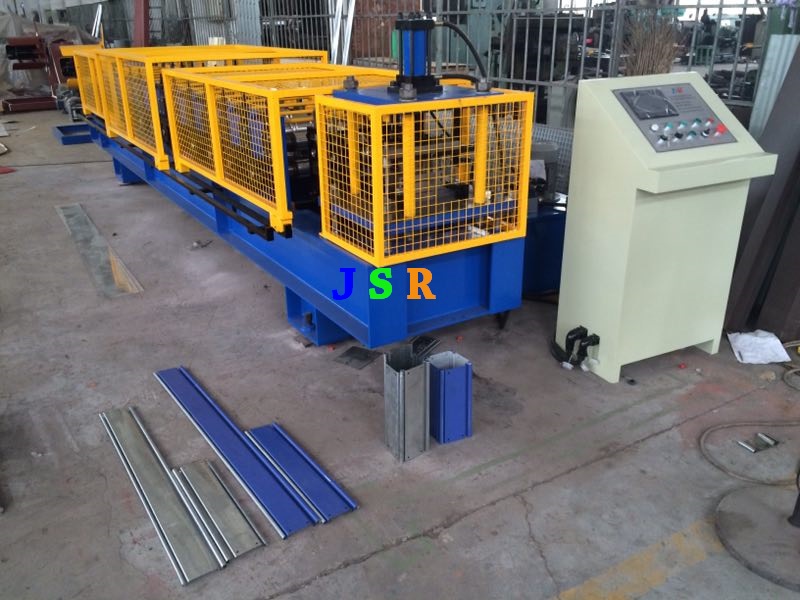

rolling shutter door machine consist of 3 ton manual decoiler, forming machine with post cut, hydraulic staion, plc controller, run out table

mitsubishi or siemens control system, Shutter Door Forming Machines automatically work.

while JSR MACHINERY factory also made slotted shutter door forming machine

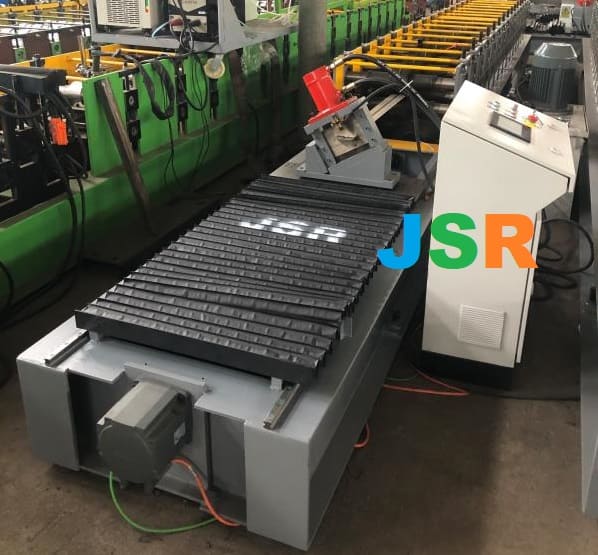

and shutter door emboss with logos

Specifications

Technical Details

Machine Specifications
Weight About 3500kgs
Size About 6m x 1.6m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.3-0.6mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 12-14
Diameter of forming rollers shafts 60mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 3kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement



Shutter Door Forming Machines

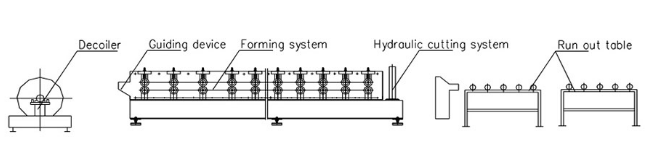

Layout drawing of machine for reference
