European Style Tile Forming Machine

Share on facebook
Facebook
Share on twitter
Twitter
Share on linkedin
LinkedIn

Description

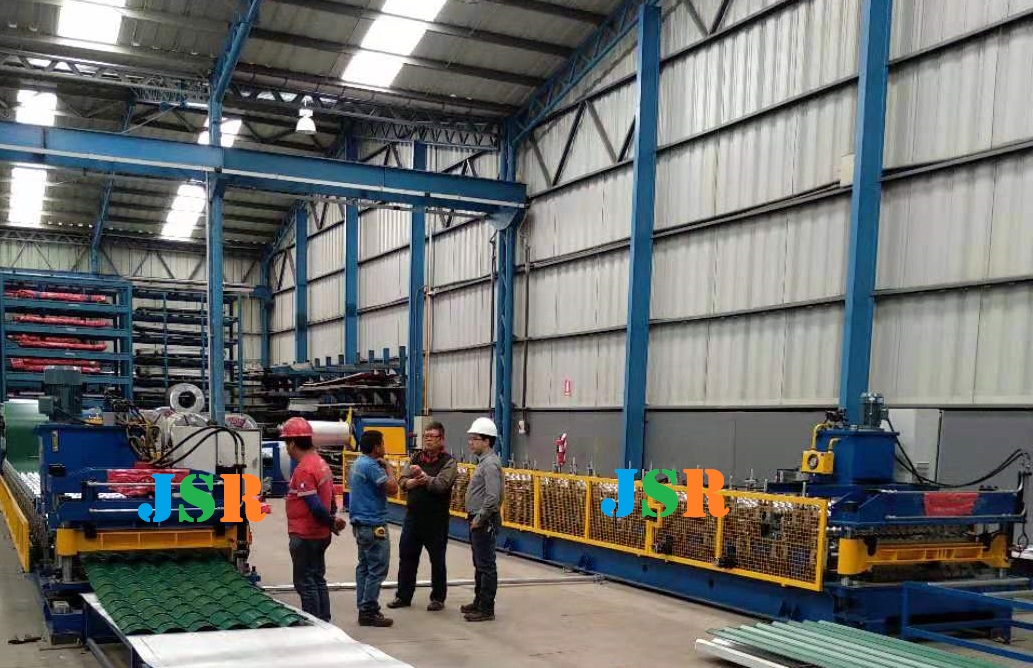

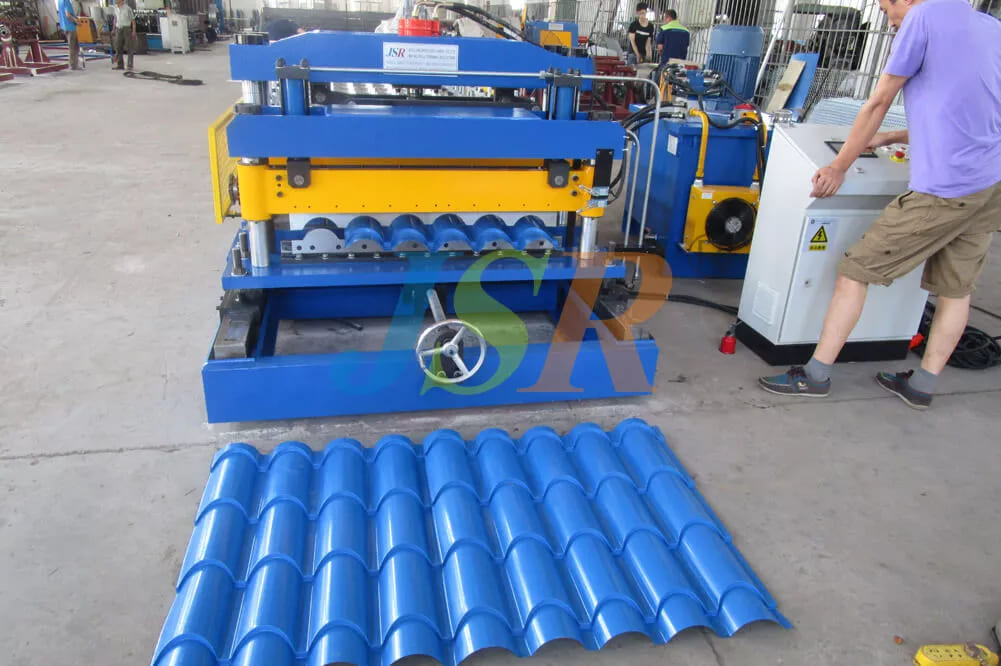

JSR provice panel roll forming line for roof tile panel, the high precision rollers can roll 0.4-0.6mm raw material with working speed upto 6m/min, high precision controlled by Mitsubishi system guarantee tiles connect very closely to avoid water leakage.

Advantage of JSR roof tile roll forming machine

【High Efficiency】working speed about 6m/min .one shift or 8 hours can Produce 2880m or about 12-15ton coils

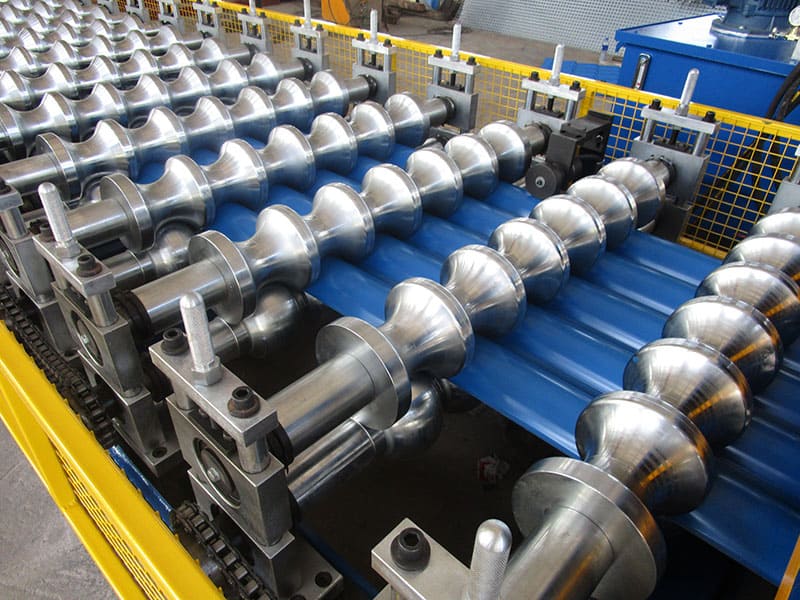

【Long Life useusual tile machine weight 10 ton according to profiles,we use 13-15 ton raw material for the machine, so machine is strong and stable. Solid shafts diameter 75mm, rollers plated with 0.05mm hard chrome to improve hardness and also anti-rust. Cutting frame with heat treatment to avoid deformation in future. Cut blade material CR12 with quench treatment.
【High Precision】high precision controlled by Mitsubishi system guarantee tiles connect very closely to avoid water leakage.
【Automatic & Easy OperationSafe and easy to operate with Mitsubishi control system.

excellent serviceTechnicians and engineers can be sent to your factory to install the machine and train your workers if you required.

Profiles of roofing tile forming machine

JSR machinery factory introduce you some popular profiles of steptile forming machines

  1. Versatile
  2. C-tile
  3. Monterrey
  4. European type tile
  5. Mondarin profile
  6. Metecoppo tile
  7. Teja
  8. Galvateja
  9. Machine is designed according to your profiles

Specifications

Technical Details

Machine Specifications
Weight About 11000kgs
Size About 11m x 1.8m x 1.5m (length x width x height)
Suitable Raw Material
Material Pre-painted Galvanized Steel Coils
Thickness 0.4-0.6mm
Coil width 1220mm
Yield Strength 235Mpa
Main Technical Parameters
Diameter of forming rollers shafts 75mm
Roll Forming Speed 10-15m/min
Production Speed 4m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter

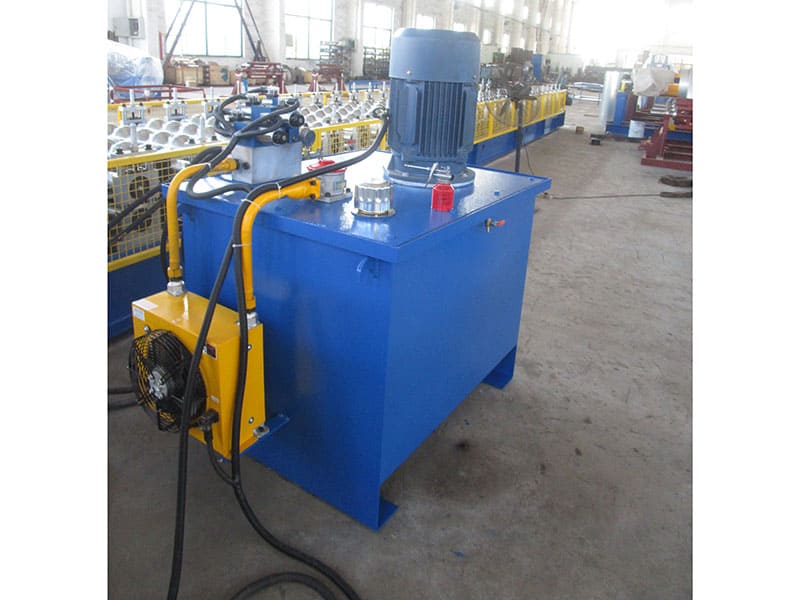

Electric Power requirement Main motor power: 5.5kw
Hydraulic unit motor power: 11kw
Electric voltage According to customer’s requirement

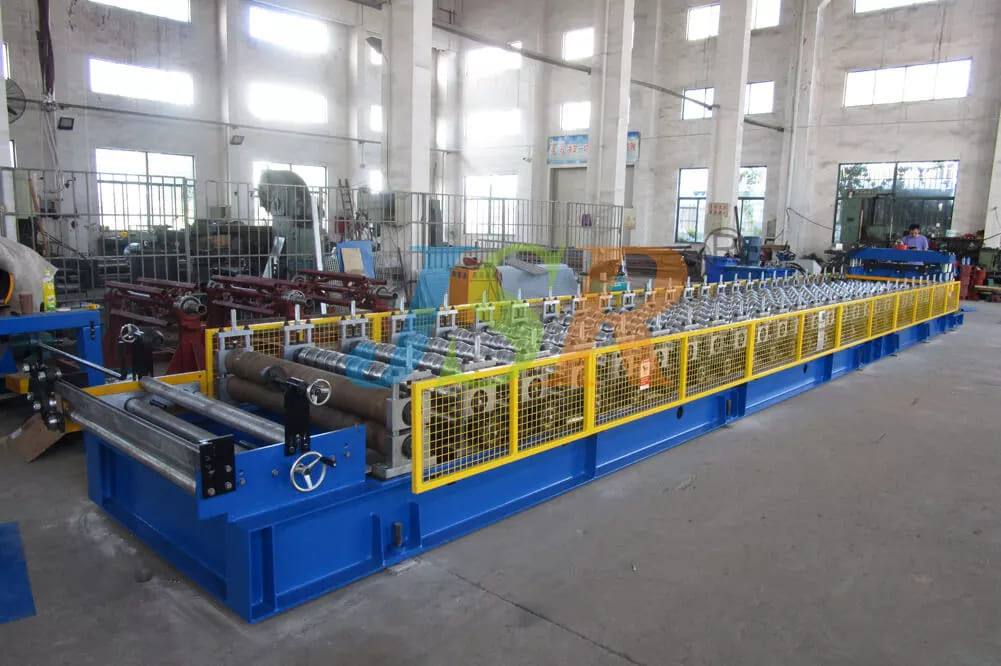

Layout drawing of machine (reference only)

European Style Tile Forming Machine

APPLICATION

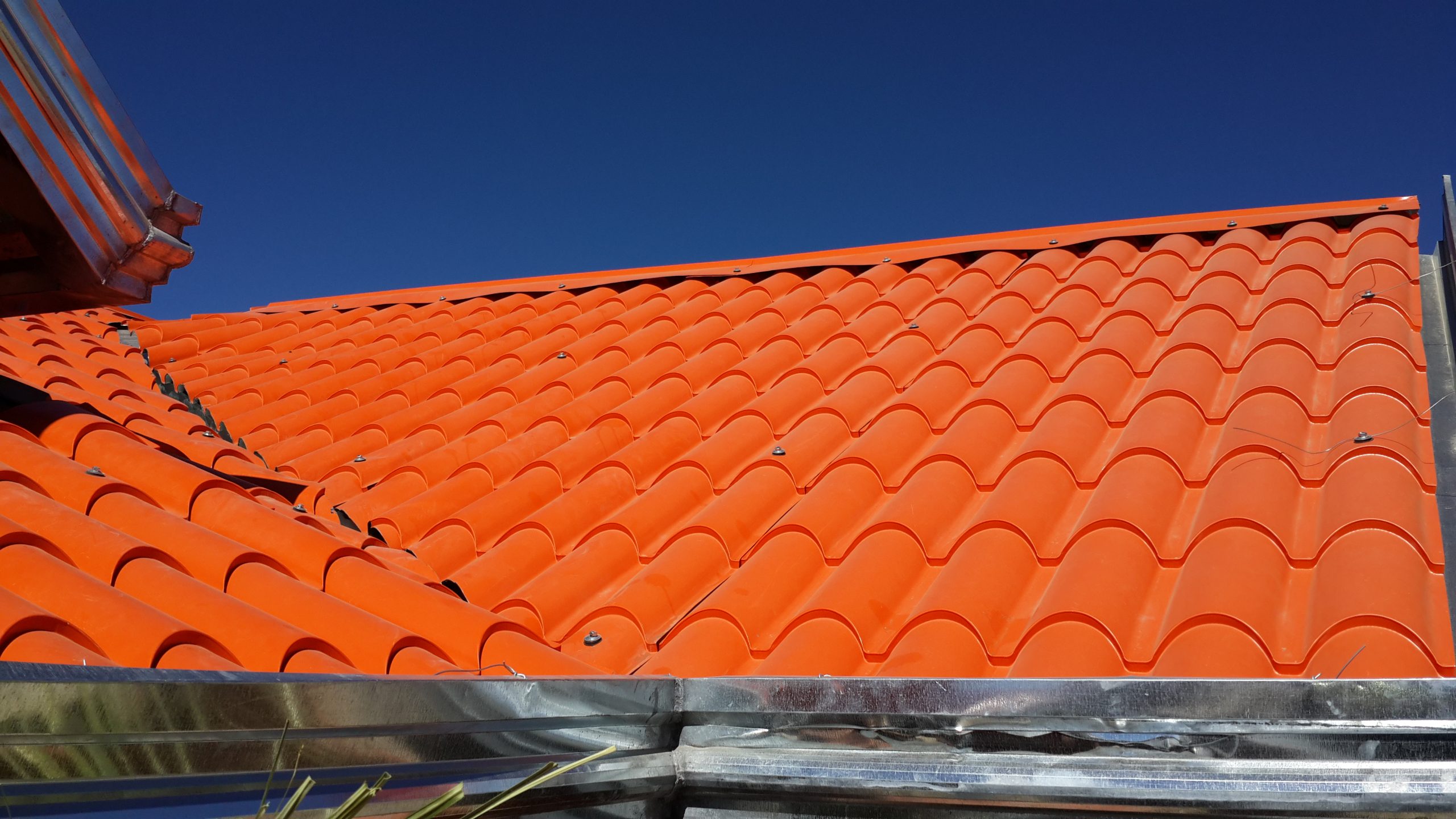

JSR tile forming machine can produce steel sheet tile, which is light weight, durable and beautiful.
Now, we improve machine working speed to 4m/min (include press and cut).

Operate easily , work automatically with PLC controller control.
Decoiler- forming- press -cut – run out
