Description

This metal long span sheet machine or metral machine is popular in Nigeria, the same roofing sheets machine as BAMACO ALUMINIUM CO.,LTD automatically work, easy operation and long life use with mitsubishi control system. the roll former weright about 10 ton with 22 roller stations.

long span roofing sheet is very popular and is common in buildings built within the year 2000 to 2010 in Nigeria, the reason is that it was the first embossed design that came out immediately the long span aluminum roofing sheets became popular and affordable to most people. Its initial appearance was colorless, having only the zinc reflective surface but rather it started appearing in different colors including black, green, red and brown, etc.

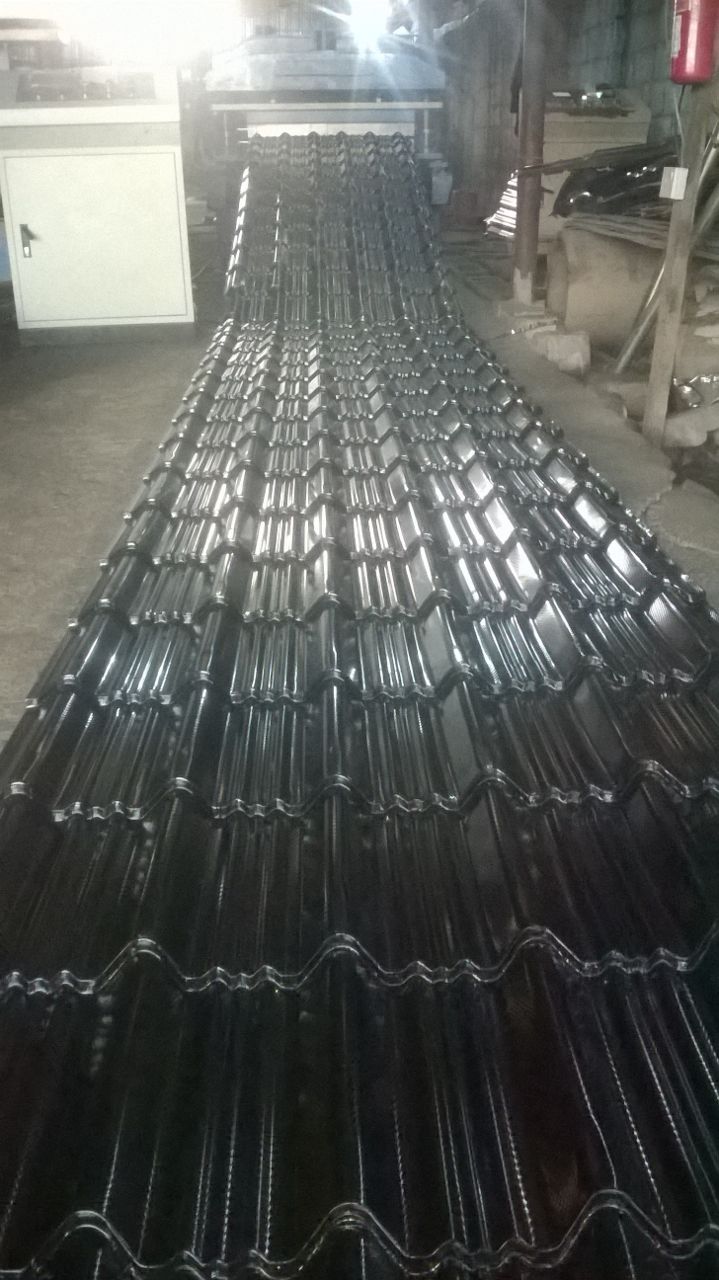

Steptile forming machines are also popular in Nigeria

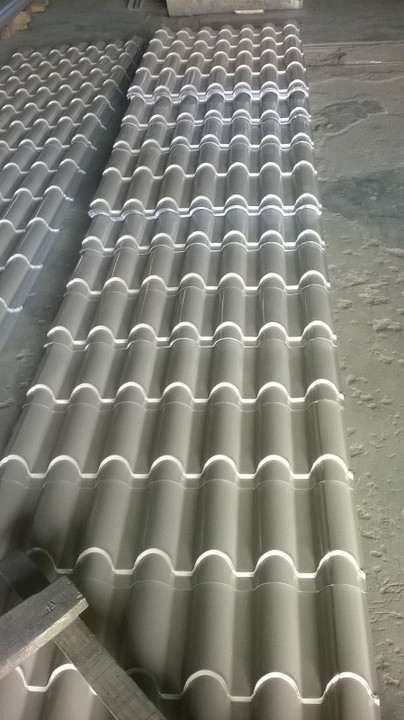

metcopo tile forming machine

Specifications

Technical Details

Machine Specifications
Weight About 9000kgs
Size About 11m x 1.7m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material PPGI and PPGL Coils
Thickness 0.3-0.7mm
Coil width 1220mm
Yield Strength 235Mpa
Main Technical Parameters

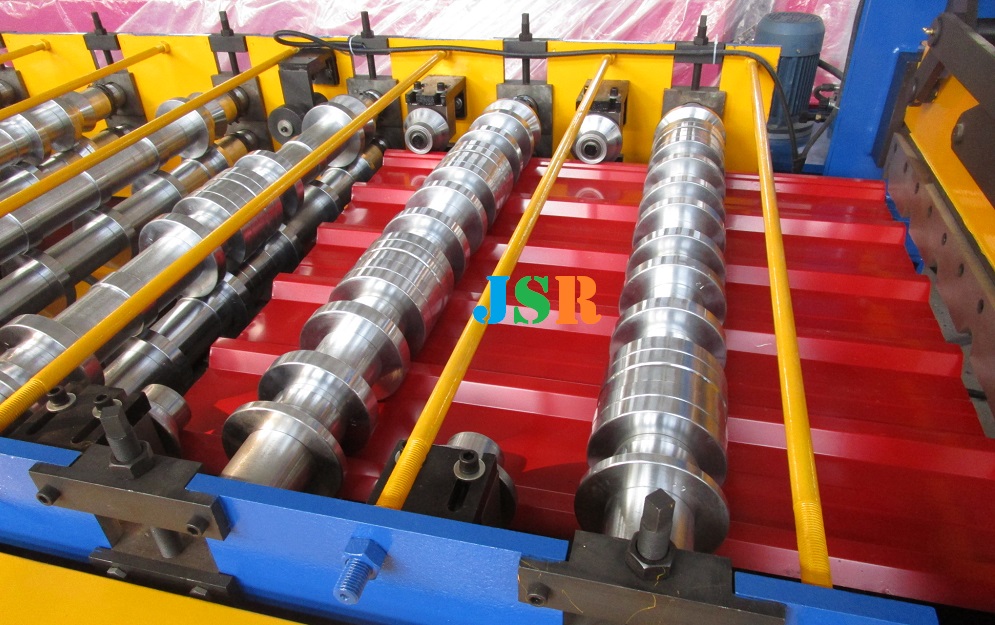

Quantity of forming rollers stations 22
Diameter of forming rollers shafts 80mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment

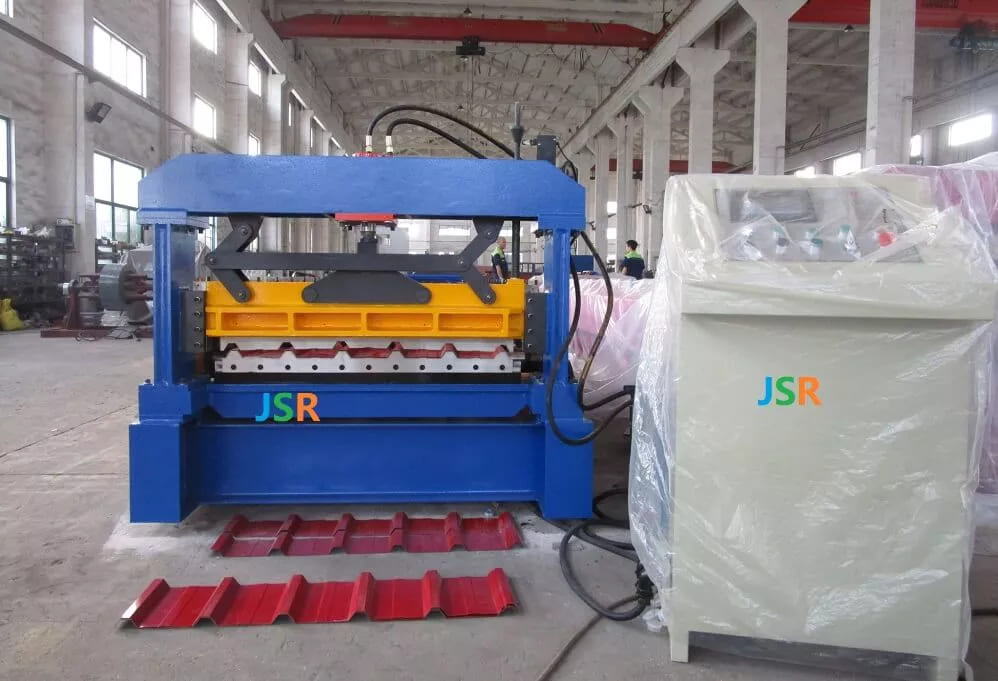

Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 7.5kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement



  •  Layout drawing of machine (reference only)

APPLICATION

JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced

Operate easily , work automatically with PLC controller control.

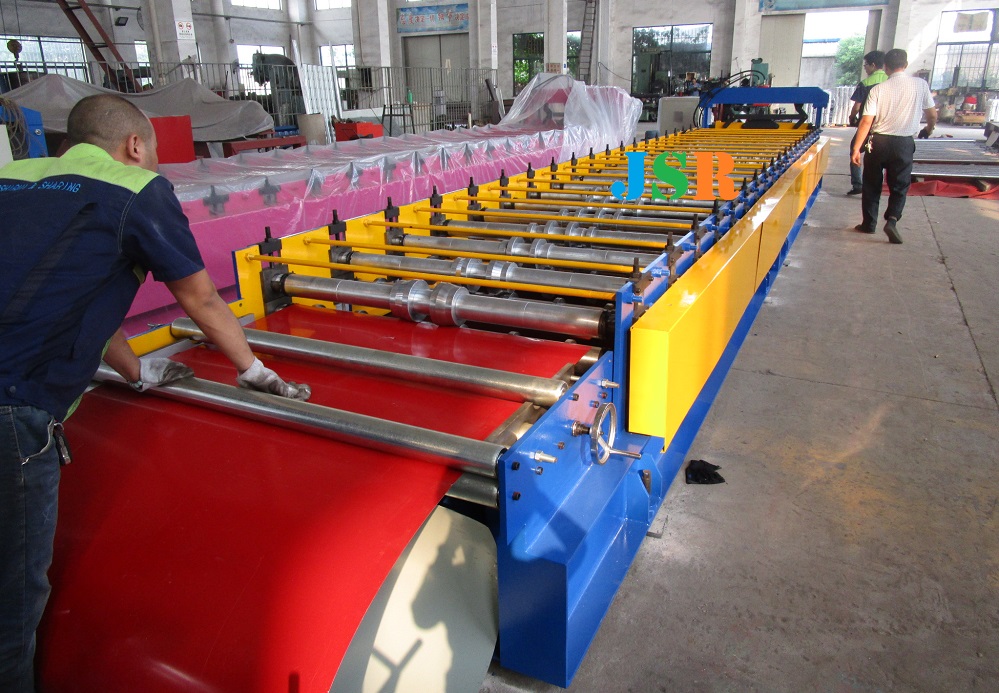

Decoiler- forming-cut – run out

APPLICATION
