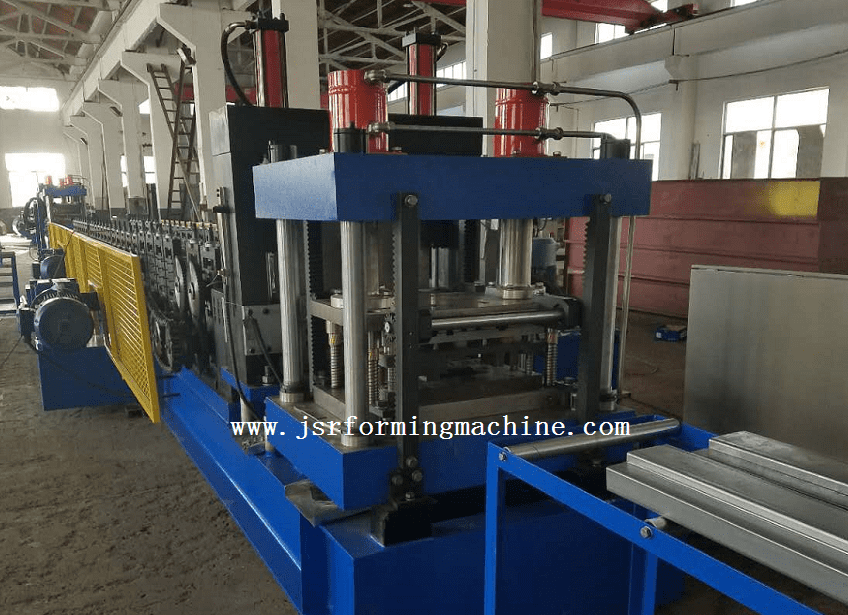

Steel Door and Window Frames roll forming machine

Description

Steel Door and Window Frames roll forming machine is non – stop cut, fly cut.

Technical Details

Machine Specifications
Weight	About 5000kgs
Size	About 10m x 1.0m x 1.0m (length x width x height)
Color	Main color: blue
Color	Warning color: yellow
Suitable Raw Material
Material	galvanized steel
Thickness	1.5mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	ABOUT 10
Diameter of forming rollers shafts	60mm
Working Speed	about 20m/min
Forming rollers material	GCR15 mould steel, with quenched treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power:11 kw
Hydraulic station	Motor 5.5kw
