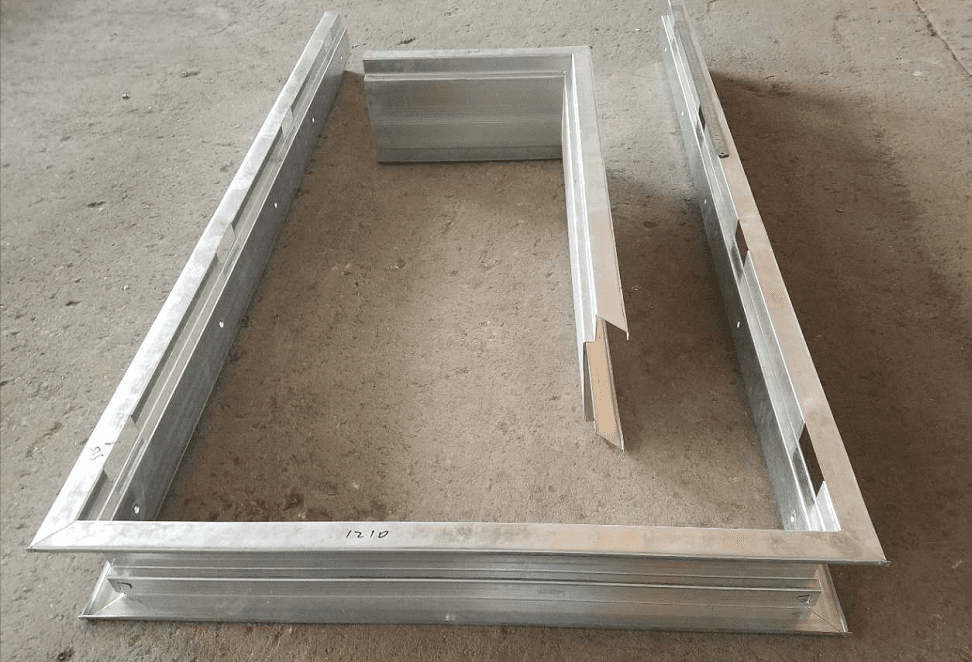

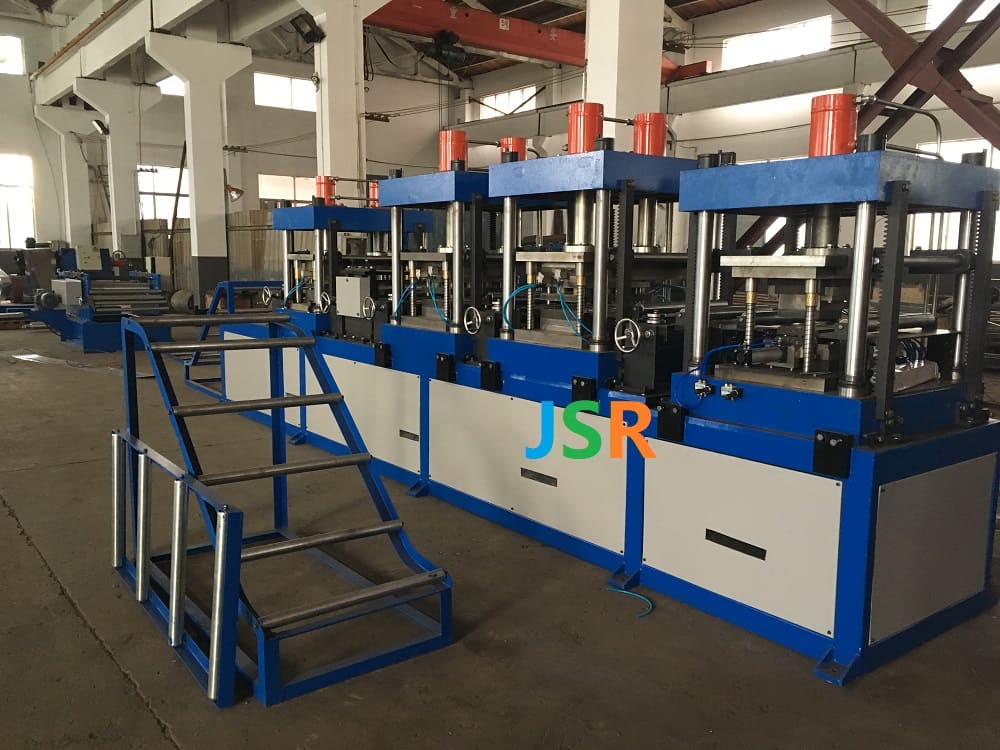

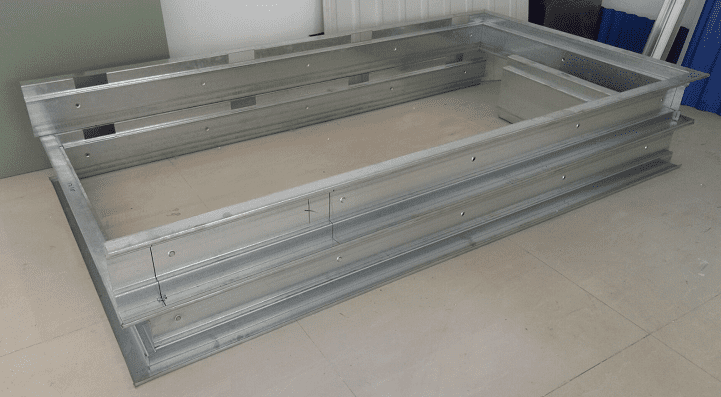

door frame roll forming machine from Wuxi JSR machinery factory,
design and manufacture roll forming machines according to customers requirements.
for this door frame forming machine working speed about 4-6m/min,

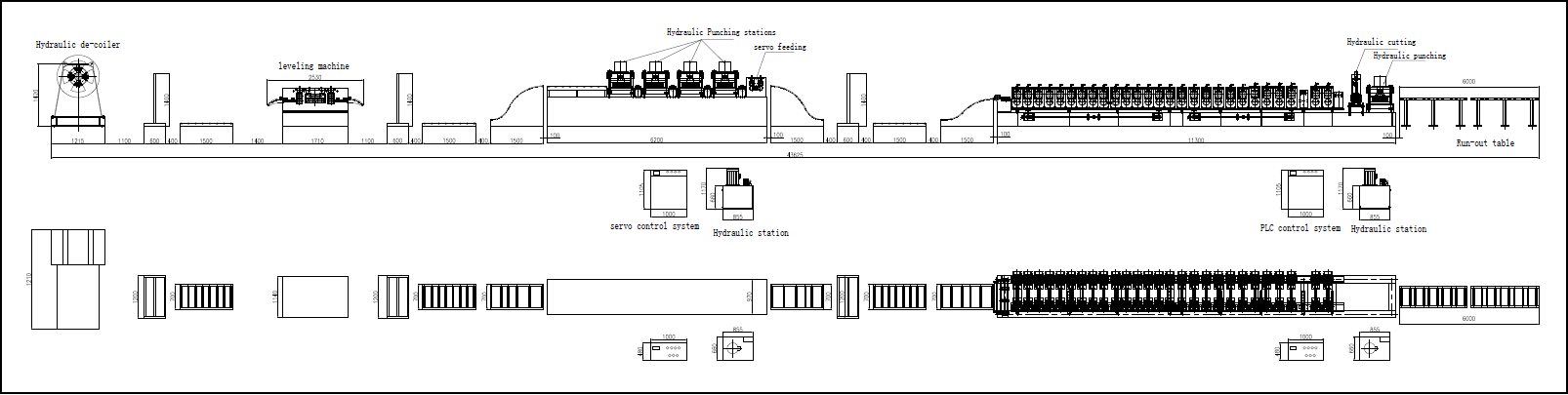

process: decoiler material- leveling- hydraulic punch-forming -cutting
Technical Details
| The Line’s Specifications | |
|---|---|
| Weight | About 18000kgs |
| Whole line’s dimension | About 30m x 3m x 1.5m (length x width x height) |
| Color | Main color: green |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized or Galvalume Coils |
| Thickness | 0.8-1.2mm |
| Coil width | According to products size |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | About 22 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 10-15m/min |
| Production Speed | 4m/min |
| Forming rollers material | Gcr15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | siemens PLC and Yaskawa Converter |
| Electric Power requirement | Main motor power: 15kw |
| Hydraulic unit motor power: 11kw | |
| Electric voltage | According to customer’s requirement |
| Main Components | |
| Decoiler (manual and automatic for options) | 1 set |
| Guiding device | 1 set |
| Leveling system | 1 set |
| Punching machine | 1 set |
| Roll Forming system | 1 set |
| Hydraulic Cutting system | 1 set |
| PLC control box | 1 set |
| Hydraulic unit | 1 set |
| Run outs tables | 1 set |
