Sipca Metalica gard metal fence Roll Forming Machine

Facebook
Twitter
LinkedIn

Description

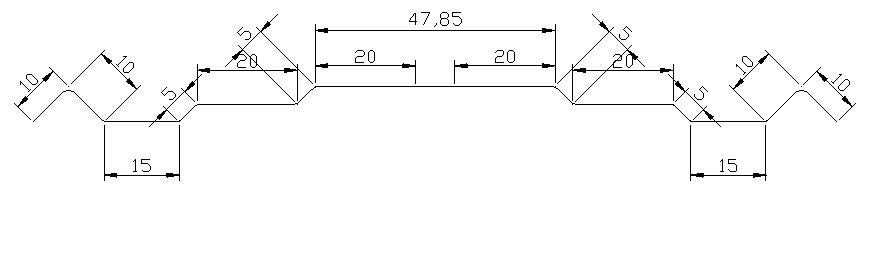

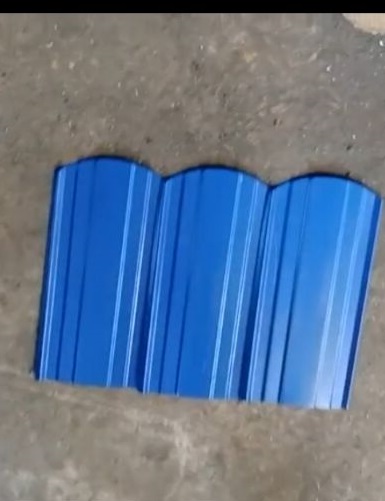

Sipca Metalica gard – alternative to traditional fence slats.

Like wood, the metal slat fence looks nice, but its technical features give it a much longer lifespan.

Very low maintenance (does not require repainting, varnishing), except for quick hose washing.

Folded edges for increased durability to mechanical deformation.

The assembly can be performed even by the final client, without the help of a professional and without specific advanced knowledge.

It can be mounted both on flat areas and on sloping ground at any time of the year.

The zinc layer protects the steel against corrosion and keeps the paint layer unaffected for a long time.

Resistant to weather, direct sunlight and mechanical damage.

One of the most advantageous PRICE-QUALITY ratios.

Easy to transport, easy to assemble, easy to store.

This fence will serve you reliably for many years, without the need for special care, does not rust and retains its appearance throughout its life.

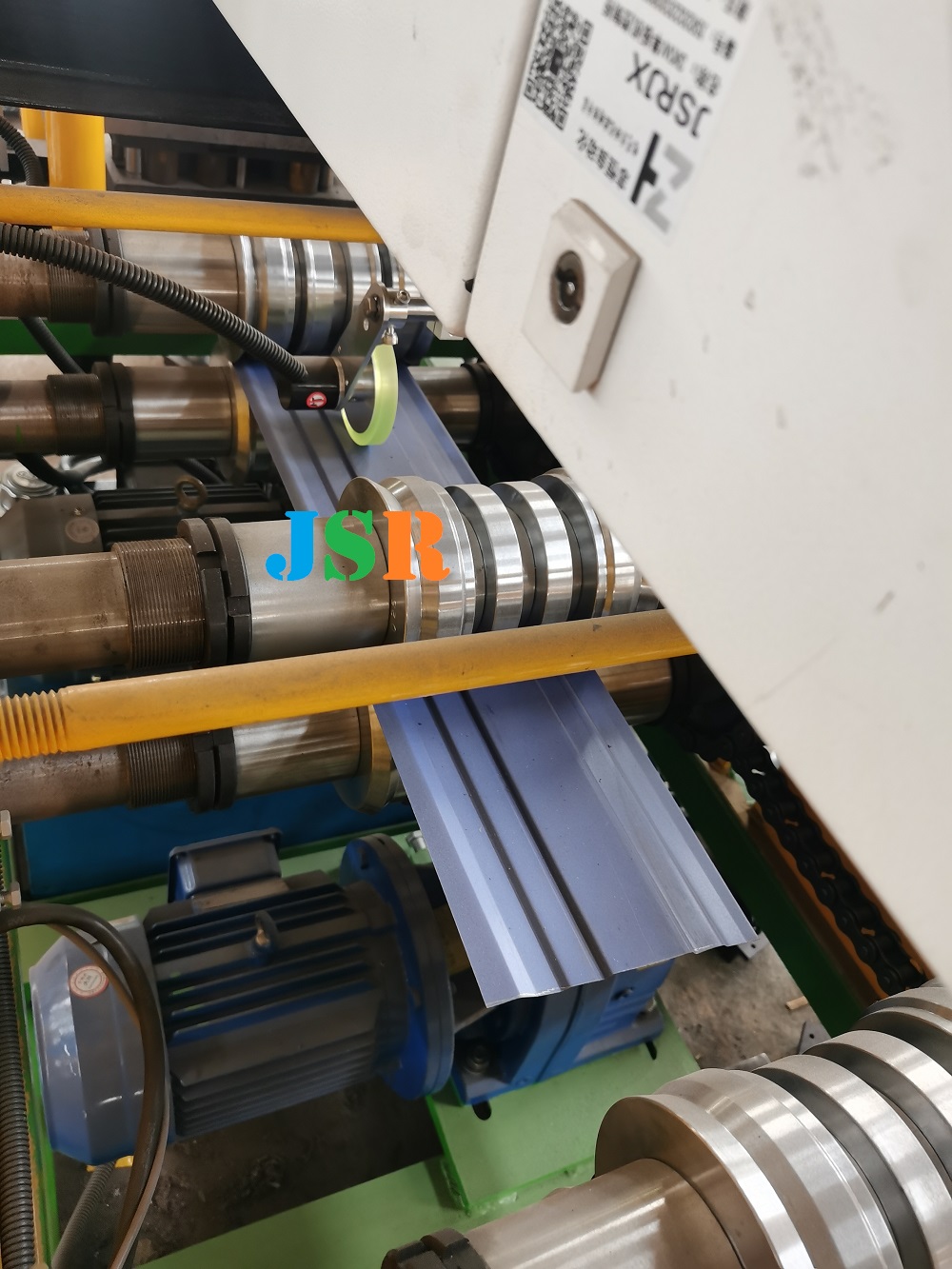

our roll forming machine makes Sipca Metalica gard or  metal fence slats automatically.

roll forming machine include manual decoiler, machine, hydraulic station, plc controller , run out table

roll former with special cut design to cut Sipca Metalica gard  with one top round edge.

we also make another fencing panel machine,

Specifications

Technical Details

Machine Specifications
WeightAbout 1500kgs
SizeAbout 3m x 1m x 1.5m (length x width x height)
ColorMain color: blue
Warning color: yellow
Suitable Raw Material
MaterialColored Steel Coils
Thickness0.3-0.7mm
Main Technical Parameters
Quantity of forming rollers stationsabout 5
Diameter of forming rollers shafts75mm
Roll Forming Speed15-20m/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 3kw
Hydraulic unit motor power: 3kw
Electric voltageAccording to customer’s requirement
