Description

we make above fencing sheet roll forming machine and fencing rail roll form machine to Australia,

usually we need three machines to make fencing, one machine make fencing sheet, one machine make fencing post, one machine make fence rail.

each machine include manual decoiler, machine, run out table, hydraulic station, plc controller

three machine install space about 20m length 6m width

roll forming machine automatically produce fence sheets, rails, posts

we are now making new fencing machines for canada markets,

one make fencing panel in middle

YouTube player

one make fencing rails at top and bottom

YouTube player

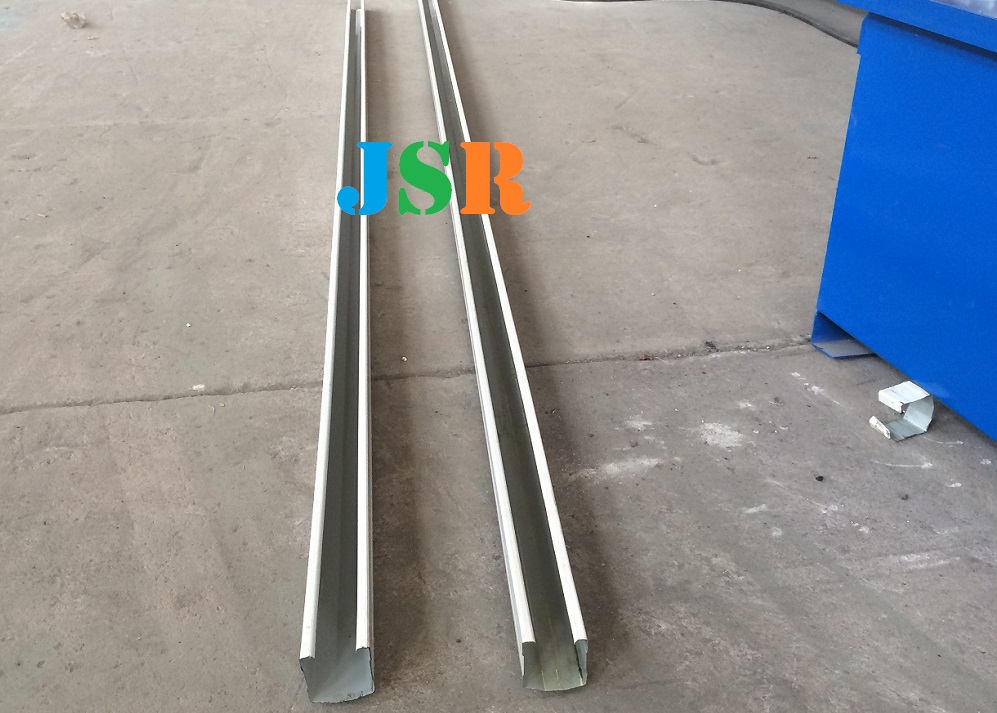

one make fending post at side

YouTube player

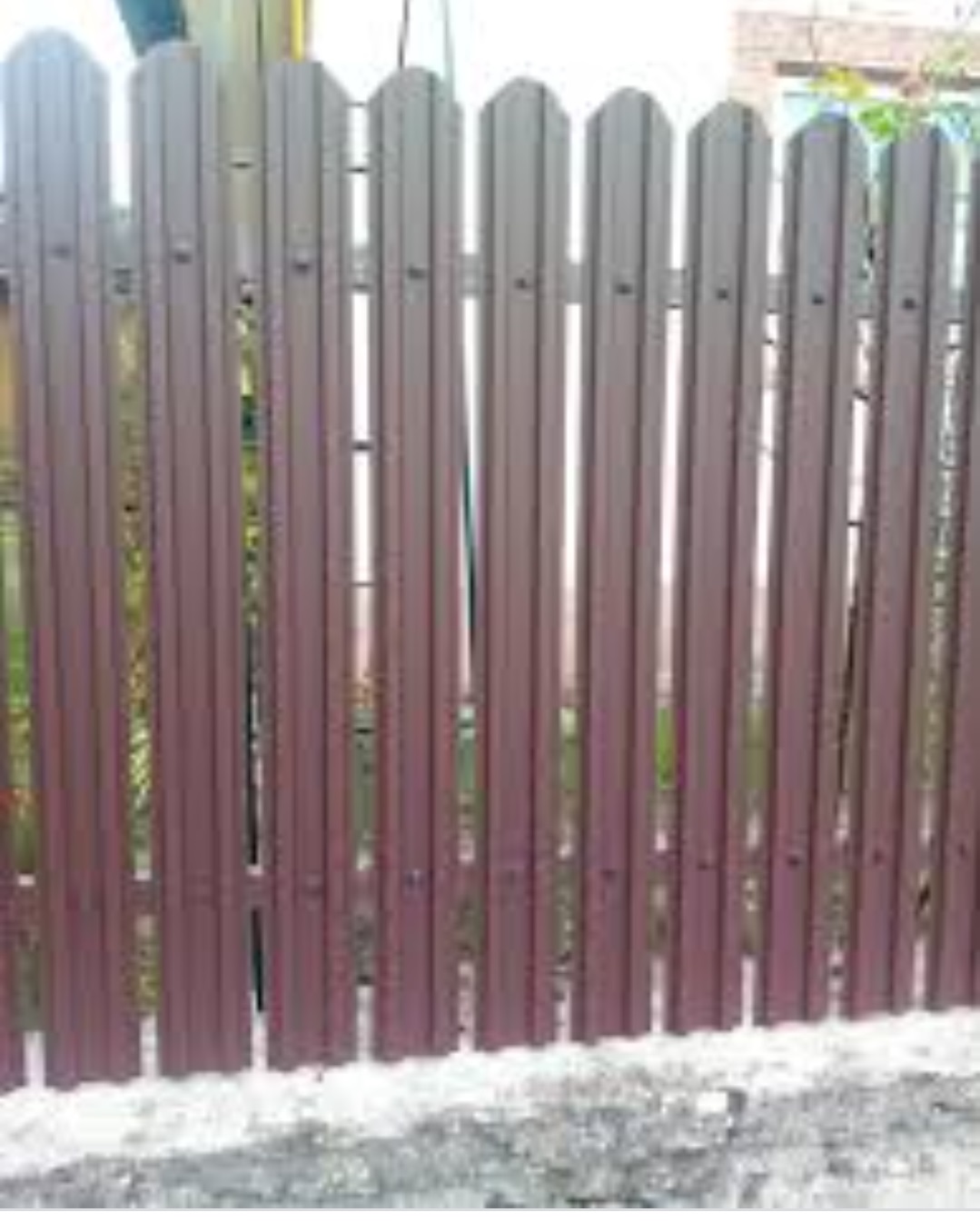

we also make Sipca Metalica gard metal fence Roll Forming Machine

YouTube player

gutter machines, facsia machines, c purlin machines already made to Australia.

Specifications

Technical Details

Machine Specifications
WeightAbout 7500kgs
SizeAbout 10m x 1.7m x 1.5m (length x width x height)
ColorMain color: blue
Warning color: yellow
Suitable Raw Material
MaterialColored Steel Coils
Thickness0.3-0.7mm
Main Technical Parameters
Quantity of forming rollers stationsabout 14
Diameter of forming rollers shafts70mm
Roll Forming Speed15-20m/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 7.5kw
Hydraulic unit motor power: 3kw
Electric voltageAccording to customer’s requirement



CUSTOMER COMMENT



Gallery

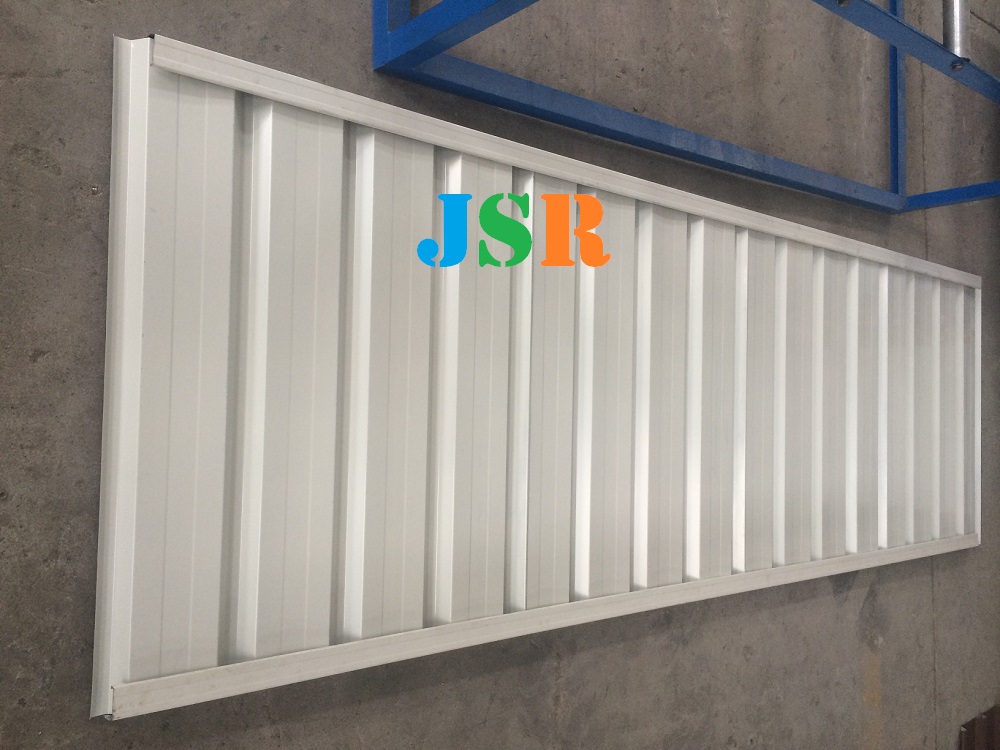

steel fence sheets are strong to resist the force of nature

include fence panel, posts and rails
