we make above fencing sheet roll forming machine and fencing rail roll form machine to Australia,
this fencing sheet is TRIMDEK design, cover width 762mm.this sheet also can be used as roofing and wall cladding.
TRIMDEK cladding is made of high strength steel, with advantage of light weight, exceelent spanning and rain water carry capacity.

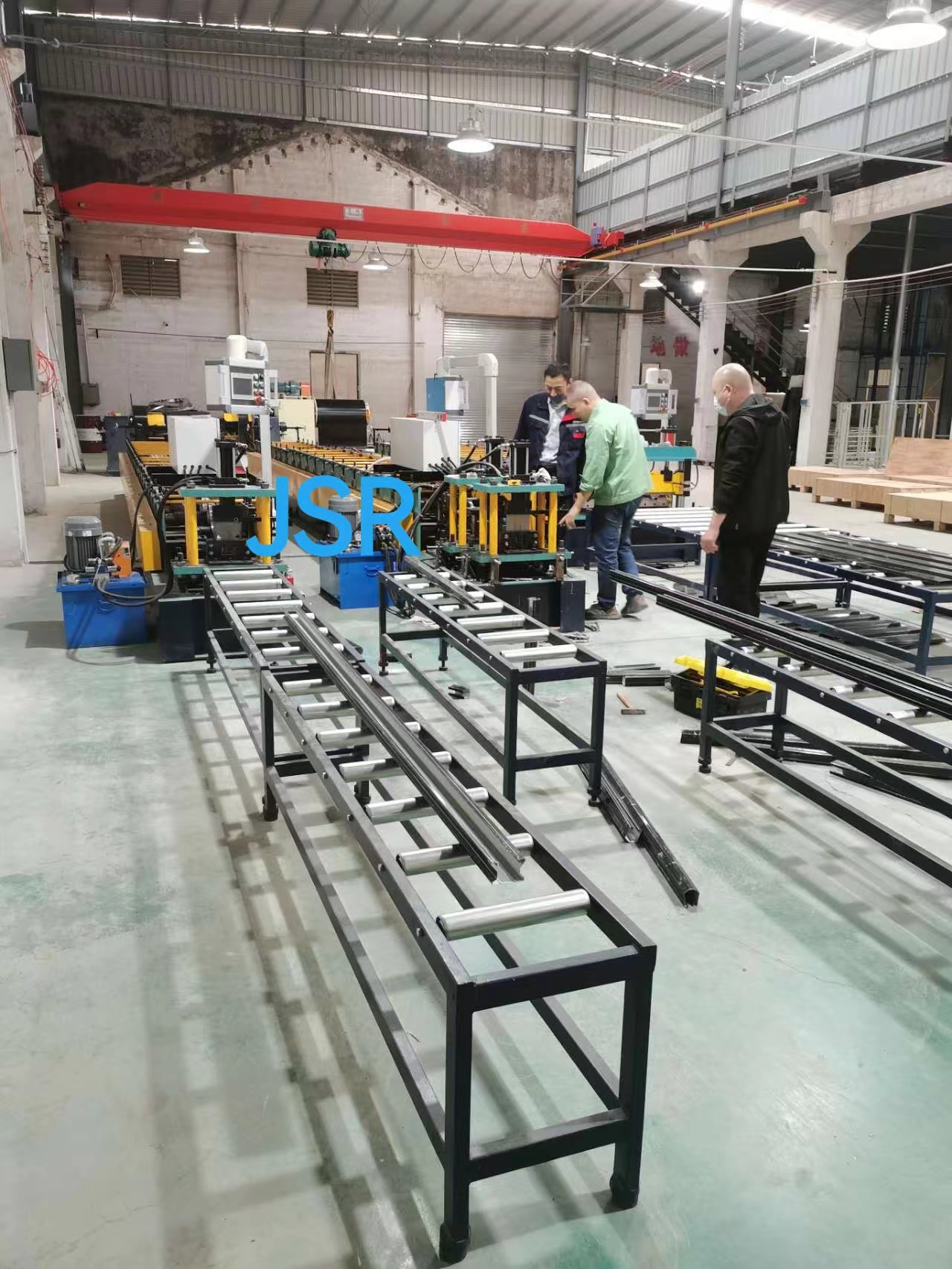

usually we need three machines to make fencing, one machine make fencing sheet, one machine make fencing post, one machine make fence rail.
each machine include manual decoiler, machine, run out table, hydraulic station, plc controller
three machine install space about 20m length 6m width
roll forming machine automatically produce fence sheets, rails, posts
we are now making new fencing machines for canada markets, show you soon..
gutter machines, facsia machines, c purlin machines already made to Australia.
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 7500kgs |
| Size | About 10m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Colored Steel Coils |
| Thickness | 0.3-0.7mm |
| Coil width | 960mm |
| Yield Strength | 550Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 20-22 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
steel fence sheets are strong to resist the force of nature
include fence panel, posts and rails
