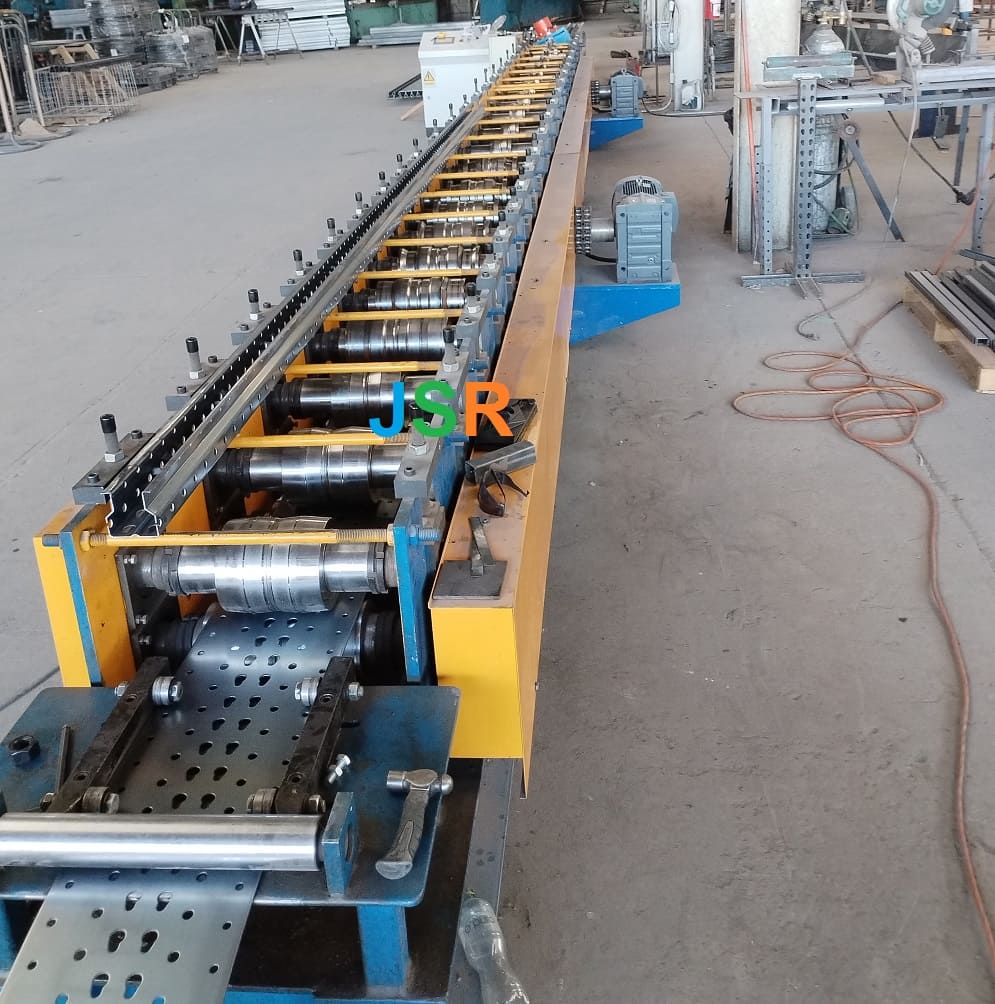

Mexico-rack upright roll forming machine

Share on facebook
Share on twitter
Share on linkedin


we sell rack roll former 2020, only make the rack shape,

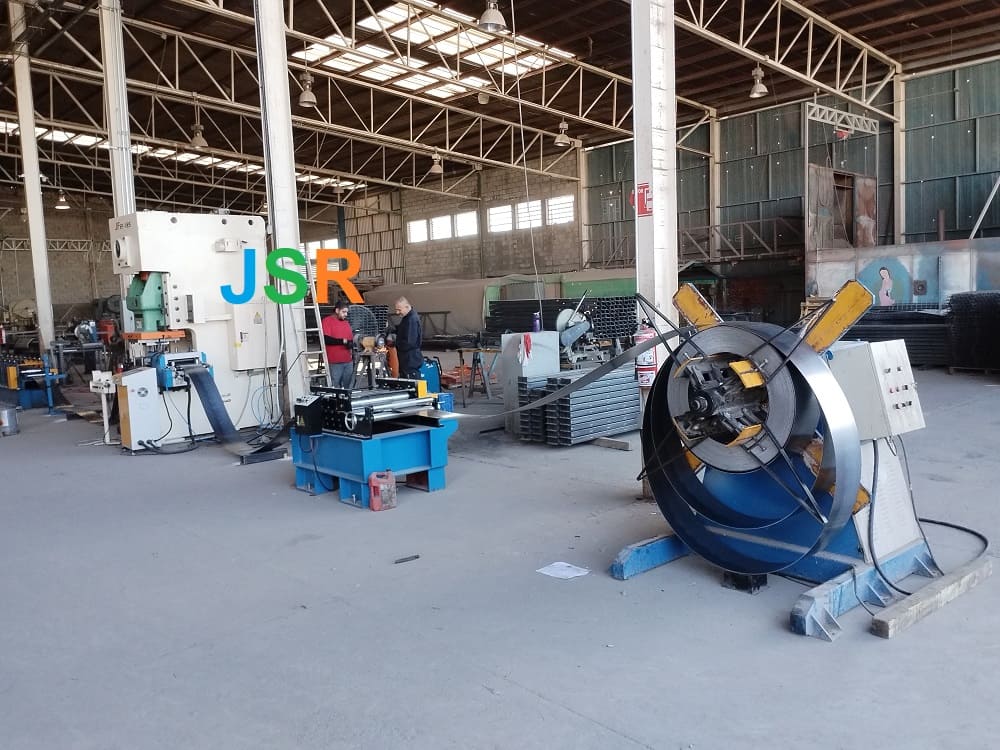

2023 , the customer buy punch machine ,post cut, plc controller and run out table,

YouTube player

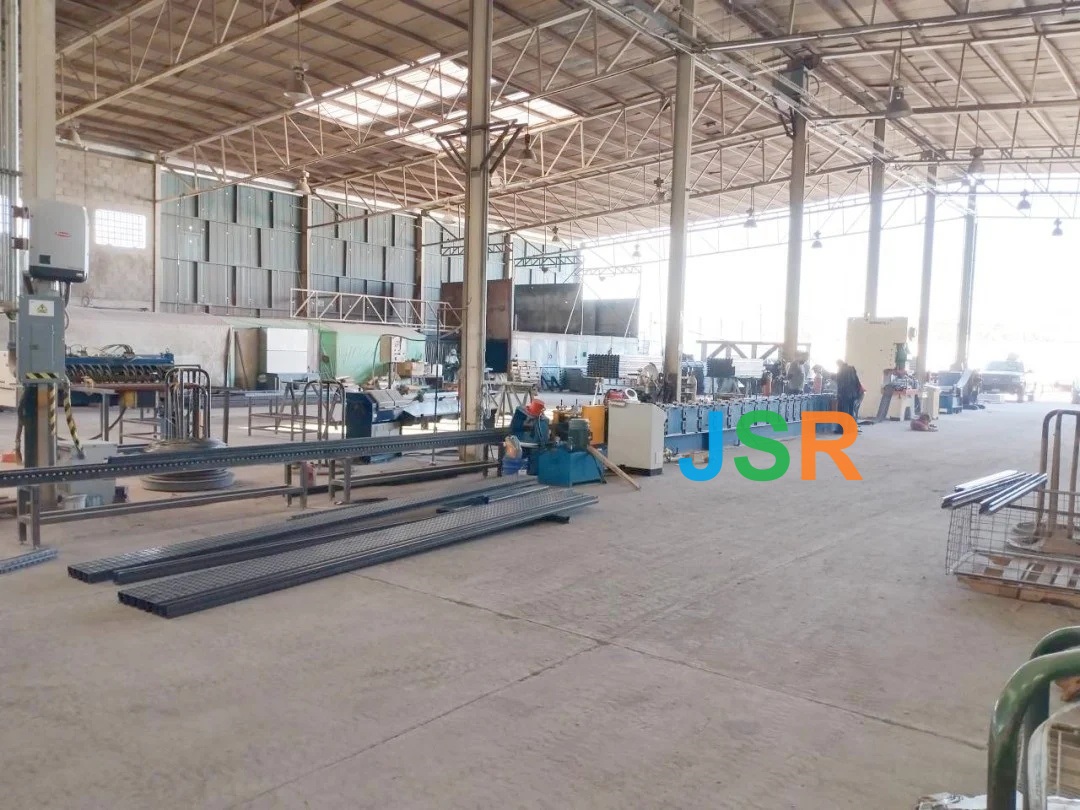

therefore , togeher, upright rack machine will work automatically

YouTube player

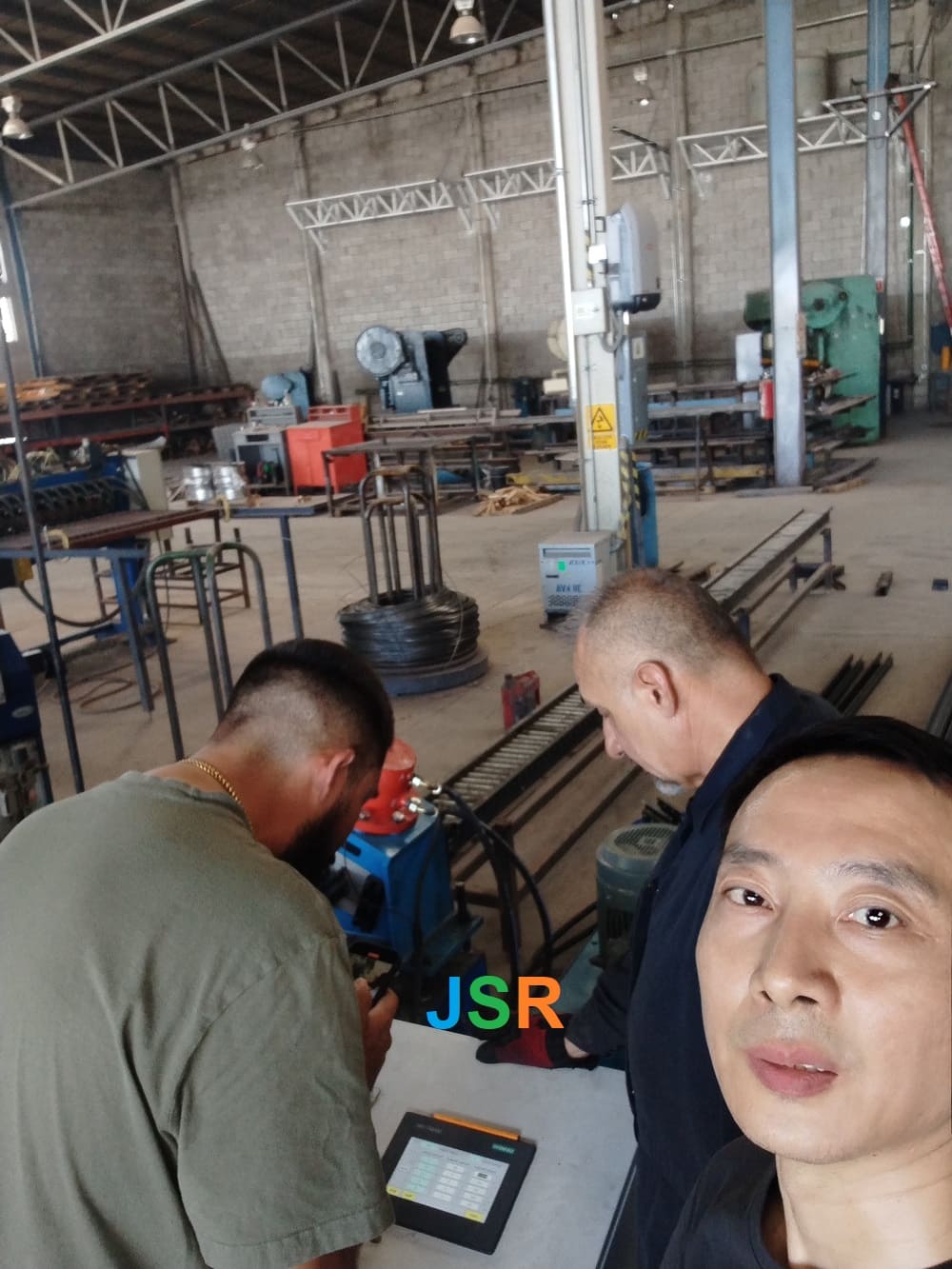

our technician spend 4 days set up the rack machine and train their workers how to operate.


Suiting raw material for this rack roll former

1 ) Coil Width: 254mm

2 ) Suitable Coil Thickness: 2 mm

3 ) Suitable Raw Materials: galvanized steel sheet

4) Yield strength of raw material: 235-345Mpa


Main parameters of storage rack roll forming machine

1) Forming Speed:                      Max. About 20m/min. (excluding the cutting time)

2) Main Motor Power:                2×7.5kw(Depend on final design)

3) Rollers’ material                   GR15 steel with quench treatment

4) Shaft diameter                      75mm, tooled by grinding machine for two times

to ensure the precision of final product.

5) Electric Condition:                440V/3Phase/60HZ(or depend on customer)

6) Total Weight:                       About 7500 Kg


Main components of this shelf roll forming machine

(1) Manual decoiler                              1 set(Capacity : 3tons)

(2) Roll-Forming M/C                          1 set

punch machine 125 ton

siemens PLC and touch screen
