Storage upright Racks Roll Forming Machine

Share on facebook
Share on twitter
Share on linkedin


Storage Racks Roll Forming Machine consist with 3 ton manual decoiler, leveling device, hydraulic punch with servo feeding, forming and post cut, plc controller, hydraulic station and run out table.

working speed of rack machine about 4m/min with hydraulic punch

YouTube player

working speed of upright machine about 8m/min with  punch machine, if you make loop at the floor, speed faster

YouTube player

Main features of RACK upright forming machine:
1. The shelves racks are flat, with high precision within 1mm
2. The 82mm solid shaft and H-shaped steel are used as the underframe, so that the machine can withstand long-term production without deformation of the machine, thus ensuring long-term production of racks
3. The rollers are processed by CNC machine tools to ensure the accuracy of the rollers, and thus the accuracy of racks.
4. Our cut frames and punch frame are stress-relieved to ensure that they are not deformed during the long-term production process, making the final racks smooth.
5. Use Mitsubishi or Siemens operating system with stable performance, simple operation, once input length and quantity,rack machine automatically produced and the cutting length tolerance is within ± 2mm


Technical Details

The Line’s Specifications
Weight About 10000kgs
Whole line’s dimension About 25m x 2m x 1.6m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized or Galvalume Coils
Thickness 2.0-2.5mm
Coil width 238mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 22-26
Diameter of forming rollers shafts 82mm
Roll Forming Speed 8-10m/min
Production Speed 4-6m/min
Forming rollers material GCR15 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 15kw
Hydraulic unit motor power: 7.5kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Leveling system 1 set
Punching system 1 set
Roll Forming system 1 set
Hydraulic Cutting system 1 set
PLC control box 1 set
Hydraulic unit 1 set
Run outs tables 1 set

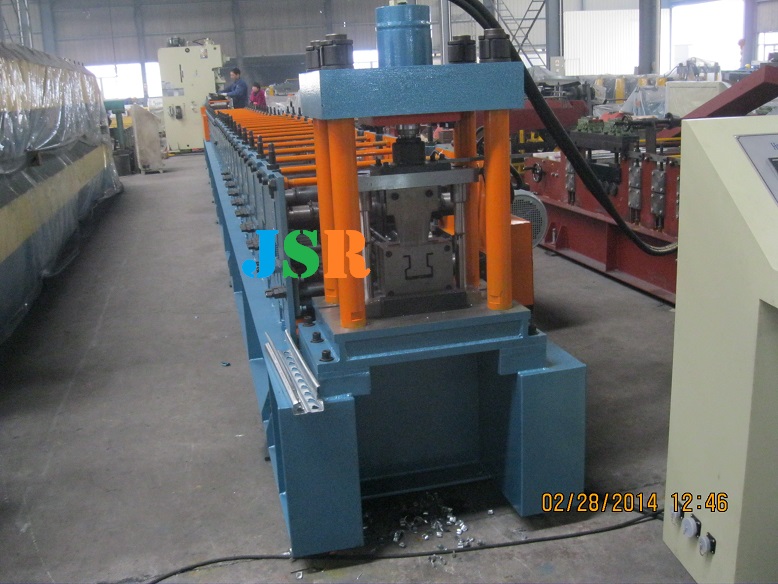

Storage Racks Roll Forming Machine
End products view


Storage Racks Roll Forming Machine
Layout drawing of machine for reference


Racks provide secure upright storage as well as quick and easy upright set-up.

JSR machinery factory manufacture Rack forming machine professionally.
Operate easily , work automatically with PLC controller control.
Decoiler-Punch- forming -cut – run out

Storage Racks Roll Forming Machine

Advantages of Pallet Racks

  • Improved inventory control
  • Inventory circulation
  • Improved accessibility
  • Increased safety and efficiency
