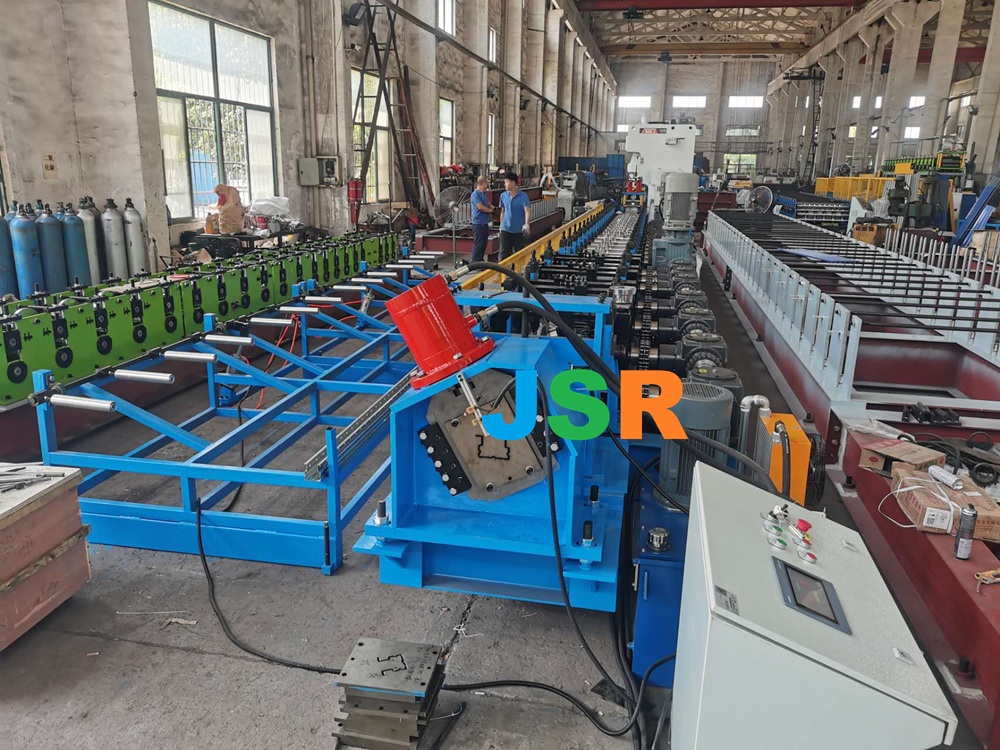

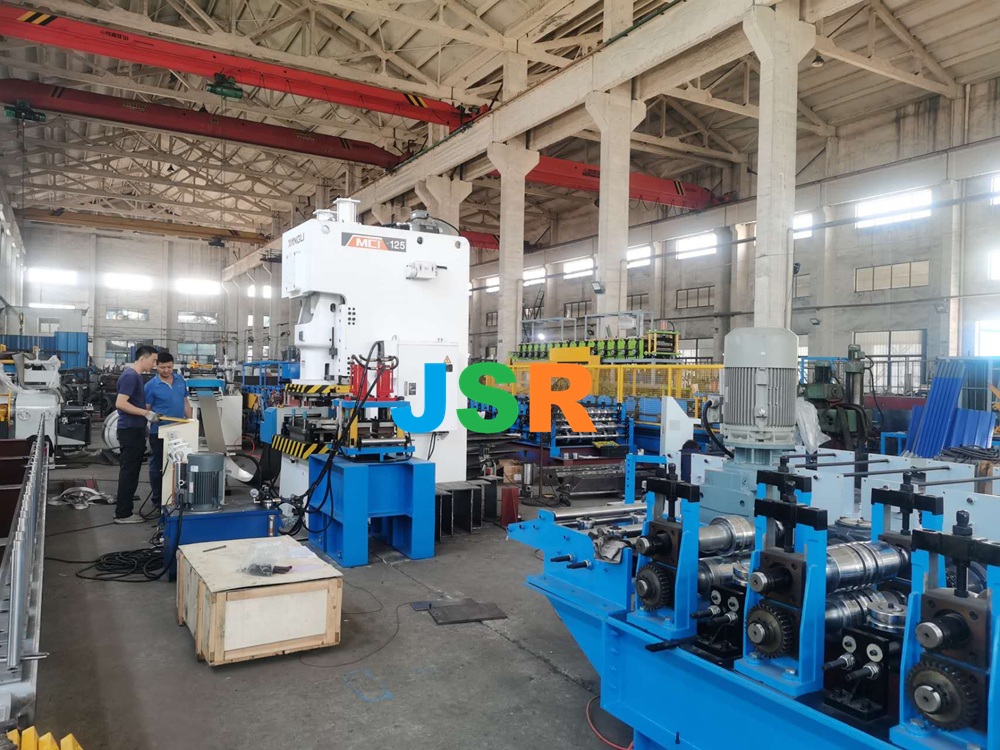

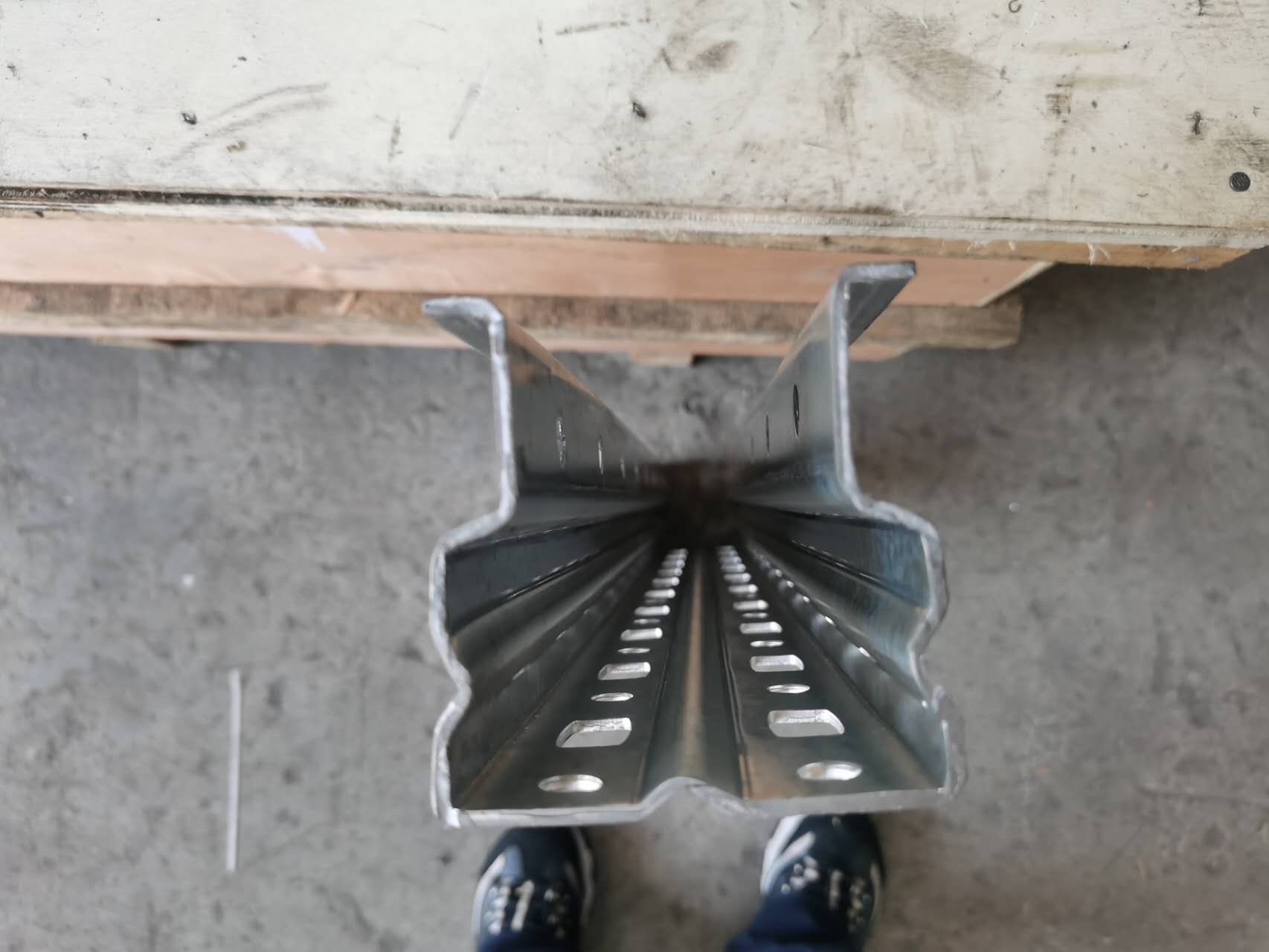

Pallet Rack Upright Frames Roll Forming Machine consist with 3 ton manual decoiler, leveling device, hydraulic punch with servo feeding, forming and post cut, plc controller, hydraulic station and run out table.
Install length about 40-50m
we test machine in our factory working speed 10m/min, if customer dig floor , speed can up to 12m/min
machine can make three width of rack, 80mm, 90mm ,110mm
by change spacer between rollers, punch mould and cut blade manually
gearbox move the line, siemens control
Technical Details
| The Line’s Specifications | |
|---|---|
| Weight | About 20 ton |
| Whole line’s dimension | About 35m x 2m x 1.6m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized or Galvalume Coils |
| Thickness | 3mm |
| Coil width | |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 26 |
| Diameter of forming rollers shafts | 85mm |
| Roll Forming Speed | 15m/min |
| Production Speed | 10m/min |
| Forming rollers material | GCR15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 18.5kwx2 |
| Hydraulic unit motor power: 7.5kw | |
| Electric voltage | According to customer’s requirement |
| Main Components | |
| Decoiler (manual and automatic for options) | 1 set |
| Guiding device | 1 set |
| Leveling system | 1 set |
| Punching system | 1 set |
| Roll Forming system | 1 set |
| Hydraulic Cutting system | 1 set |
| PLC control box | 1 set |
| Hydraulic unit | 1 set |
| Run outs tables | 1 set |
Racks provide secure upright storage as well as quick and easy upright set-up.
JSR machinery factory manufacture Rack forming machine professionally.
Operate easily , work automatically with PLC controller control.
Decoiler-Punch- forming -cut – run out
