Mexico customer buy rack roll former 2020, now he buy level device, punch machine with servo feed, control system, post cut and hydraulic station to make machine automatically work
punch machine capicity 125 ton, punch 36 times per minute, each punch 20cm, one minute punch speed about 8m/min

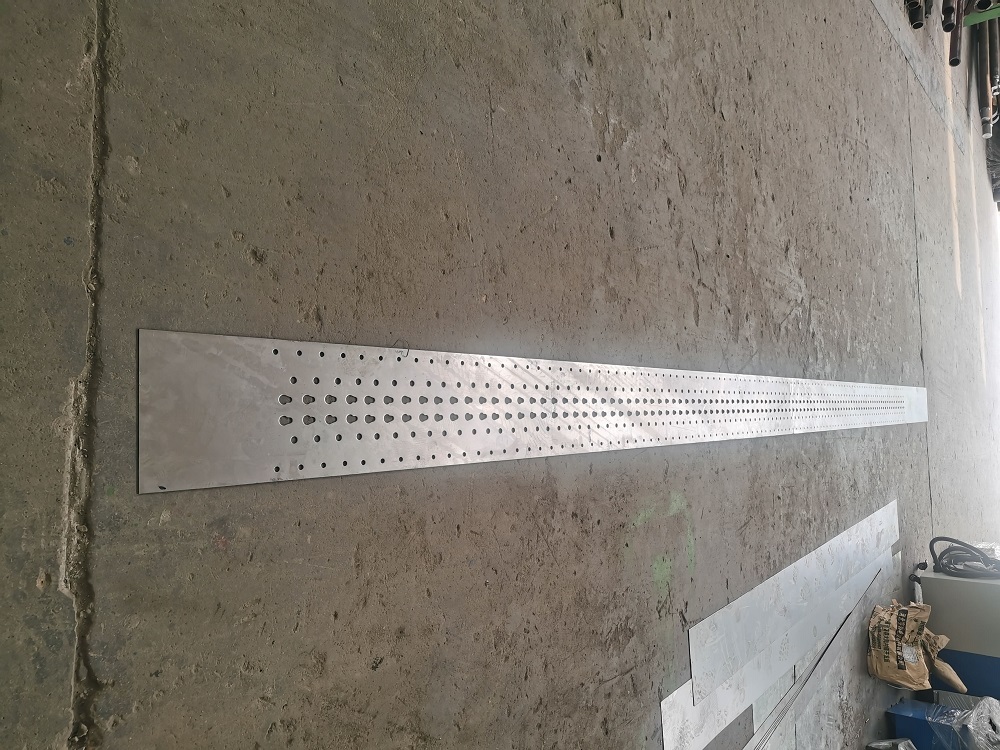

Teardrop Pallet Rack Upright machine will work like this
our technician with american visa. he can go mexico any time.
he will install whole line when punch machine and components arrival.
hydraulic punch also available
Technical Details
| The Line’s Specifications | |
|---|---|
| Weight | About 10000kgs |
| Whole line’s dimension | About 25m x 2m x 1.6m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized or Galvalume Coils |
| Thickness | 2.0-2.5mm |
| Coil width | 238mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 22-26 |
| Diameter of forming rollers shafts | 82mm |
| Roll Forming Speed | 8-10m/min |
| Production Speed | 8m/min |
| Forming rollers material | GCR15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 15kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
| Main Components | |
| Decoiler (manual and automatic for options) | 1 set |
| Guiding device | 1 set |
| Leveling system | 1 set |
| Punching system | 1 set |
| Roll Forming system | 1 set |
| Hydraulic Cutting system | 1 set |
| PLC control box | 1 set |
| Hydraulic unit | 1 set |
| Run outs tables | 1 set |
Racks provide secure upright storage as well as quick and easy upright set-up.
JSR machinery factory manufacture Rack forming machine professionally.
Operate easily , work automatically with PLC controller control.
Decoiler-Punch- forming -cut – run out
