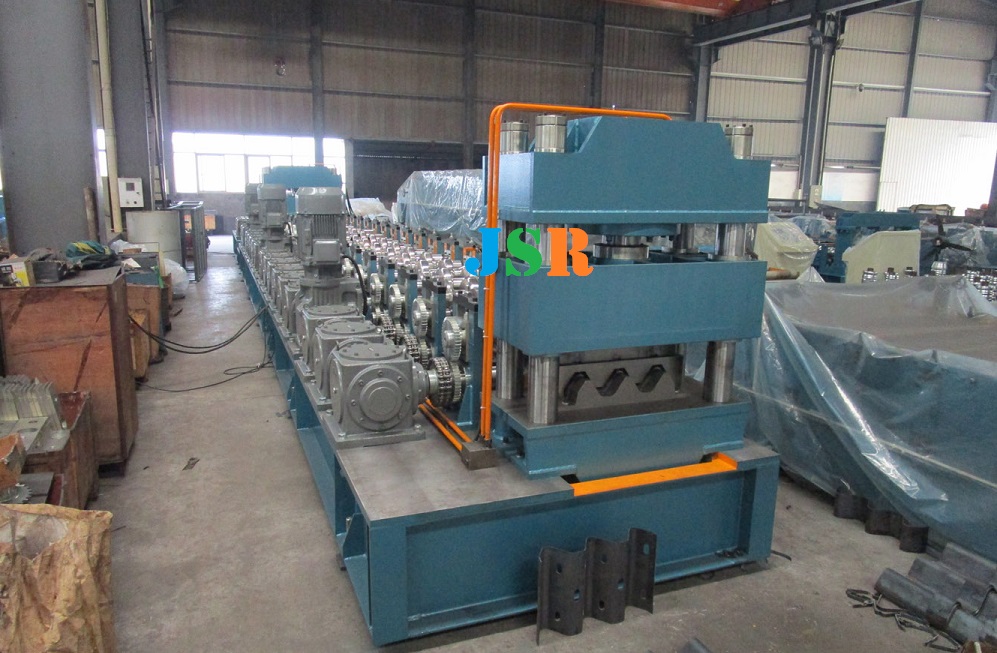

Guardrail Roll Forming Machine

Share on facebook
Facebook
Share on twitter
Twitter
Share on linkedin
LinkedIn

Description

Guardrail board produced by the guardrail forming machine is smooth,precise, which is easy to install and safer to use and durable.

guardrail forming machine adopt gearbox move the line,90 mm diameter solid shaft,22kw main motor, 15kw motor for hydraulic punch

  • Mitsubishi PLC to control the all working actions. Production quantity and each piece length will be automatically It is convenient to control the roll forming machine.
  • Mitsubishi converter adjustsspeed technology, realize the automatic production.
  • Operation language: ENGLISH or YOUR REQUIRED
  • siemens is optional

two wave or three wave guardrail forming machine can designed for you.

Specifications

Technical Details

Machine Specifications
Weight About 18000kgs
Whole line’s dimension About 25m x 6m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized or Galvalume Coils
Thickness 2-4mm
Coil width 482mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 16-18
Diameter of forming rollers shafts 90mm
Roll Forming Speed 10-15/min
Forming rollers material CR12 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 55kw
Hydraulic unit motor power: 22kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Leveling system 1 set
Punching system n 1 set
Roll Forming system (with gearbox transmission) 1 set
Hydraulic Cutting system 1 set
PLC control box 1 set
Hydraulic unit 1 set
Run outs tables 1 set
Guardrail Roll Forming Machine
End product view
Guardrail Roll Forming Machine
End product view
Guardrail Roll Forming Machine
Layout drawing of machine for reference

Guardrail Roll Forming Machine

APPLICATION

Guard rail or guardrail, sometimes referred to as guide rail or railing, is a system designed to keep people or vehicles from (in most cases unintentionally) straying into dangerous or off-limits areas. A handrail is less restrictive than a guard rail and provides both support and the protective limitation of a boundary.

JSR machinery factory manufacture guardrail forming machine with gearbox transmission.
Operate easily , work automatically with PLC controller control.
Decoiler-Punch- forming–cut – run out

Guardrail Roll Forming Machine
Hydraulic punch
Guardrail Roll Forming Machine
Gearbox transmision

Guardrail Roll Forming Machine
