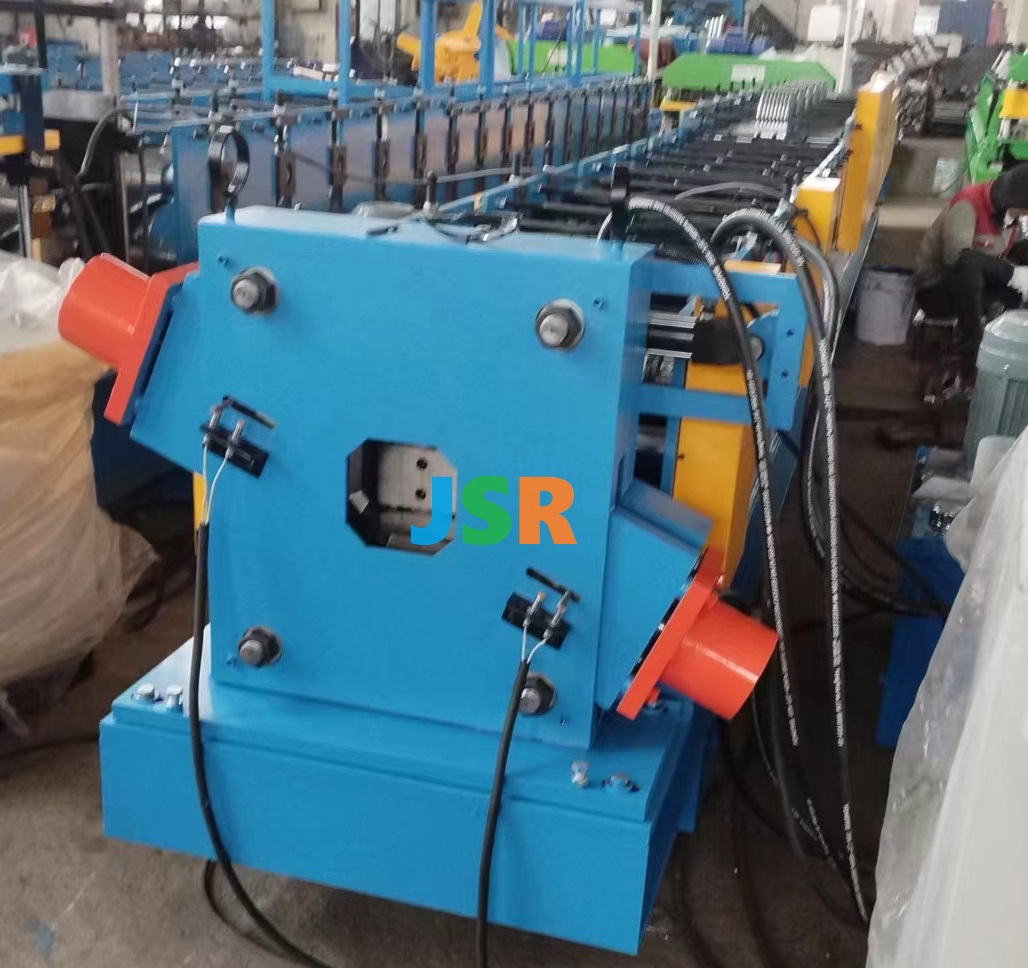

oversized downspout forming machine for larger size of 4” x 6”
and elbow machina
| Machine Specifications | |
|---|---|
| Weight | About 8000kgs |
| Size | About 11m x 1.2m x 1m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.4-0.6mm |
| Coil width | 505mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 18 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 8-12m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Motor of roll forming machine: 5.5kw |
| Motor of hydraulic cutter: 4kw | |
| Motor of elbow machine: 2.2kw | |
| Electric voltage | According to customer’s requirement |
| Main Components | |
| Decoiler (manual and automatic for options) | 1 set |
| Guiding device | 1 set |
| Roll Forming system | 1 set |
| Sawing Cutting system | 1 set |
| PLC control box | 1 set |
| Elbow machine | 1 set |
| Run outs tables | 1 set |
