Description

Jingshirui is one of the toppest roll forming lines,customized roll forming machine,Mashroom Shape Roll Forming Machine in China.During these years of exporting , Jingshirui now has rich experience in the worldwide markets

Specifications

Technical Details

Machine Specifications
Weight About 5000kgs
Size About 10m x 1.5m x 1.0m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material GI and GL coils
Thickness 1.0-2.0mm
Coil width 333mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 26
Diameter of forming rollers shafts 60mm
Roll Forming Speed 10-15m/min
Forming rollers material CR12 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5.5kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Roll Forming system 1 set
PLC control box 1 set
Hydraulic unit 1 set
Run outs tables 1 set
Mashroom Shape Roll Forming Machine

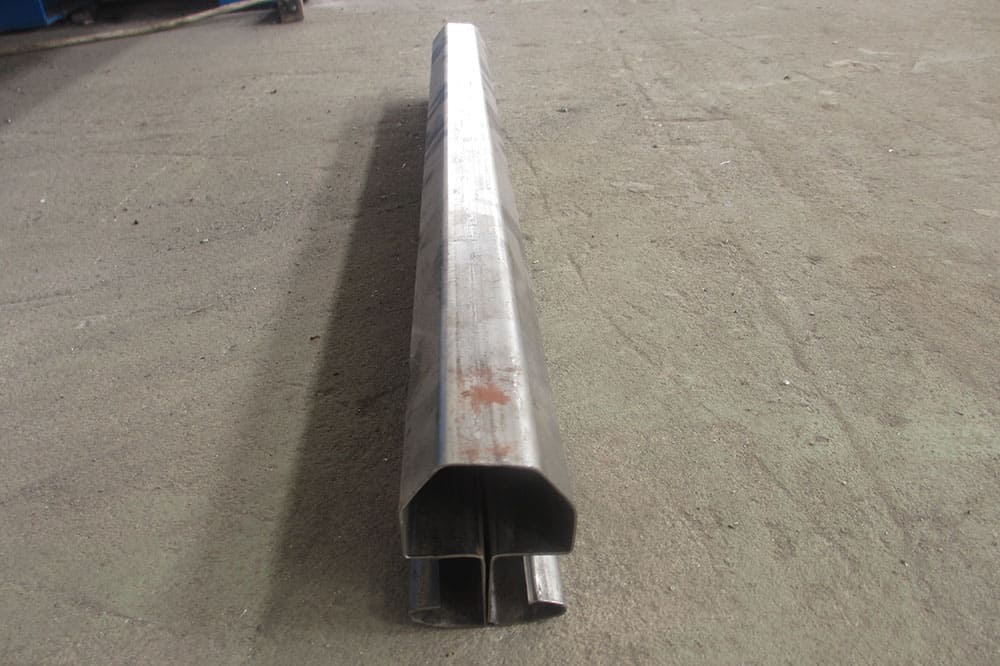

End product view
Mashroom Shape Roll Forming Machine

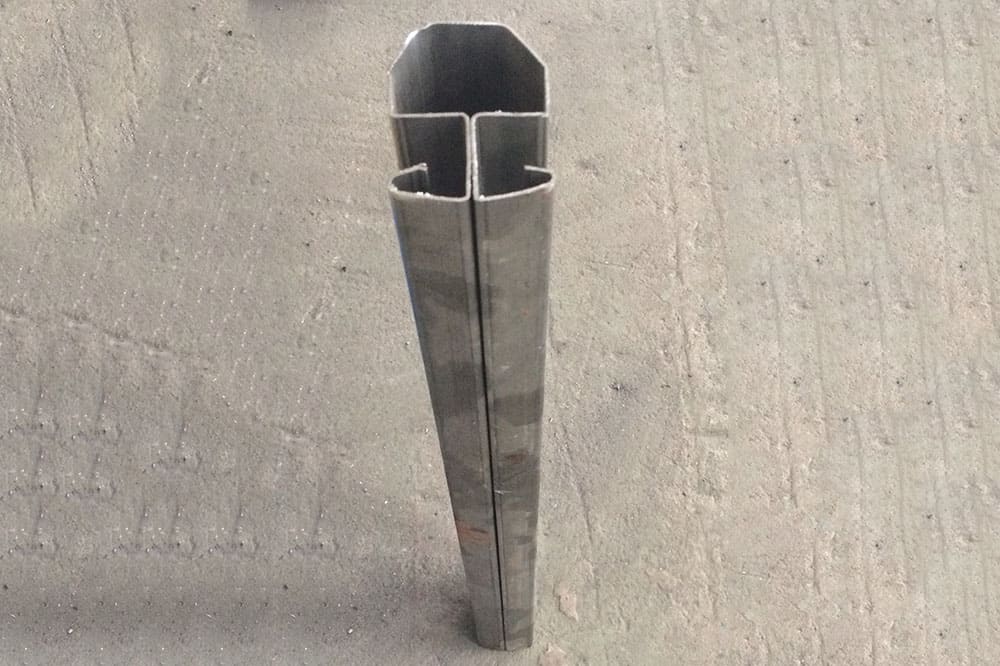

End product view



Mashroom Shape Roll Forming Machine

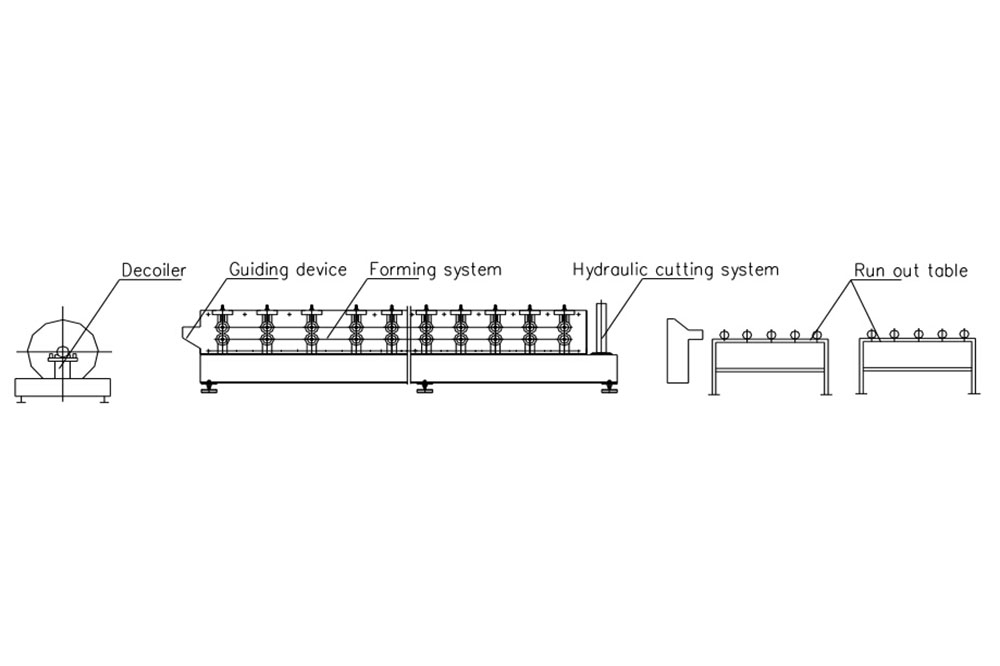

Layout drawing of machine for reference

Mashroom Shape Roll Forming Machine
