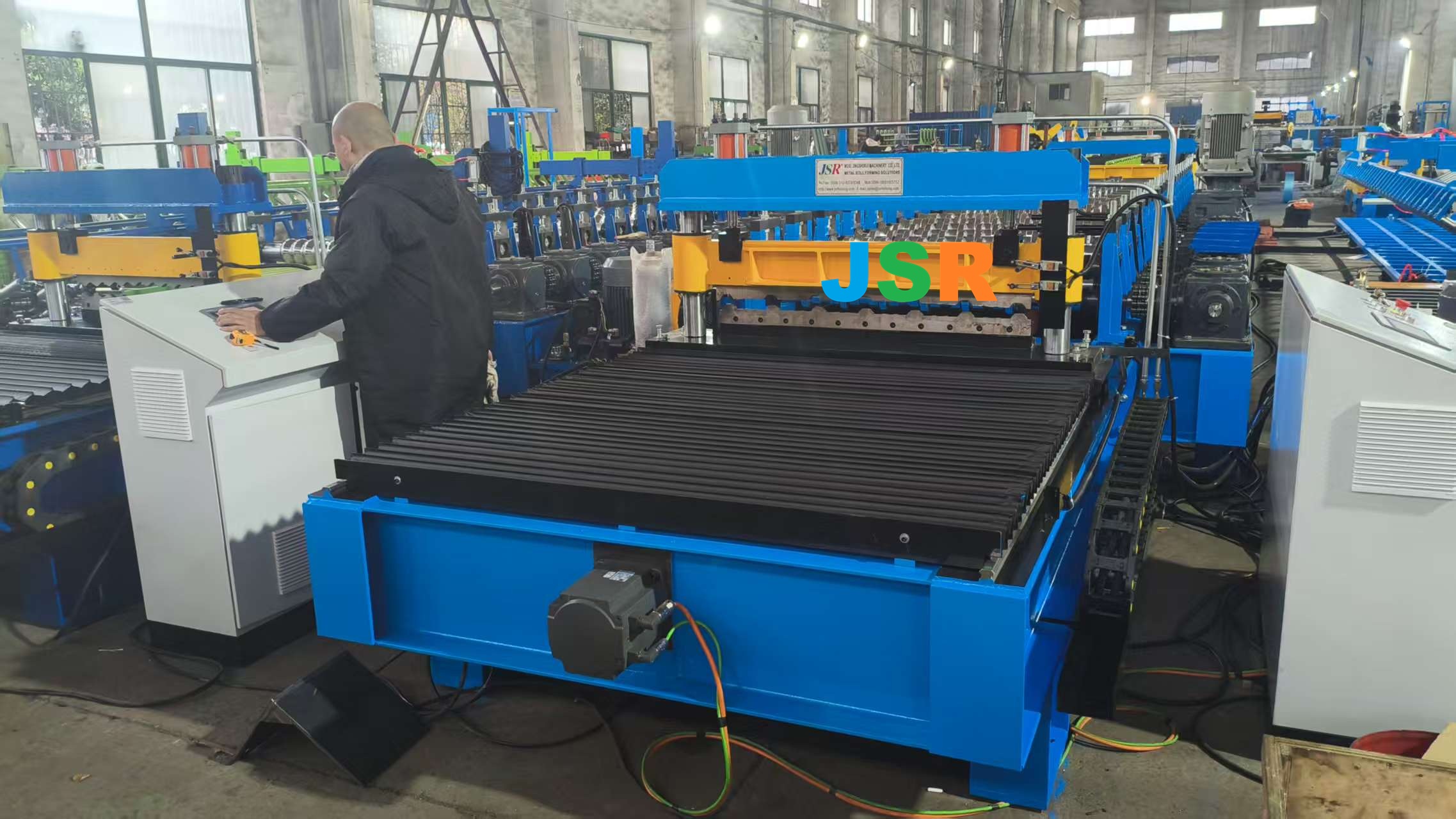

MÁQUINA PERFILADORA DE TECHOS METÁLICOS (TRAPEZOIDAL), to Ecuador
length 12.6m, width 2.1m , height 1.6m
pre cut and post non stop cut
Hydraulic motor on hydraulic station give power to cut 5.5kw
Main motor(forward and reverse)15kw
20 roller station
Gearbox move
include
5ton hydraulic decoiler and car
main machine
3m convey table
9m stacker
hydraulic station and plc controller
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 12000kgs |
| Size | About 12.6m x 2.1m x 1.6m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.7mm |
| Coil width | 1220mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 20 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 0-35m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | siemens PLC and Converter |
| Electric Power requirement | Main motor power: 15kw |
| cut motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
APPLICATION
JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced
Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut – run out
