Clean Room Panels
Clean Room Panels Used as Wall and Ceilings
Alternate Surfaces and Cores for Different Clean Room Type
Four Sides Sealed Avoid Core Material from Contaminating
Customized Clean Room Panels Size, that mean panel width is adjustable

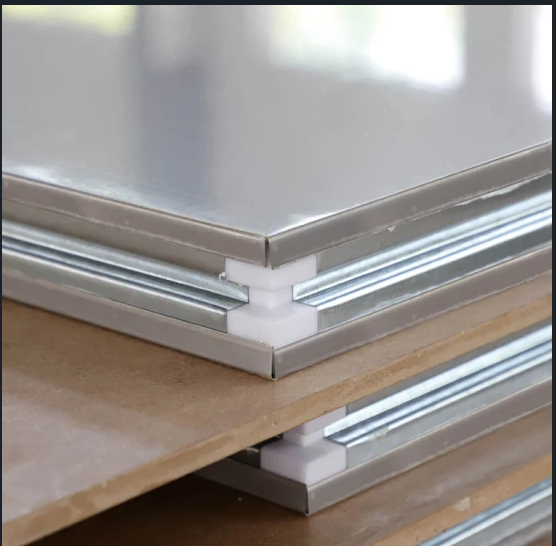

Clean Room Panels are composed of 3 layers, the external and internal is galvanized sheet or Aluminum sheets, and core materials used high density insulation core

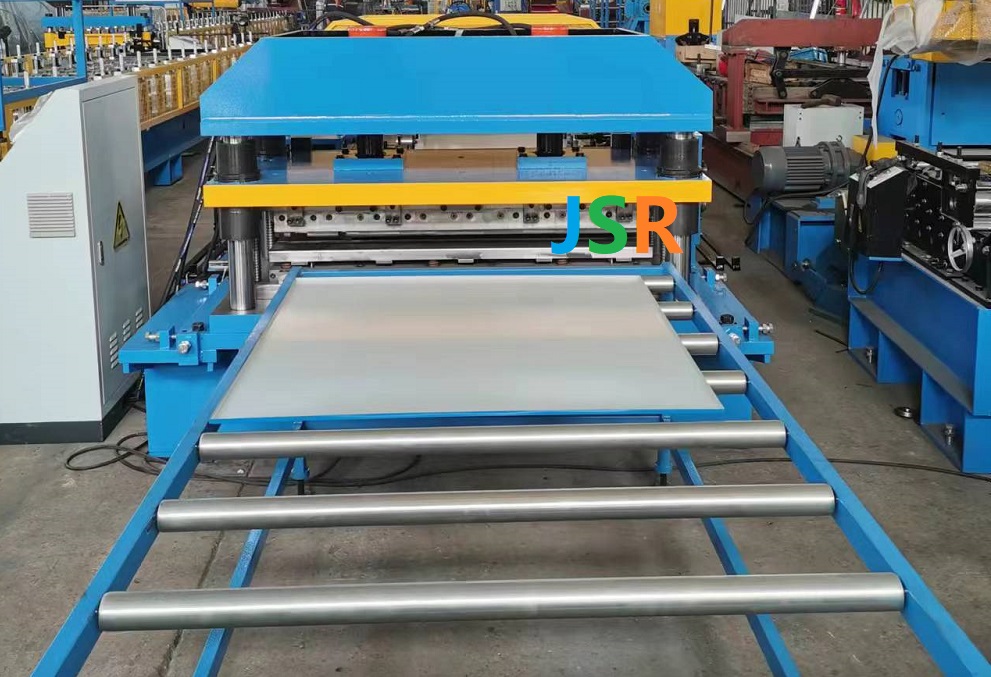

our roll forming machine to make manual clean room panel metal face skin
first feeding raw material in, then punch gap, forming, at last, cut ,and the same time bending.
roll forming machine include 5 ton manual decoiler, machine, hydraulic station, PLC controller, run out table
mitsubishi plc and converter control
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 6000kgs |
| Size | About 10m x 1.5m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.8mm |
| Coil width | 1220mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | about 15 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
Clean room is a special designed room to exclude the particles in the air, bacteria and other harmful air pollutants, and the indoor temperature, cleanliness, interior pressure, air velocity and air distribution, noise, vibration, and lighting, static control within the scope of a certain demand.
