Sandwich panels are prefabricated units consisting of two steel-sheet facings (external and internal) and a structural-insulation core between them. The core of the panel guarantees thermal and acoustic insulation, and, being made of PU, additionally provides high protection against fire. Steel facings are protected against corrosion, and, together with the core, give the panel high mechanical strength.

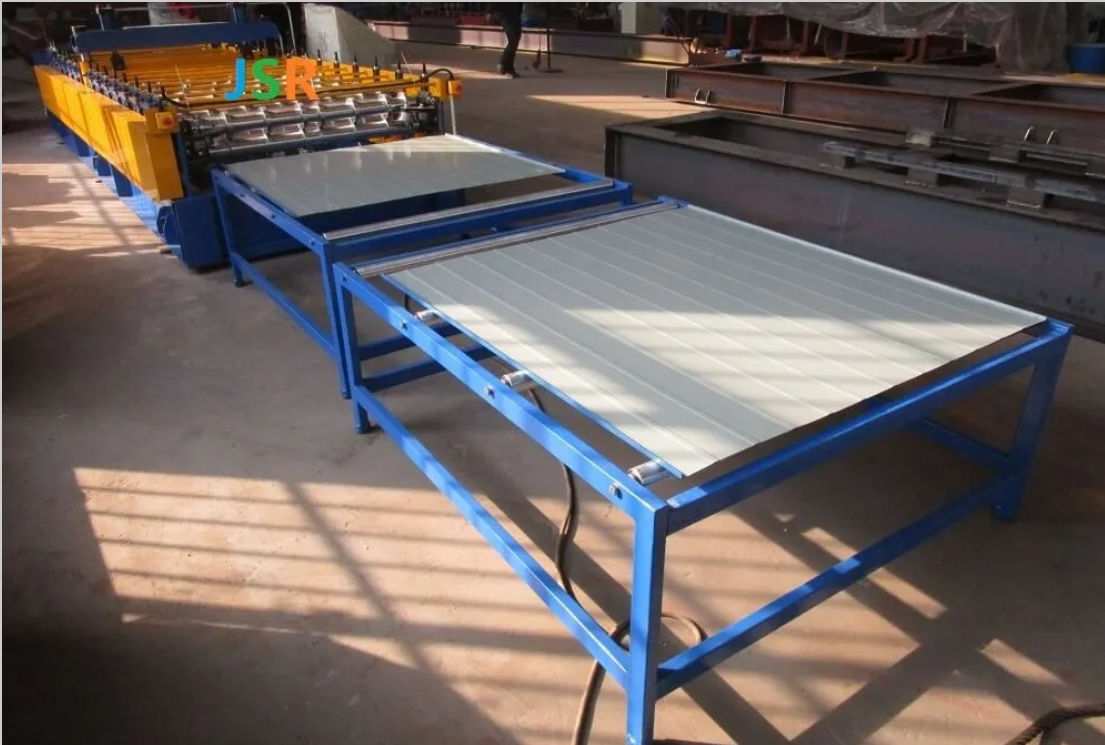

our roll forming machine make steel sheet facing of sandwich panel for discontinuous production
roll forming machine include
5 ton manual decoiler
forming machine with hydraulic cut
plc controller
hydraulic station,
run out table
siemens plc and screen and yaskawa converter.
| Machine Specifications | |
|---|---|
| Weight | About 5000kgs |
| Size | About 6m x 1.5m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.8mm |
| Coil width | 1220mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | about 10 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
