Metal fencing panels are a durable alternative to standard fencing. Resistant to corrosion, rust and moisture, steel sheets for fencing are popular in many gardens.
whole fencing panals need three machines to make.

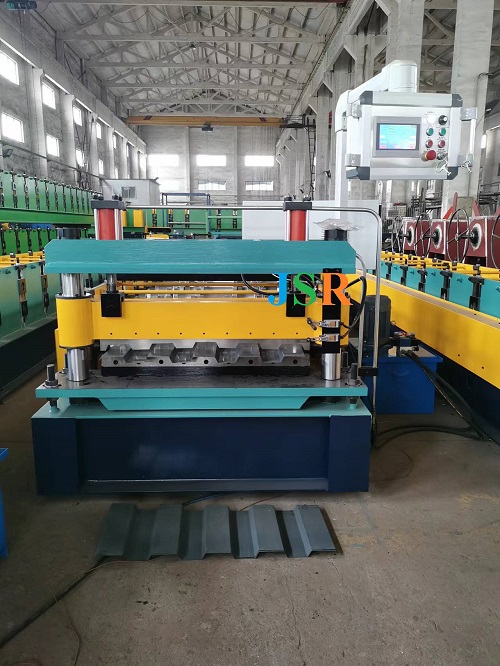

one make fencing panel in middle

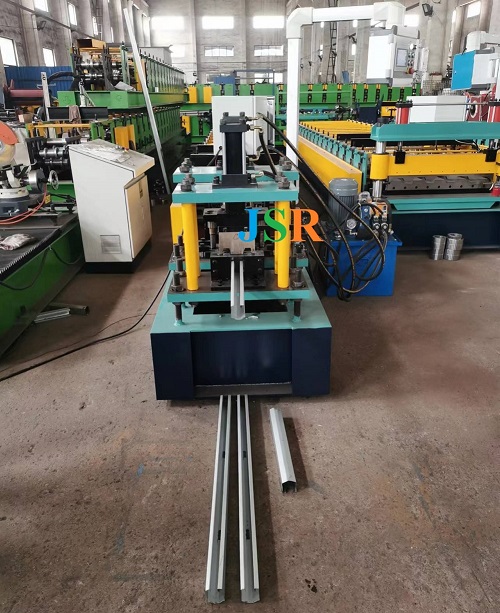

one make fencing rails at top and bottom

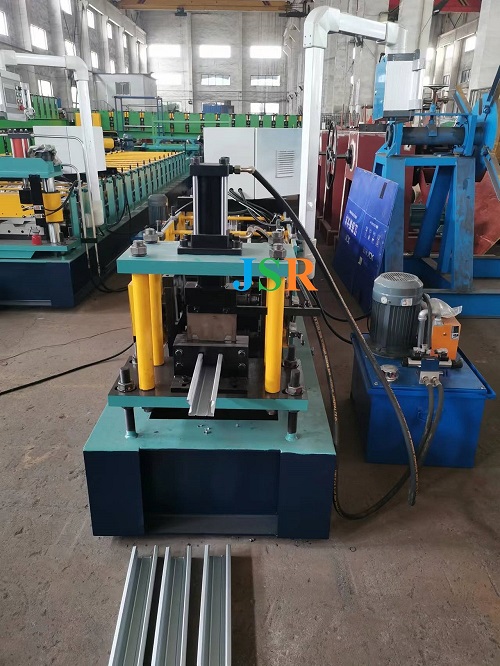

one make fending post at side
we also make Sipca Metalica gard metal fence Roll Forming Machine
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 5000kgs |
| Size | About 8m x 1m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Colored Steel Coils |
| Thickness | 0.3-0.7mm |
| Main Technical Parameters | |
| Quantity of forming rollers stations | about 18 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 3kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
