JSR factory is specialized in making thin material 0.18-0.25mm or hard material corrugate machine.
our corrugate machines are already in Australia, Philippines,Bengal, Malawi, Mexico,Honduras, Guatemala, Colombia……
for thin and hard material, people used barrel machine to make, the disadvantage of barrel machine is manual feeding cutted pieces. but it can make corrugate sheet with thin and hard material .
our technician Yangming, has been in roll forming for more than 20 years, he has knowledge and technical support to improve corrugate forming machine with thin and hard material
the distance between rollers is 0.3mm, while material 0.17mm, that mean rollers can not touch material, not to say form the material. which will make corruage sheet effective width much wider, that mean the final corrugate sheet ugly in look,
wave like triangle, wave flatten, both two side wave even flatten….

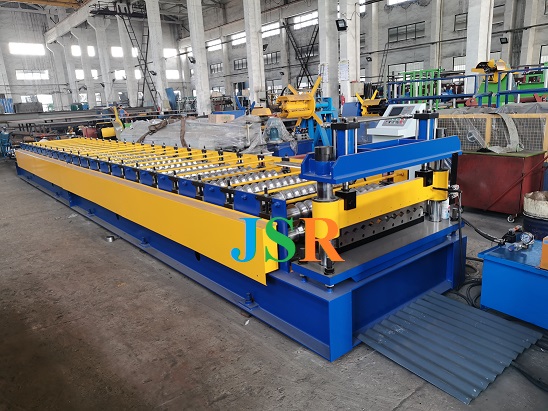

corrugate sheets from our roll forming machine has no such problem, we make special design rollers, and use about 23 rollers stations to form the corrugate sheets.
for now, you can see from video, we are making four such corrugate machine in our factory, you will see the corrugate sheet 0.17mm thickness, as thin as paper, but final shape very beautiful.
the advantage of roll forming machine, raw material coils, automatically work, to make any length of corrugate sheets.
Standard roll forming machines component(working speed about 15-20m/min): 7 ton manual decoiler, forming system with post cut, hydraulic station, PLC controller, run out table without power
Full automatical forming machine component(working speed up to 60m/min): hydraulic decoiler, forming system with post cut, hydraulic station, PLC controller, automatic stacker
Roll forming line for roof panel is widely used to produce roofs and walls of workshops, warehouses and steel structure buildings, provided with high reliability and durability,advantage of easy installation and low cost.
here is mini wave forming machine for fence, or mini corrugate sheet forming machine
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 7500kgs |
| Size | About 10m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Colored Steel Coils |
| Thickness | 0.3-0.7mm |
| Coil width | 960mm |
| Yield Strength | 550Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 20-22 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced
Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut – run out
roll forming machine working video in customer factory
cladding profile making machine in India
Mini orb profile forming machine in Malaysia
IBR roll forming line in Malawi
trapezoidal roll former in Colombia
fast speed roof panel forming machine in Bengal
