Forming Machine with Cassette structure means two sets of rollers sharing the same base, same control system and power system. this is good choose for two profile produtions, each production is not large quantity.

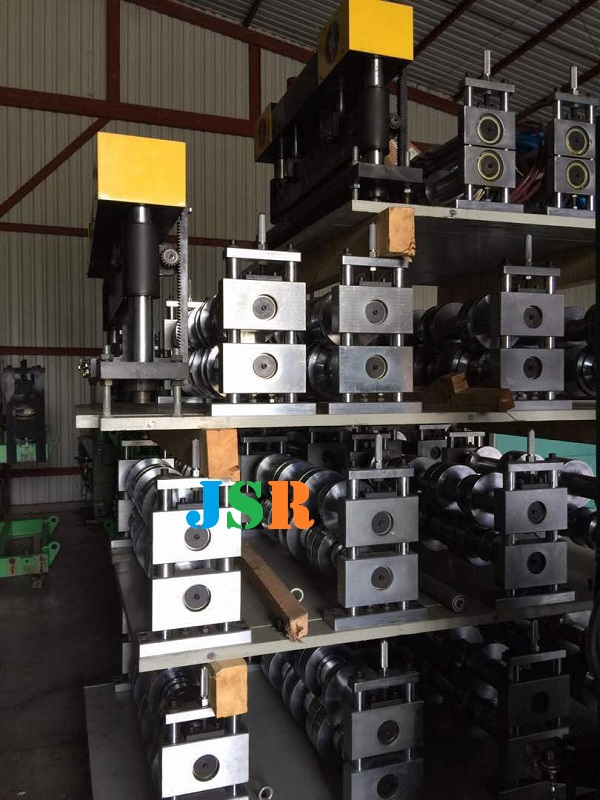

Cassette machines are easy to change whole set rollers, only left the whole set rollers and replaced with another whole set rollers, EASY and Convinient, no need to adjust rollers.

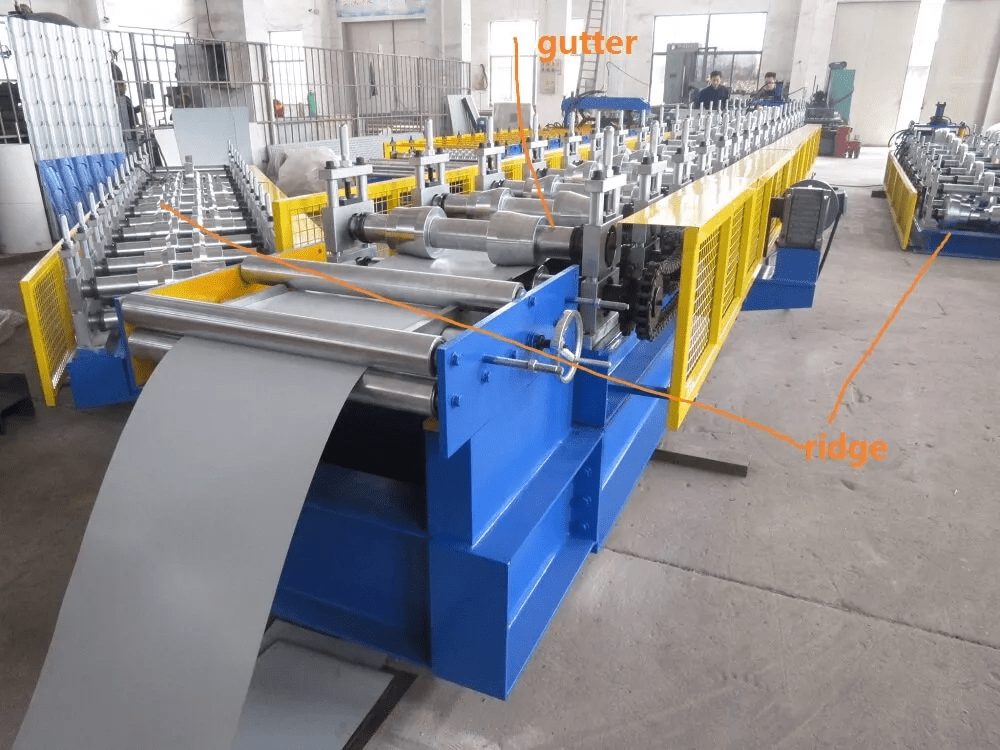

for first cassette forming machine, combined with gutter profile and ridge profile. Gutter and ridge profile are not suitable to make double layer machines,
and second cassette rolling machine, combined with roofing profile and decking profile, roofing and deck profiles are not suitable to make double layer machines too.
only two roofing profiles with two cut blade cut suitable for double layer machines, other profiles require three cut blade or the profile is high is suitable for cassette structure.

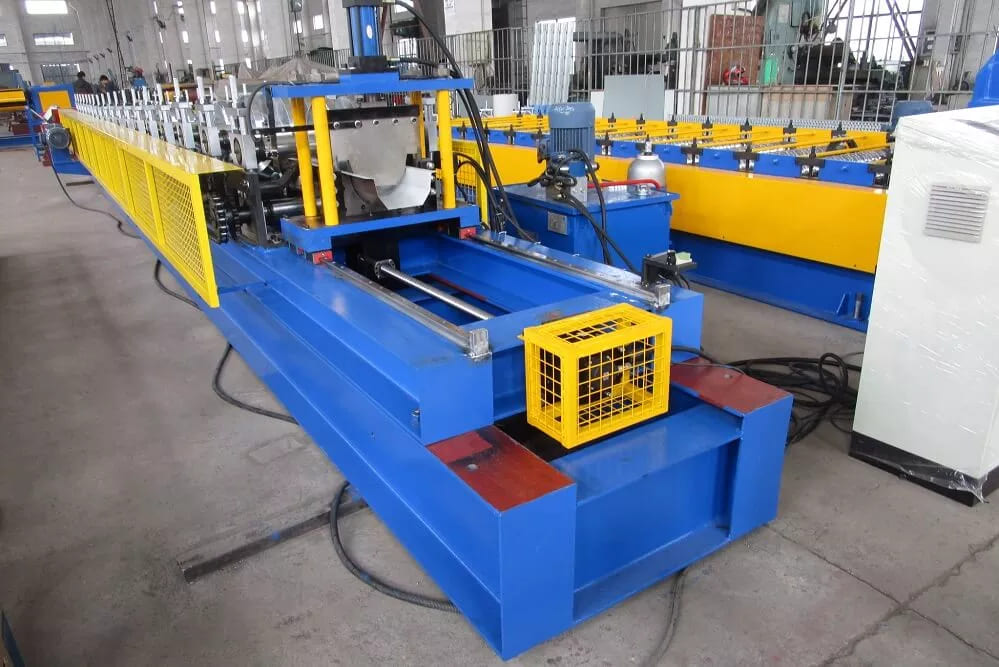

Besides, this roll forming machine adopted fly cut or non stop to cut, which increase working speed
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 10000kgs |
| Size | About 12m x 1.0m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.8mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Diameter of forming rollers shafts | 55mm |
| Roll Forming Speed | 25m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 5.5kw | |
| Electric voltage | According to customer’s requirement |
Fascia covers to protect timber against splitting flaking and peeling.
Gutter minimise the risk of serious water damage to buildings.
Downpipe is bridge let water pass from gutter to a local stormwater.
JSR machinery factory can manufacture fascia cover machine, gutter machine , downpipe machine with high quality and reasonable price to you, you will emjoy one stop purchase from us.
We already sell half round gutter machine, square gutter machine, fascia cover machine to Australia.
Machine work automatically, operate easily.
Decoiler- forming-cut – run out
