You can buy good quality Welding Beam Roll Forming Machine, we are the best distributor from China market.
Customer first buy forming machine for peinazo size 38×100, now buy another machine for peinazo size 100×100

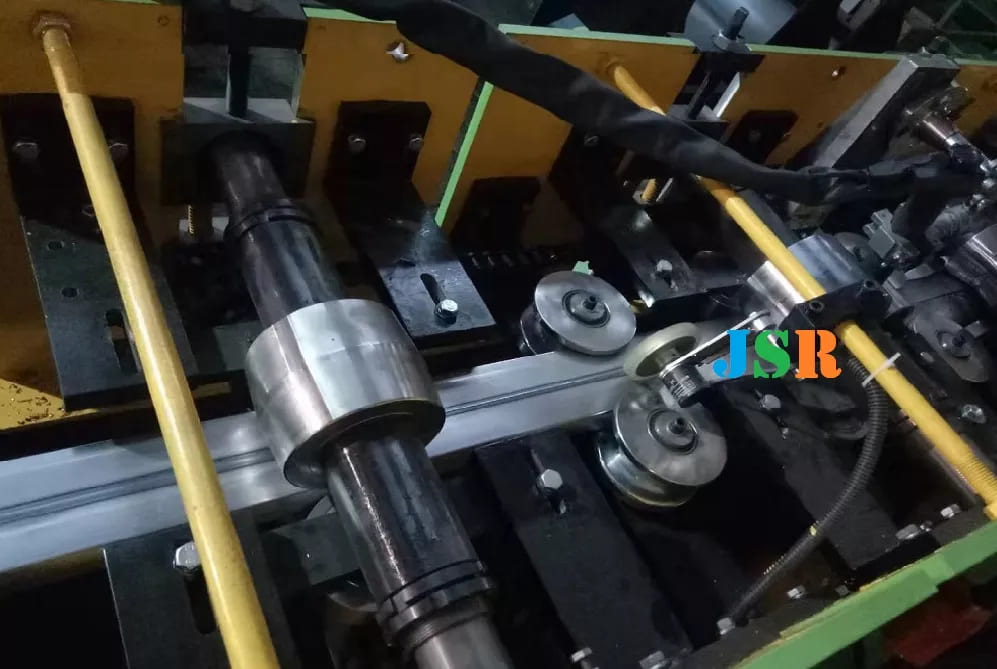

such tube forming machine include 3 ton manual decoiler, forming rollers with post saw cutting device( non stop),
hydraulic station and plc controller, run out table.
machine adopt argon protect welding system.
Technical Details
| The Line’s Specifications | |
|---|---|
| Weight | About 7000kgs |
| Whole line’s dimension | About 12m x 2m x 1.6m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized or Galvalume Coils |
| Thickness | 2.0mm |
| Coil width | 238mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 20 |
| Diameter of forming rollers shafts | 82mm |
| Roll Forming Speed | 8-10m/min |
| Production Speed | 4-6m/min |
| Forming rollers material | GCR15mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: about7.5kw |
| Hydraulic unit motor power: about 5.5kw | |
| Electric voltage | According to customer’s requirement |
| Main Components | |
| Decoiler (manual and automatic for options) | 1 set |
| Guiding device | 1 set |
| Leveling system | 1 set |
| Roll Forming system | 1 set |
| Sawing system | 1 set |
| PLC control box | 1 set |
| argon protect welding device | 1 set |
| Run outs tables | 1 set |
