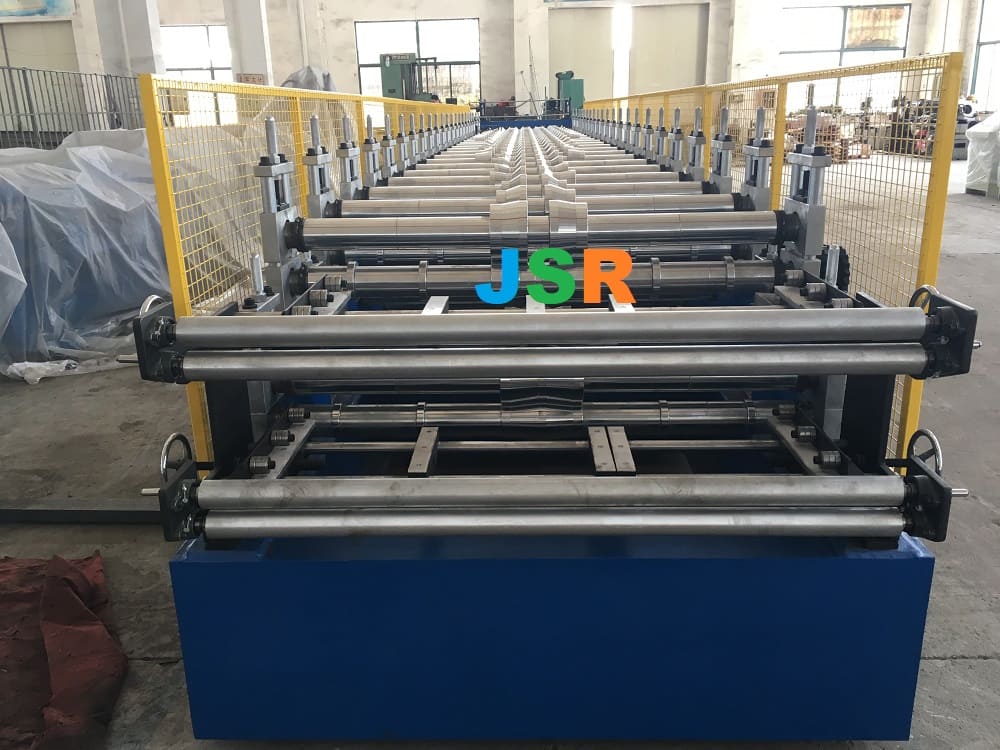

Double layer forming machine in UAE

Double layer machine mean two roll forming machines sharing with one machine base and motor, one hydraulic station, one plc controller.

Therefore, double layer machine only work one layer at one time.

If production requirements are not big, or factory space is limited, double layer machine is good choose for two profiles.

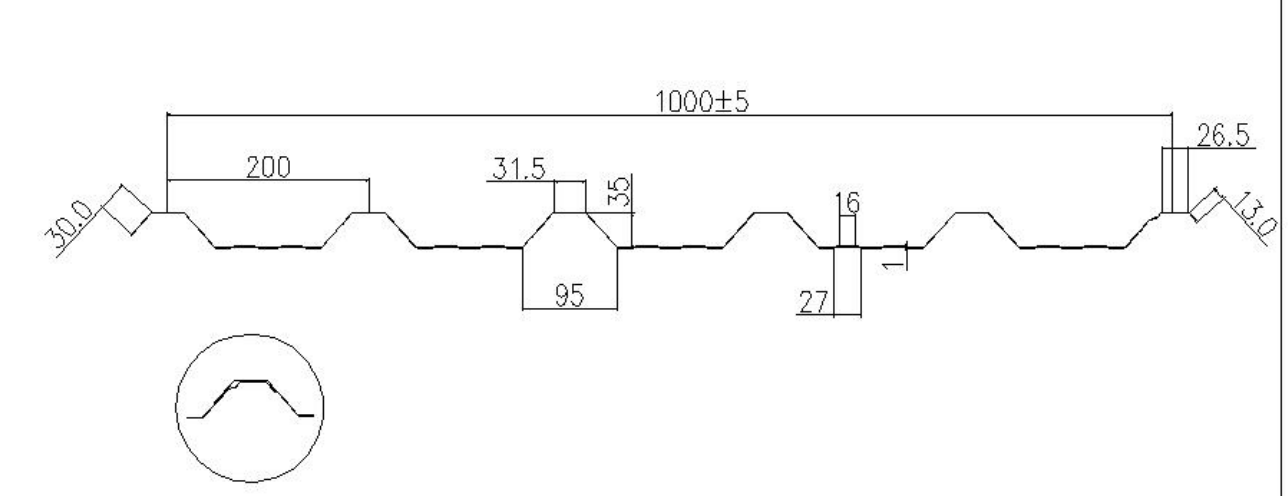

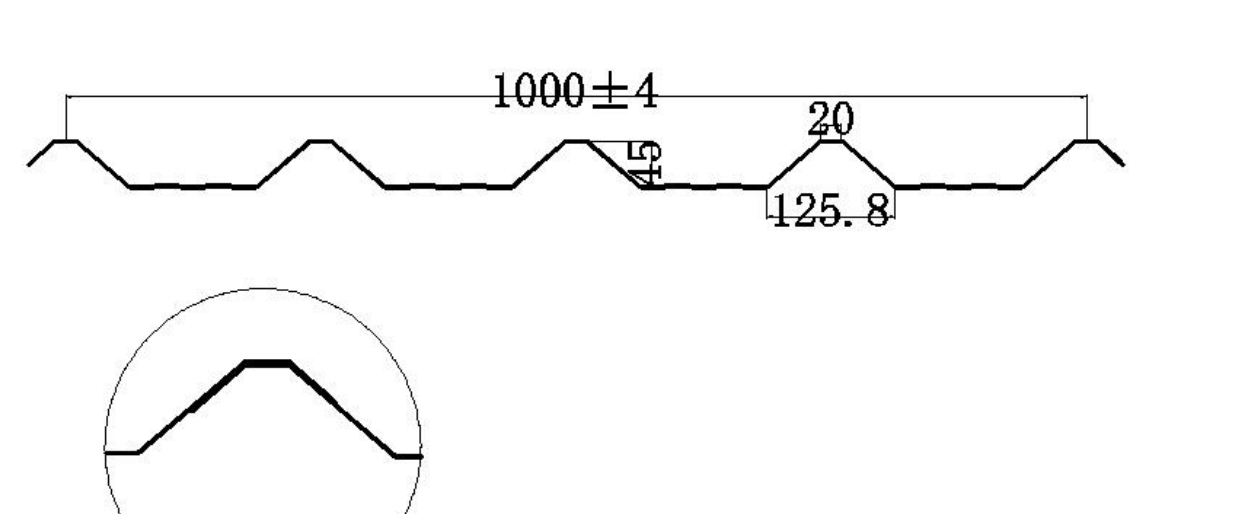

This roll forming machine to manufacture single skin profile corrugate sheets TR35/200 & TR45/250(WALL& ROOF)

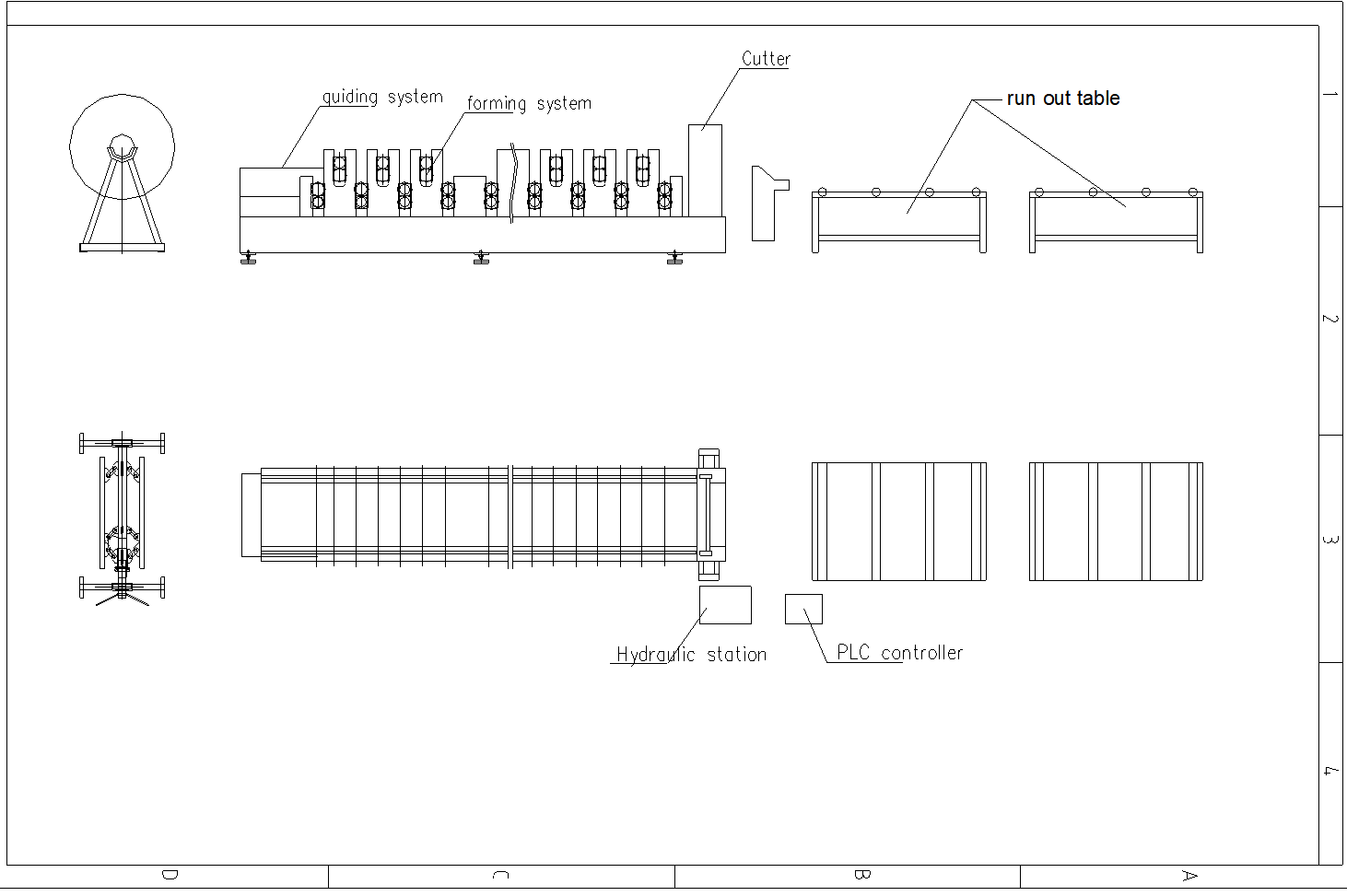

layout of double layer machine for your reference.

process: decoiler -forming- post cut- roofing sheets out

Hydraulic decoiler and stacker are available to enable machines’full automatically work with one worker operation.

YouTube player




Machine Specifications
WeightAbout 12000kgs
SizeAbout 11m x 1.7m x 1.5m (length x width x height)
ColorMain color: blue
Warning color: yellow
Suitable Raw Material
MaterialColored Steel Coils
Coil width1220mm
Yield Strength2350Mpa
Main Technical Parameters
Quantity of forming rollers stations20-22
Diameter of forming rollers shafts75mm
Roll Forming Speed15-20m/min
Forming rollers materialNo.45 steel, coated with chromed treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric Power requirementMain motor power: 7.5kw
Hydraulic unit motor power: 3kw
Electric voltageAccording to customer’s requirement
