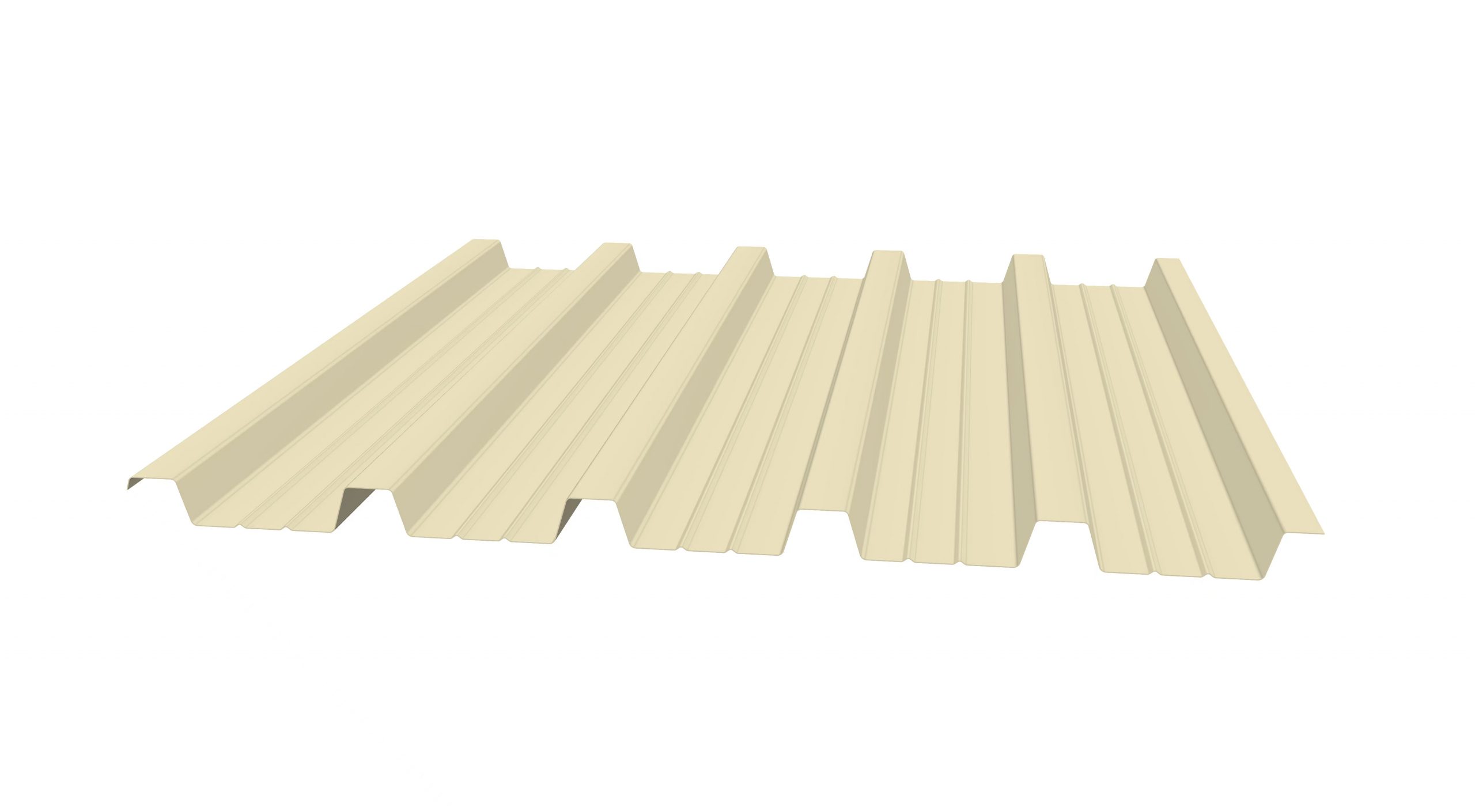

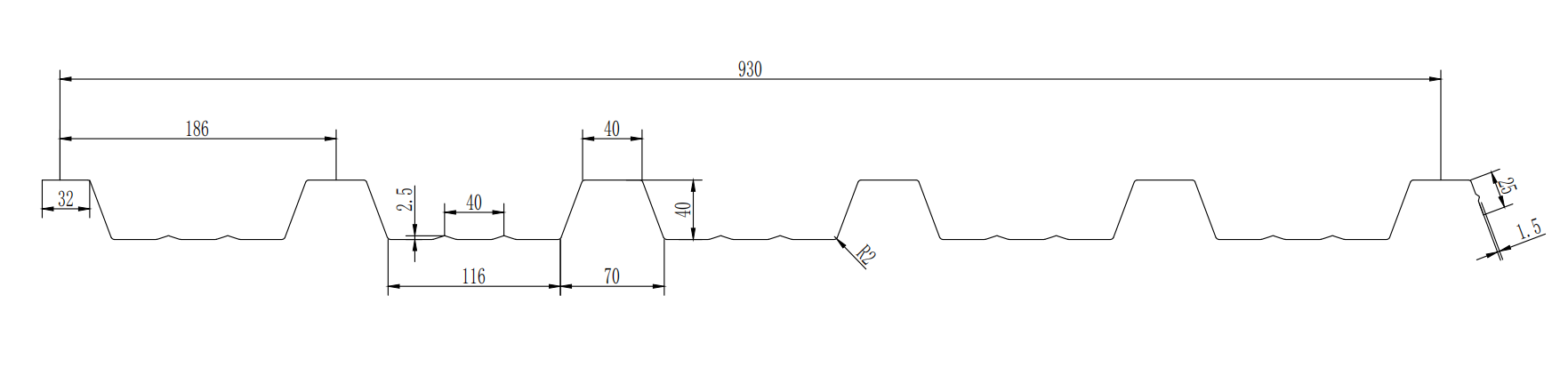

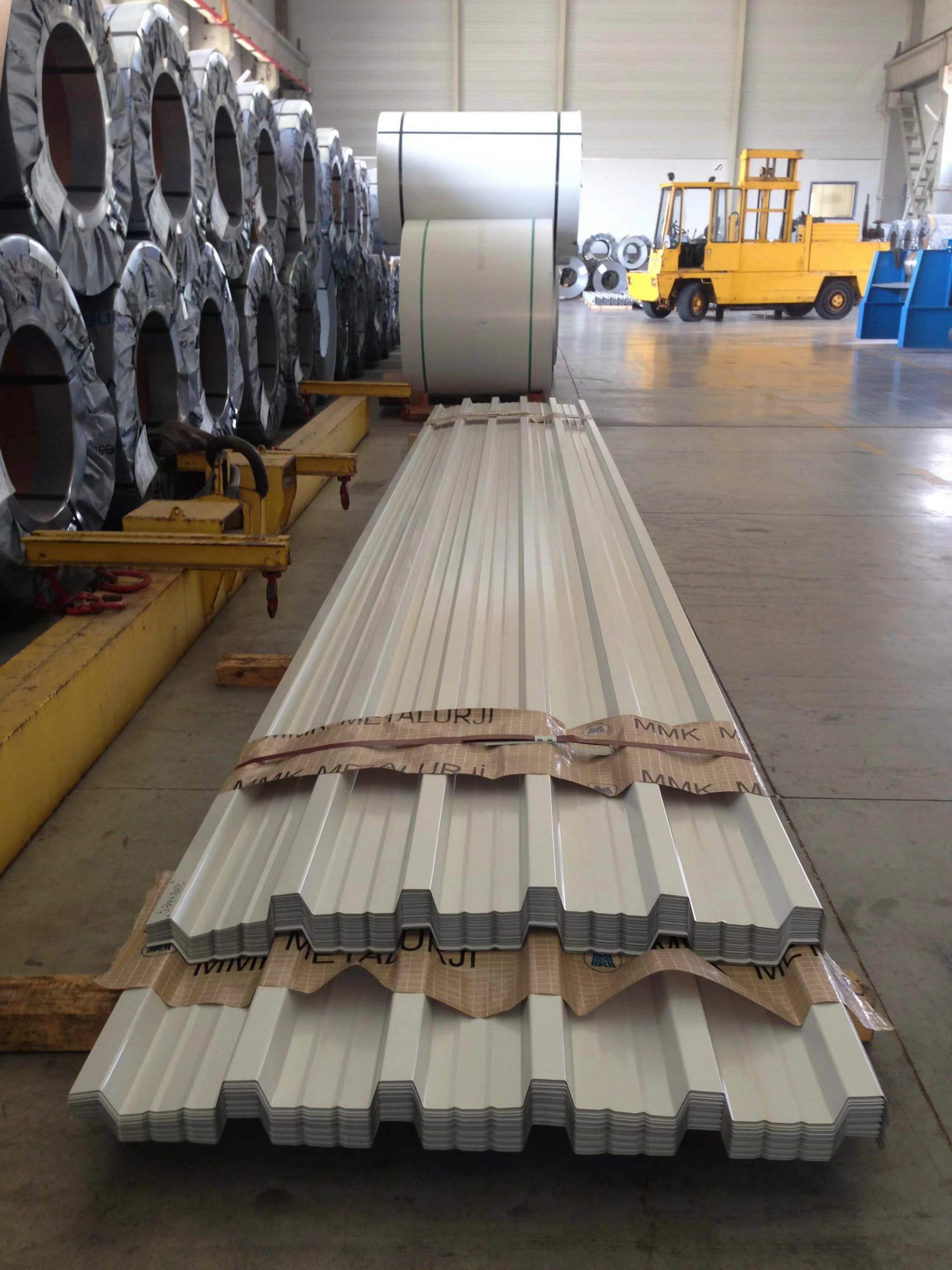

Trapezoid LT40 profile is popular Bulgaria and nearby countries

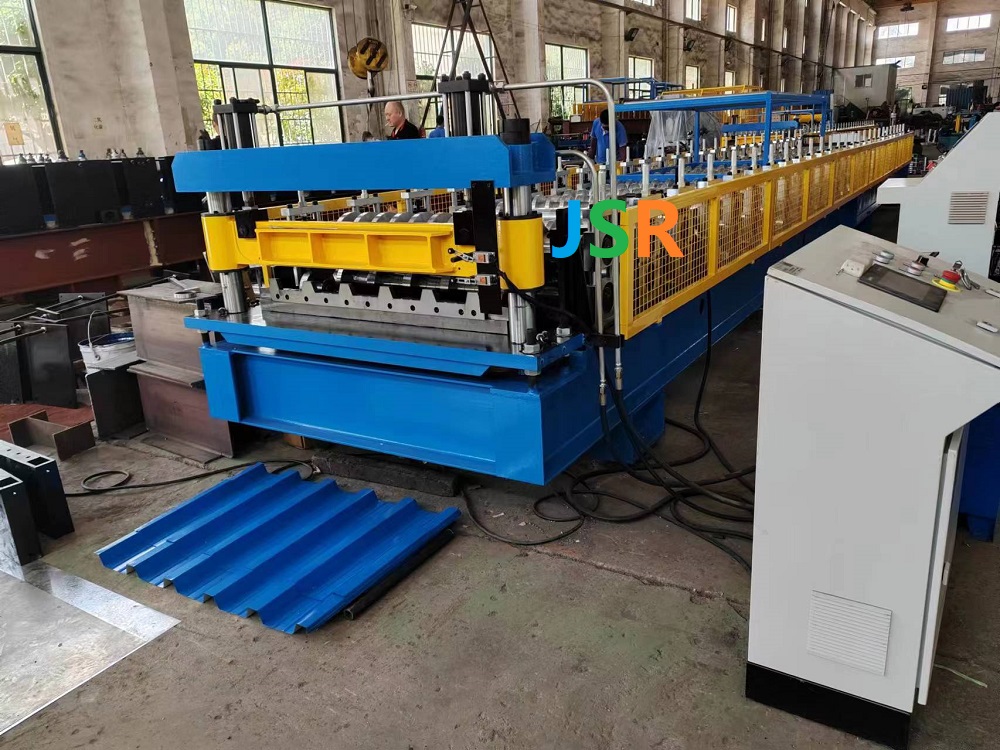

Trapezoid LT40 profile machine summary
mitsubishi or siemens PLC , converter and screen.
main motor power 7.5kw
hydraulic power3kw
26 roller stations.
75mm diameter solid shaft.
suitable for one 40 GP loading.
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 12000kgs |
| Size | About 11m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.7mm |
| Coil width | 1250mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 26 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
