Wave Rib Tile Profile Sheet
Architecturally Attractive, Durable and add Aesthetic Look to the Building
Strong, Resistant to fire and to all Weather conditions
Easy to assemble. Saves time and labor cost
Light, Easy to handle and store
Does not brake, crack or leak

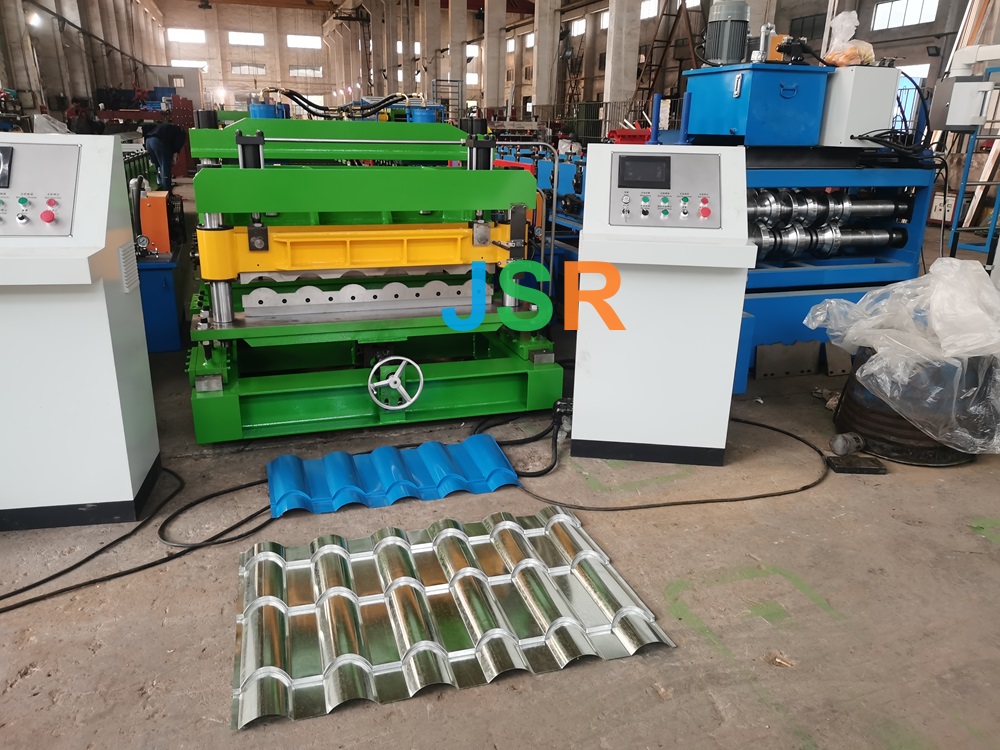

wave rib tile profile sheet from our machines,
precisely connect between left sheet and right sheet ,
it is very important roofing will be waterproof, not leak water between gap.
besides, our machine is stable working, producing beatiful tile sheets,
easy to operate, we only put in tile length, step length, pieces, machine automatically work.
suitable material, PPGI or aluminiun
suitable thickness ,0.4-0.6mm
suitable width , 1200mm or design to your requirement.
working speed , about6m/min
machine weight ,about 10 ton
machine size, about 10m length, 1.6m width , 1.5m high, suitable for 40 GP loading.
power , 5.5kw for main motor, 11kw for hydraulic motor
control , mitsubishi plc , converter, screen
here suggest some popular tile, such as aluminiun metecoppo tile and steptile in Nigeria ,galvateja in Mexico, clasic steptile is most popular in world, monterry tile is popular in Russia…..
