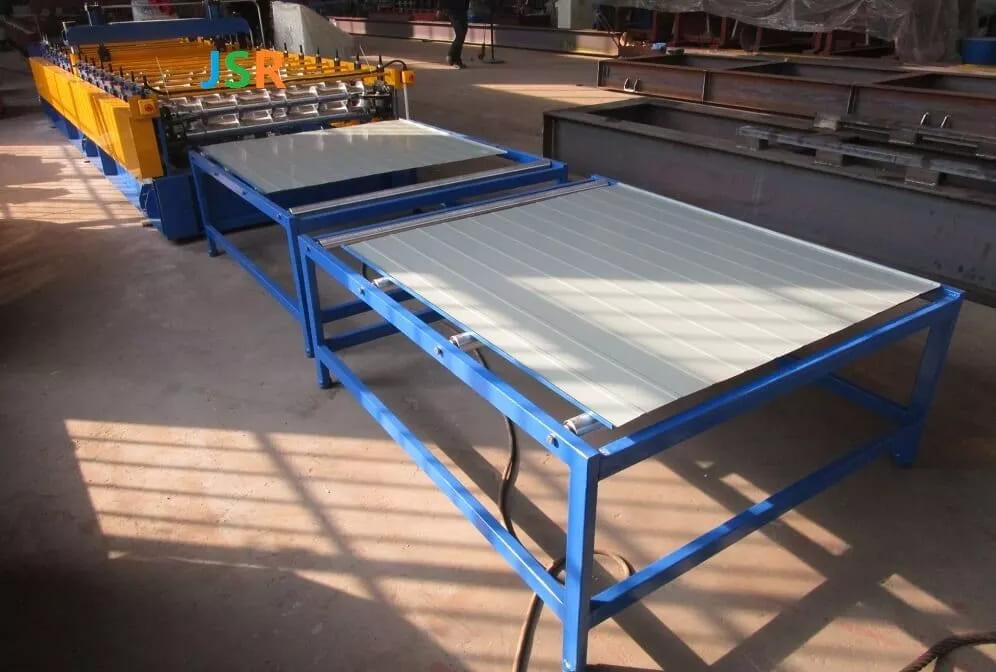

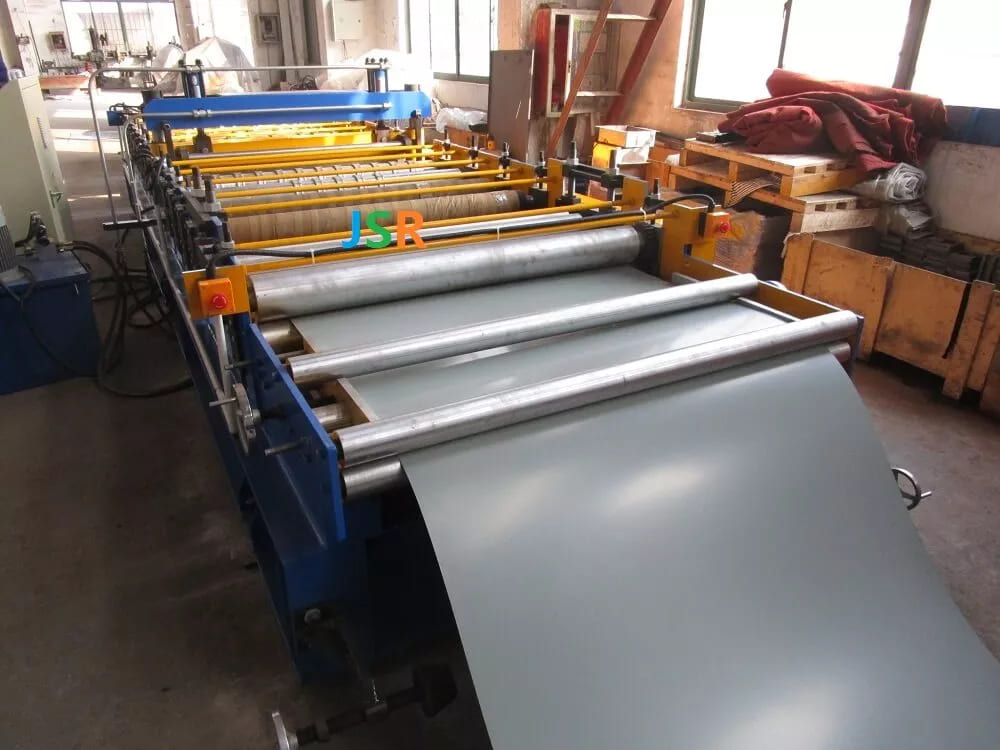

sandwich panel sheet forming machine make up and bottom sheets for insulated Sandwich Panel.
Discontinuous panel filled polyurethane used for insulated wall and roof building panels, garage doors, entry doors, and refrigeration coolers.
that is first make up and bottom sheet, then take sheets to discontinuous Insulated Sandwich Panel Lines to fill in polyurethane for sandwich panel.
benefits of a sandwich wall system
Weight saving.
Fast installation.
Good thermal insulation. …
Excellent non-combustible and acoustic performance.
our JSR sandwich panel sheet forming machine make SMOOTH AND FLAT sheets, which allow final sandwich panel smooth and flat.
We also make adjustable rollformer for sandwich panal sheets.
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 5000kgs |
| Size | About 6m x 1.5m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.8mm |
| Coil width | 1220mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | about 10 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 5.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
