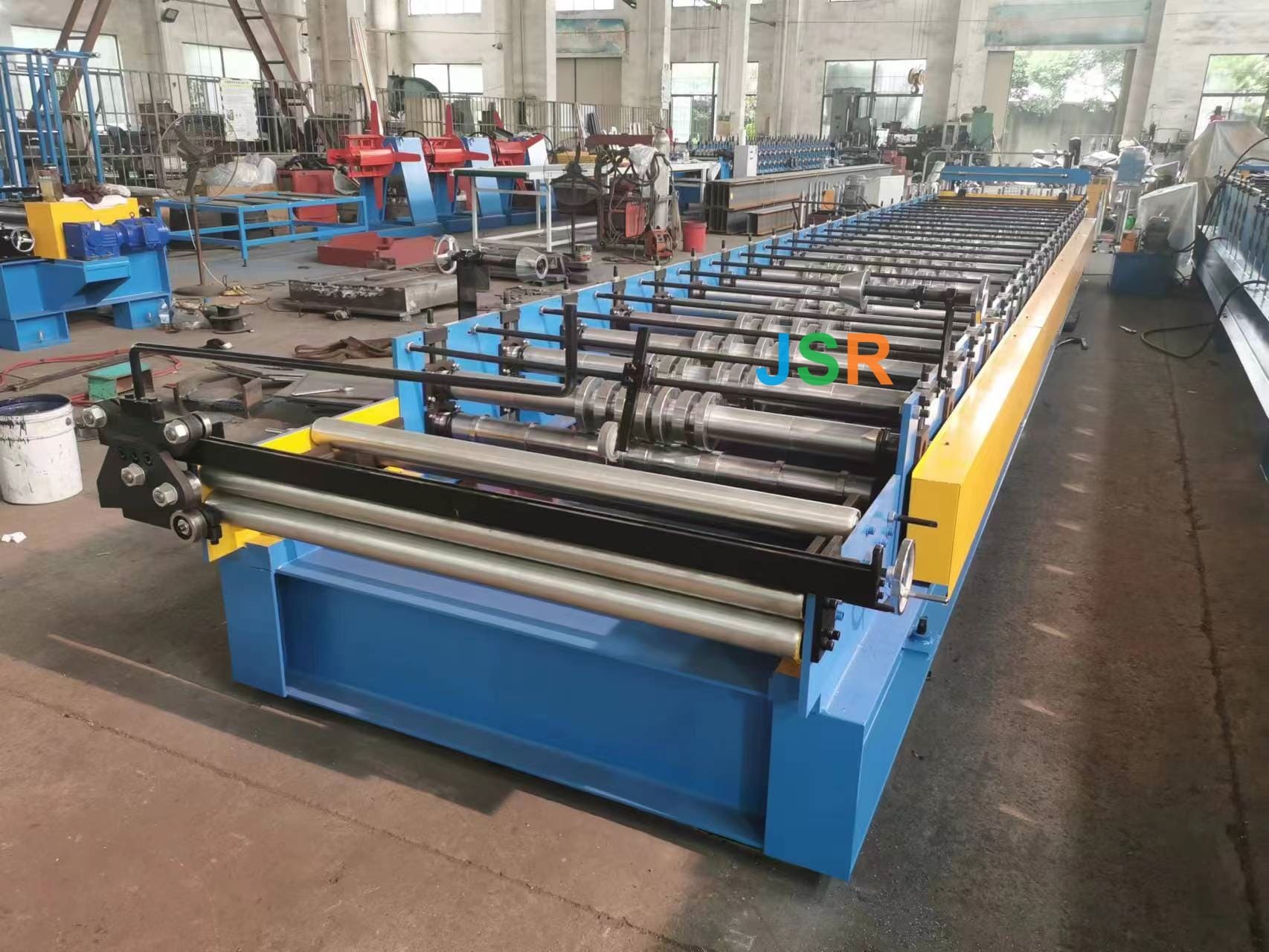

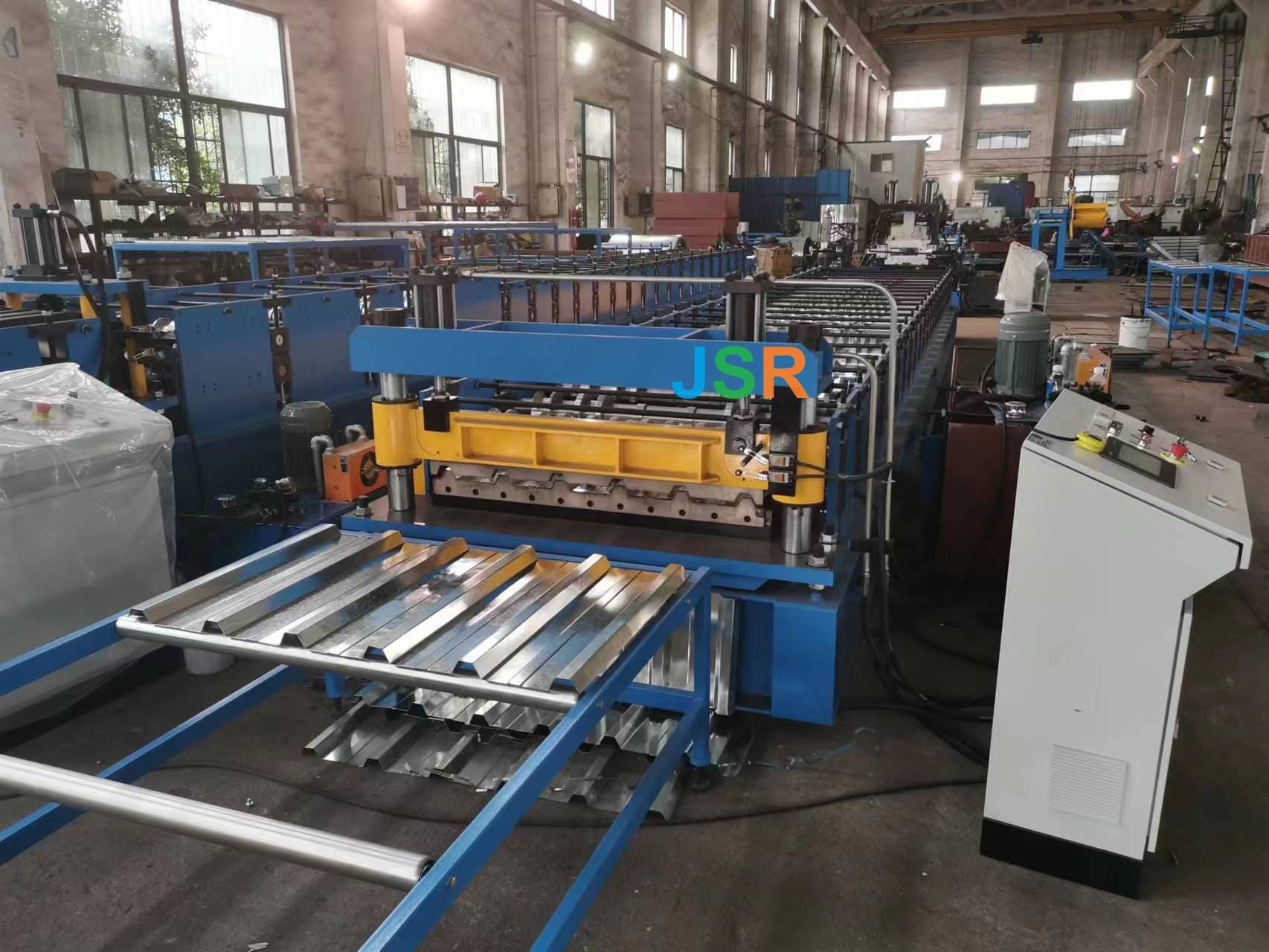

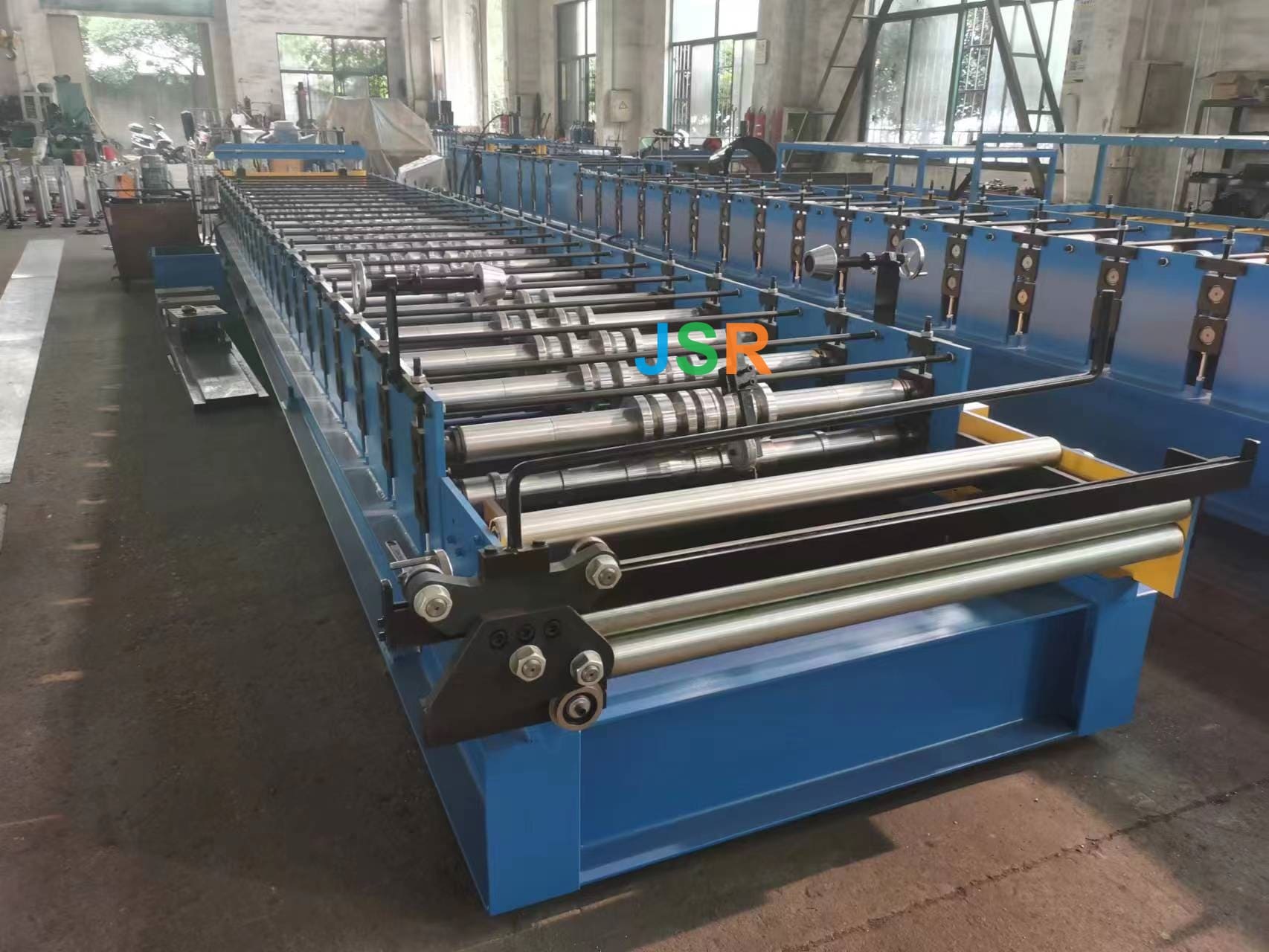

Roofing Sheets Machine is popular in BENIN, the same roofing sheets machine as BAMACO ALUMINIUM CO.,LTD automatically work, easy operation and long life use with mitsubishi control system. the roll former weright about 10 ton with 22 roller stations.
roofing sheet machine include 5 ton manual decoiler, machine with post cut, hydraulic station, plc controller, run out table.
machine with 22 roller station, siemens plc and screen, yasakawa converter,
machine will automatically work.
hydraulic decoiler and automatical stacker are available for higher automaticalied , fly cut for higher speed.
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 9000kgs |
| Size | About 11m x 1.7m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | PPGI and PPGL Coils |
| Thickness | 0.3-0.7mm |
| Coil width | 1200mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 22 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 7.5kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
APPLICATION
JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced
Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut – run out
