Roofing , CZ Purlin ,angle bar Roll Forming Machine to Ghana Sep.9.2026
roofing panel machine, non stop to cut, working speed about 35m/min

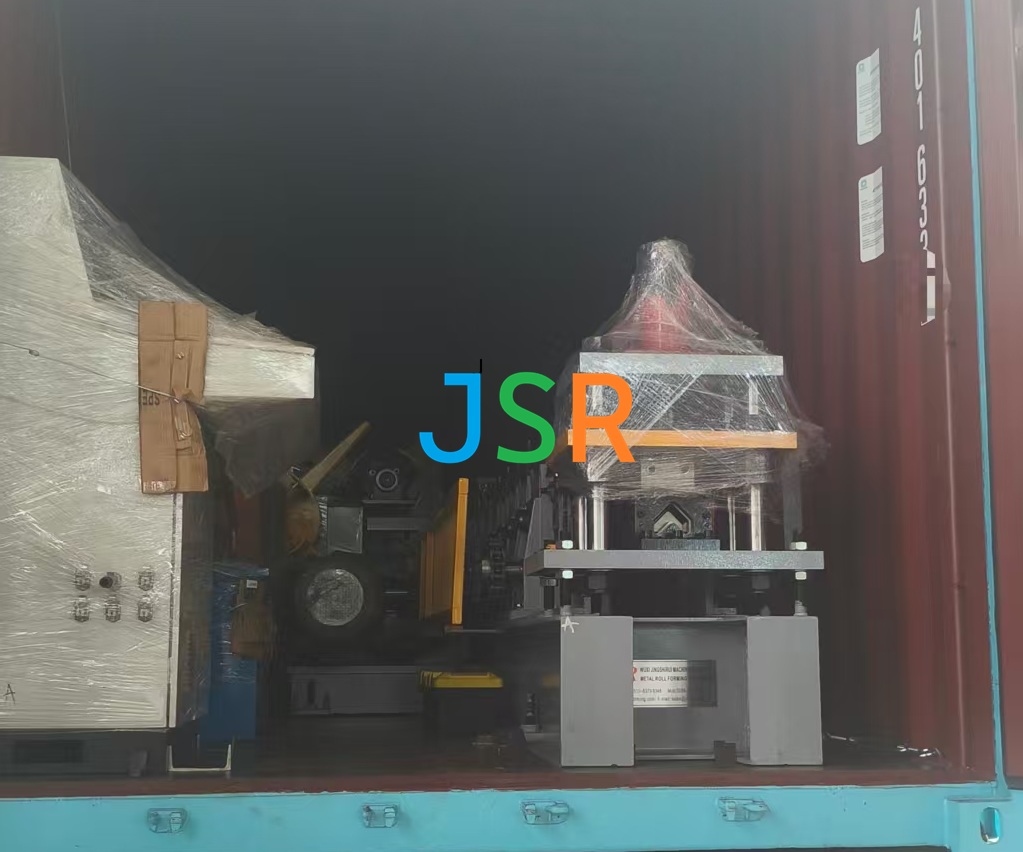

angle iron machine

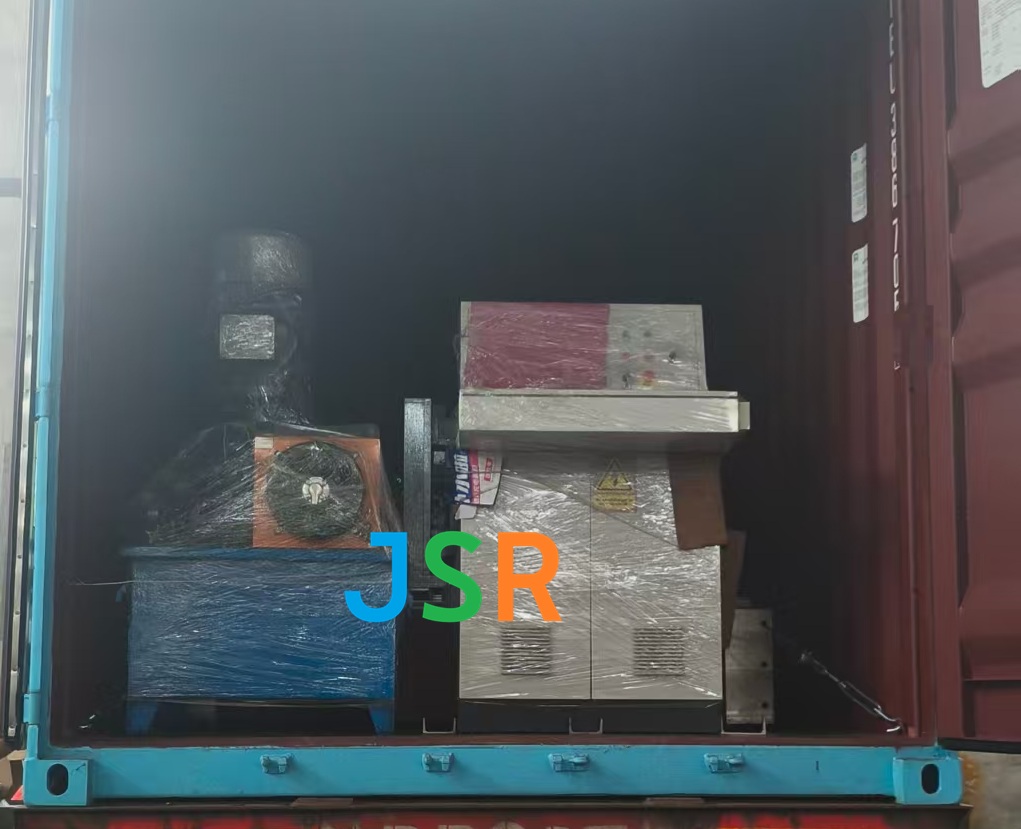

cz purlin machine, machine can make max. thickness 4mm and max. size 400mm
Machine Specifications
Weight
About 26000kgs
Size
About 20m x 2m x 1.8m (length x width x height)
Color
Main color: blue
Warning color: yellow
Suitable Raw Material
Material
Galvanized Steel Coils
Thickness
1.5-4mm
Coil width
According to products size
Yield strength
235Mpa
Main Technical Parameters
Quantity of forming rollers stations
17
Diameter of forming rollers shafts
75mm
Roll Forming Speed
10-15m/min
Production Speed
4-6m/min
Forming rollers material
Gcr15 mould steel, with quenched treatment
Cutter material
CR12 mould steel, with quenched treatment
Controlling system
PLC and Converter
Electric power requirement
Main motor power: 18.5kw x2
Hydraulic unit motor power: 5.5kw
Electric voltage
According to customers requirement
