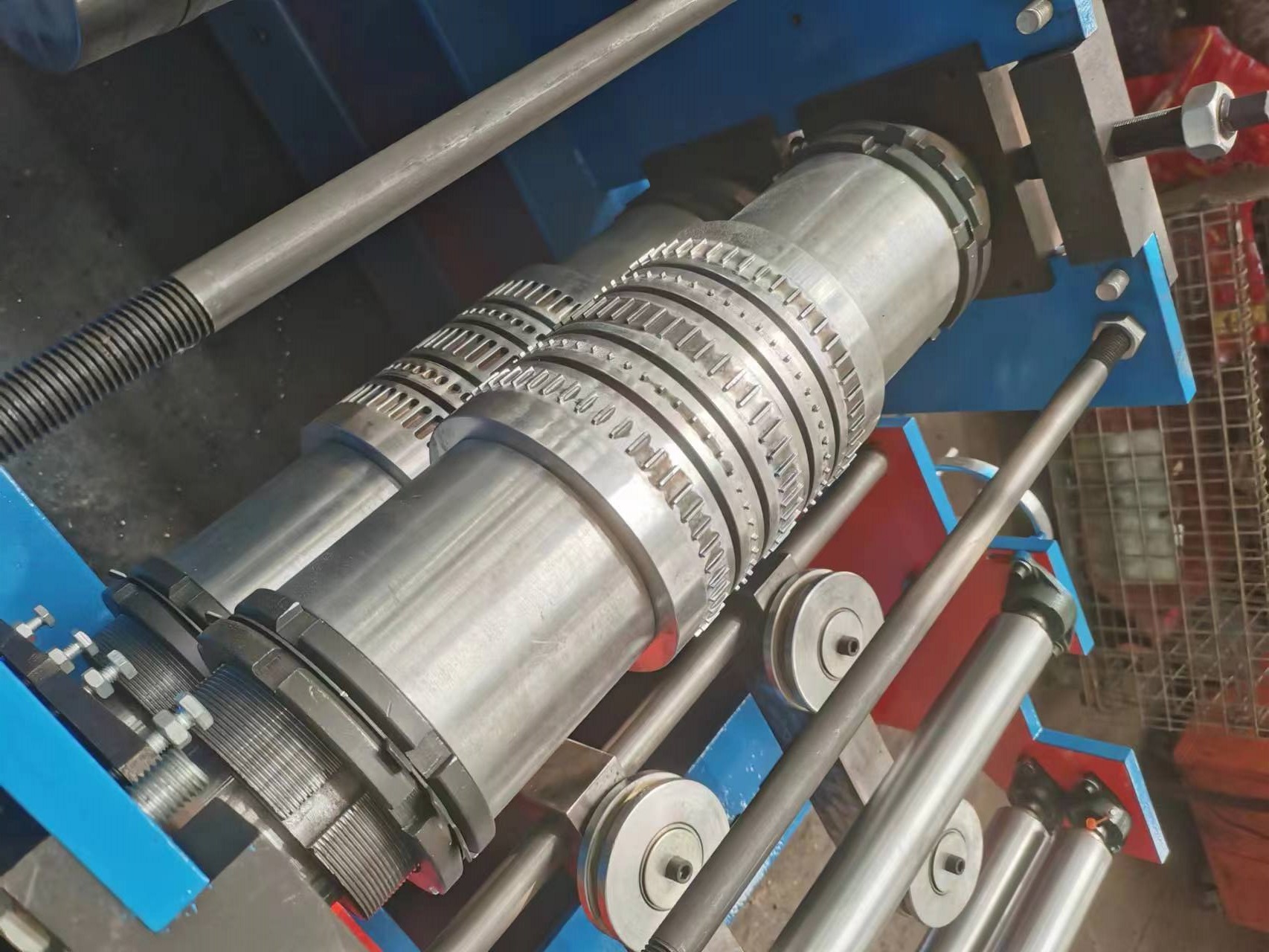

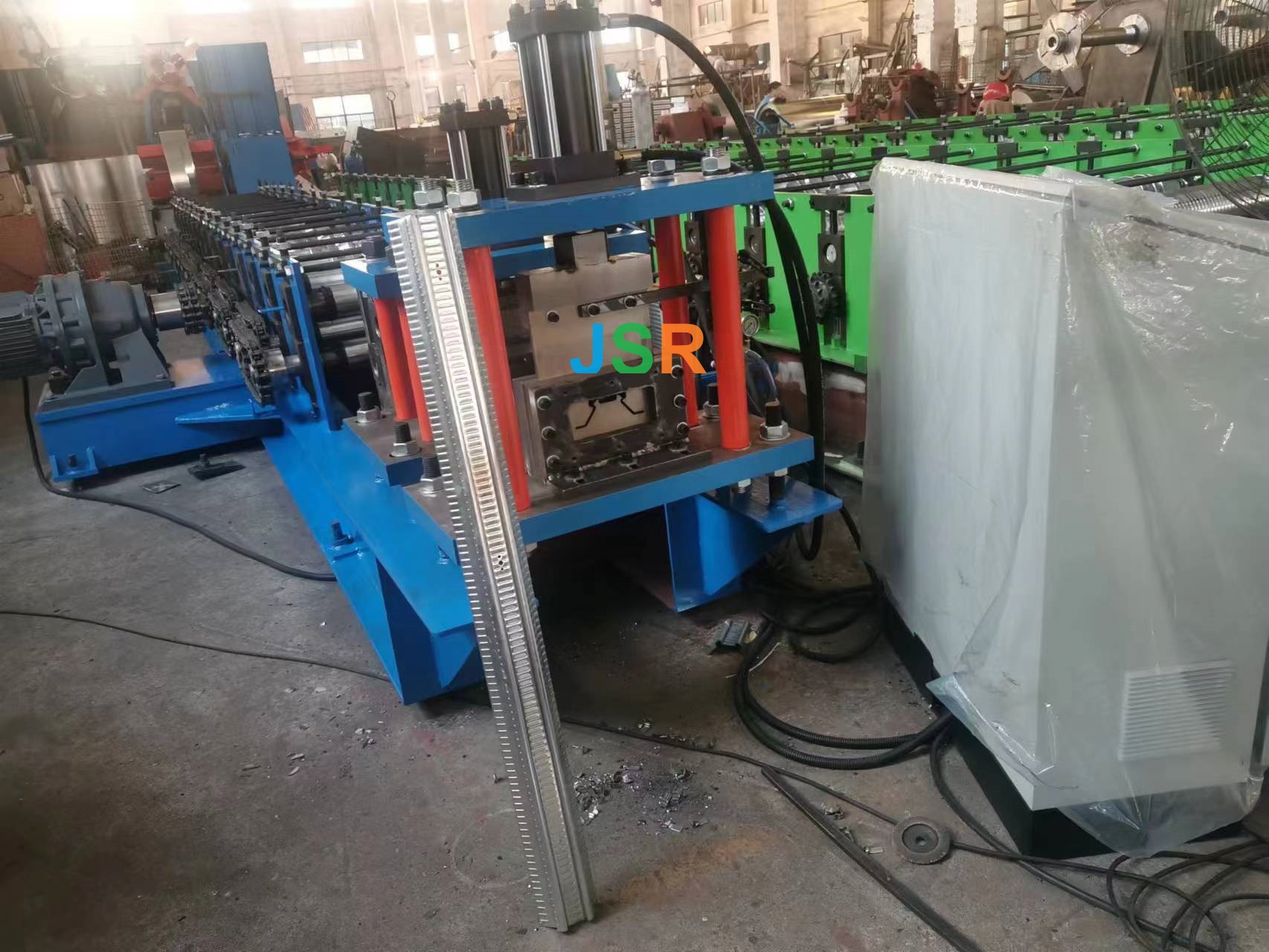

roof batten machine make profiles embossed to improve strength, punch holes for easy screws
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 5500kgs |
| Size | About 8m x 1.6m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | about 14 |
| Diameter of forming rollers shafts | 75mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | GR15 with quench treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: about11kw |
| Hydraulic unit motor power: about 4kw | |
| Electric voltage | According to customer’s requirement |
